1. CK Series China CNC Single Turret Vertical Lathe has adopted the advanced design and manufacturing technology both at home and abroad,implement the latest national accuracy standards, equipped advanced function units. The machine has adopted the advanced design and manufacturing technology both at home and abroad, implement the latest national accuracy standards, equipped advanced function units. A strong cutting of Structure Performance has been achieved.
2. The CNC Single Turret Vertical Lathe are high quality products. The highest technology available today comes with decades of experience in every type of machining and production needs.
The high structural rigidity of the machines, with the technical solutions guarantee the uniqueness of the machines.
3. The structure of whole working table is hot symmetrical, main gear shifting mechanism was fixed on the base of working table and the bed of lathe. Table radial centering by high-precision double-line short cylindrical roller bearing, to ensure the accuracy of rotation and improve the carrying capacity of the lathe.
4. Smooth movement, high transmission efficiency, and good accuracy retention. X-axis and Z-axis guide rails, ball screws and bearings are all lubricated regularly and quantitatively.
5. Hydraulic system and automatic lubricating system components use superior-quality product with domestic permit or collaborative product, quality is reliable.
6. The spindle is changed to a short-axis structure, the structure is more reasonable;
7. The working table adopts pure static pressure guide rail, which is supplied by constant current with synchronous shunt motor. It is equipped with oil film floating detection device, which runs smoothly, reliably and with higher accuracy.
8. The modified and upgraded gearbox eliminates the tooth-breaking phenomenon and is stable and reliable.
9. Independent electrical cabinet and hydraulic station, the cantilever button station with adjustable position and angle will make the operation extremely flexible and convenient for maintenance.
10. High rigid thermo-symmetrical gantry structure for superb stability even at severe cutting conditions heavily ribbed base and table with hydrostatic axial bearing for big load capability
Modular design easily to be customized to suit customer's diverse machining needs.
Advantage:
Our company adopts the international advanced resin sand casting process. The castings are made of HT300 and HT250 and then tempered twice. The castings are tempered once before processing. The castings are subjected to secondary tempering after rough machining. The tempering is tempered to the greatest extent in the tempering kiln. Reduce the internal stress of the casting, and perform vibration aging before finishing to prevent the casting from deforming, thereby improving the accuracy of the machine tool.
Parameter
The vertical lathe can be equipped with C axis for milling and boring function.
Name | Unit | CK5112 | CK5116 | CK5123 | CK5125 | CK5131 |
Max. turning diameter of vertical tool post | mm | 1250 | 1600 | 2300 | 2500 | 3150 |
Working table diameter | mm | 1000 | 1400 | 2000 | 2200 | 2500 |
Max. height of work-piece | mm | 1000 | 1000 | 1250 | 1300 | 1400 |
Max. weight of work-piece | t | 3 | 5 | 8 | 10 | 10 |
Working table range of rotation speed | r/min | 6.3～200 | 5～160 | 3.2～100 | 2～62 | 2～62 |
Working table step of rotation speed | step | stepless | stepless | stepless | stepless | stepless |
Max. cutting force of vertical tool post | KN | 20 | 25 | 25 | 25 | 34 |
Horizontal travel of vertical tool post | mm | 700 | 915 | 1210 | 1310 | 1610 |
Vertical travel of vertical tool post | mm | 650 | 800/1000 | 800/1000 | 800/1000 | 800/1000 |
Tool bar section size | mm | 30×40 | 30×40 | 30×40 | 30×40 | 40×50 |
Power of main motor | KW | 22 | 30 | 30 | 37 | 45 |
Weight of machine(approx.) | t | 9 | 12.1 | 19.8 | 21.8 | 30 |
Dimensions of machine (LxWxH) | mm | 2280×2550×3400 | 2662×2800×3550 | 3235×3240×3910 | 3380×3360×4000 | 3450×3940×4200 |
Product details of CNC Single Turret Vertical Lathe Machine
The key parts which is used for 20 years, they match very well.
Low noise while working
The CNC Single Turret Vertical Lathe is good at machining tougher work and better.

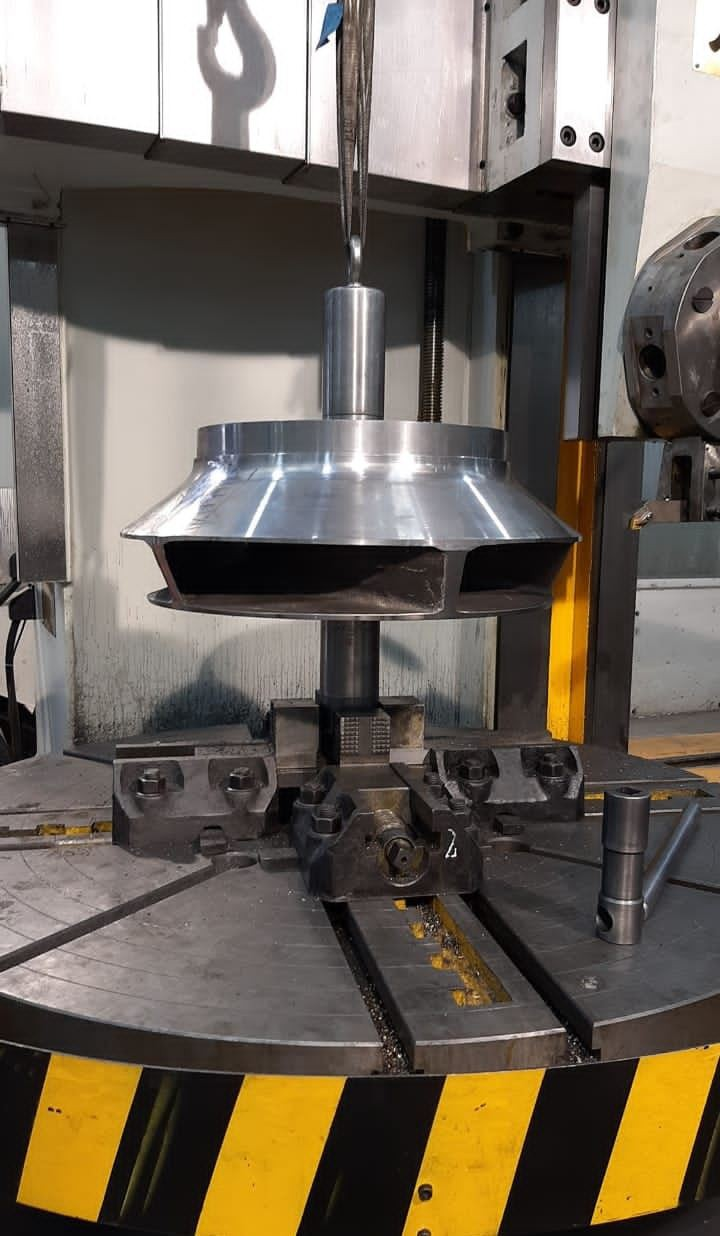

We use our vertical lathe to machine train wheel, which require high roundness and smoothness.
Serious and professional Testing
Package and Shipping
Manufacturing Facilities...
