Machining diameter: 1250mm-3150mm Mchining height:1000mm-1400mm Parameter can be customized
| Quantity: | |
|---|---|

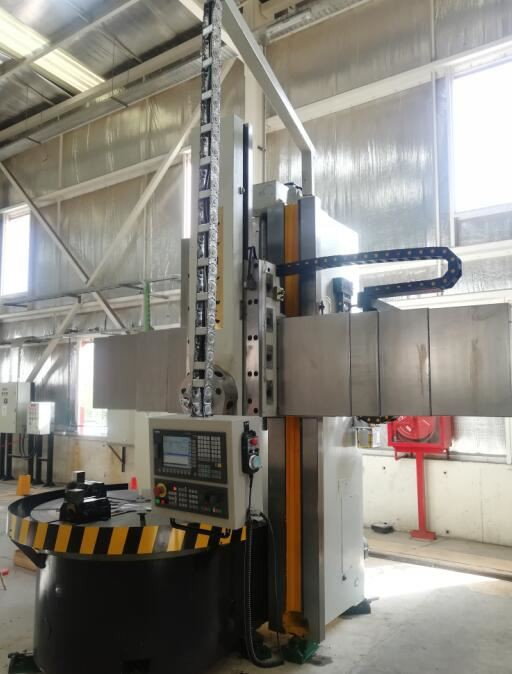

Introduction of CNC Single Column Vertical Lathe
1. High quality resin sand cast iron parts ensure the machine rigidity and high accuracy
2. The worktable diameter 1000mm, max turning diameter is 1250mm, load capacity: 3.2 tons. Max workpeice height is 1000mm
3. The tool post horizontal guideway with telescopic cover to protect the ball screw and guideway
4. Siemens 808D/FANUC controller
5. Main motor
6. Spindle encoder
7. 5 position manual turret
8. Electrical cabinet with air conditioner
9. Automatic lubrication system
10. Working light etc
11. Leveling bolts and pads
Products parameters
Parameter can be customized
Name | Unit | CK5112 | CK5116 | CK5123 | CK5125 | CK5131 |
Max. turning diameter of vertical tool post | mm | 1250 | 1600 | 2300 | 2500 | 3150 |
Working table diameter | mm | 1000 | 1400 | 2000 | 2200 | 2500 |
Max. height of work-piece | mm | 1000 | 1000 | 1250 | 1300 | 1400 |
Max. weight of work-piece | t | 3 | 5 | 8 | 10 | 10 |
Working table range of rotation speed | r/min | 6.3～200 | 5～160 | 3.2～100 | 2～62 | 2～62 |
Working table step of rotation speed | step | stepless | stepless | stepless | stepless | stepless |
Max. cutting force of vertical tool post | KN | 20 | 25 | 25 | 25 | 34 |
Horizontal travel of vertical tool post | mm | 700 | 915 | 1210 | 1310 | 1610 |
Vertical travel of vertical tool post | mm | 650 | 800/1000 | 800/1000 | 800/1000 | 800/1000 |
Tool bar section size | mm | 30×40 | 30×40 | 30×40 | 30×40 | 40×50 |
Power of main motor | KW | 22 | 30 | 30 | 37 | 45 |
Weight of machine(approx.) | t | 9 | 12.1 | 19.8 | 21.8 | 30 |
Dimensions of machine (LxWxH) | mm | 2280×2550×3400 | 2662×2800×3550 | 3235×3240×3910 | 3380×3360×4000 | 3450×3940×4200 |
Products details

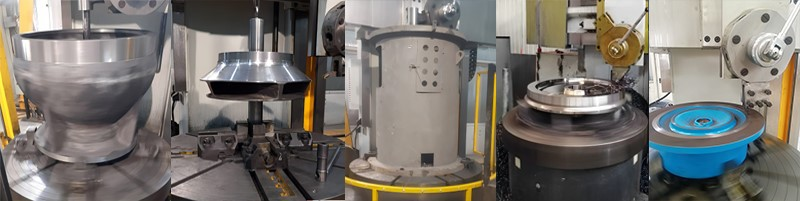

Work piece
Customers of CNC Single Column Vertical Lathe: Siemens, ITT...

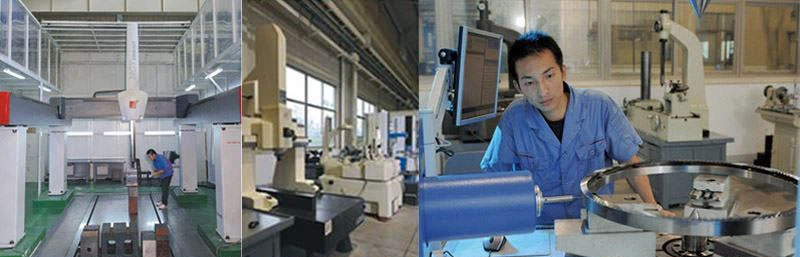

Serious and professional Testing
Warranty from CNC Single Column Vertical Lathe manufacturer
1. The warranty period is 1 year
In the warranty period, Every parts of the vertical lathe is warranted. if some parts need to be replaced due to the quality of product, the company is responsible for free replacement. In the warranty period, if it is not due to product quality of the Vertical lathe, and need company send a technician to fix the Vertical lathes, the appropriate fees should be collected.
2. Preferential spare parts and technical Services will be provided
3. Over warranty :
we delivery the component to nearest departure port for free. Customer just pay for the cost price of the components.
