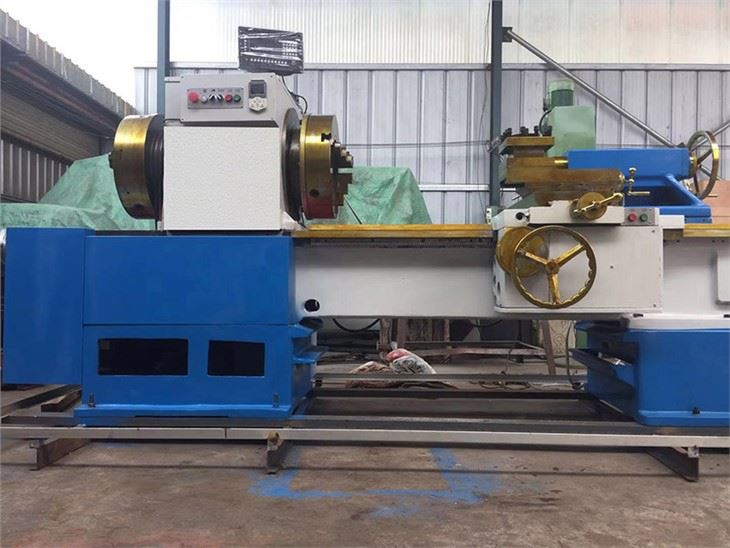

Drive Shaft Lathe Machines

It is easy to operate, X, Z feed is done by manual. It is suitable for small workshop. It is suitable for bigger diameter and longer drive shaft. It is much easier maintenance, because of gears in headstock. It is a deal Manual Drive Shaft Lathe born with machining drive shaft. It can be equipped with coolant pump, DRO, working light.

Quantity:




Inquire Add to Basket

Product Description

Feature of Drive Shaft Lathe Machines:

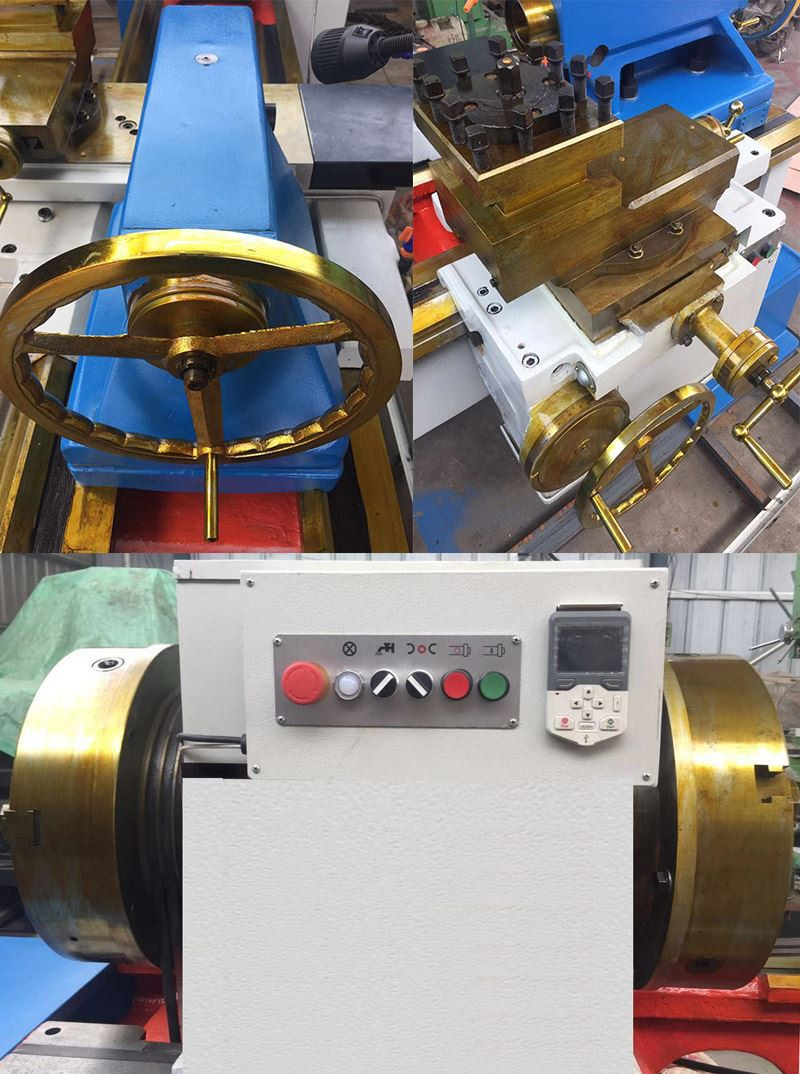

Independent Spindle with steady support
Dual chuck with big diameter
DRO, Coolant device, working light is standard configuration
Bigger spindle bore and longer spindle for longer shaft.
HRC 52 hardened guideway guarantee working steady
X, Z feeding is driven by hand
OEM design according to customer's needs
High precision can be guaranteed.
High concentricity

Parameter of Drive Shaft Lathe Machines

Item	Unit	Q1325G	Q1313G
Swing over bed	mm	630	500/400
Swing over carriage	mm	350	330/230
Guideway width	mm	550	360
Spindle bore	mm	250	130
Max. OD of workpiece	mm	245	125
Max. Turning length	mm	As request	As request
Max. Working speed	mm	15-450	15-450
Toolpost position		4 position	4 position
Guideway hardness		HRC52	HRC52
Main spindle power	kW	7.5kW	5.5kW
Chuck O.D.	mm	500	320
X/Z feeding		Manual feeding	Manual feeding
X travel	mm	350	320/180
Z Travel	mm	1000+	1000+
