Introduction of Oil Country Lathe Machine 1. Oil Country Lathe Machine is a famous product line for oil & gas fielding and metal industry. It could be big bore lathe of double chucks at both sides of the headstock, or it could have large swing for big workpiece. Big bore lathe is very good...
| Quantity: | |
|---|---|

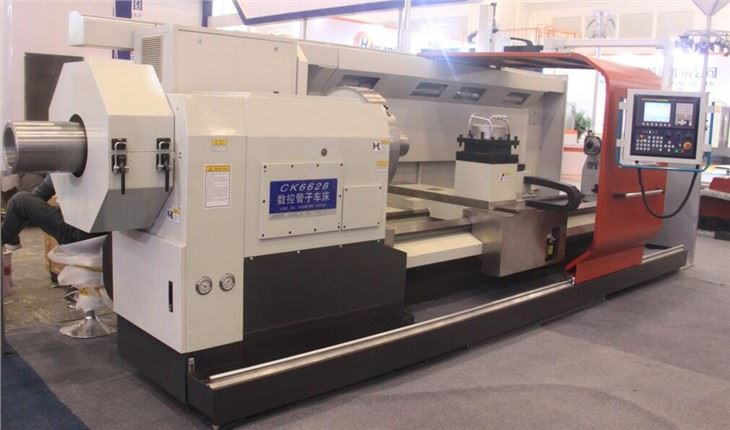

Introduction of Oil Country Lathe Machine
Oil Country Lathe Machine is mainly designed for internal and external pipe threads including metric,inch,module,DP and tape threads, as well as all the common function of normal lathe such as processing the inner bore and end face of shafts and disks. This series lathe machine is widely used in industries including petroleum exploiting, minerals mining, chemical piping and geological prospecting, it is high efficiency equipment in processing and repairing drilling pipe, drilling rod, thread coupling and so on.
Features of Oil Country Lathe Machine1.Big spindle bore and double chuck to ensure process big diameter pipe
2.One-piece casting bed adopts high strength iron to ensure rigidity and precision
3.Ultrasonic frequency quenched guide-ways ensure good wear-resistance
4.Carriage and guide way contact surface use Turcite B to maintain accuracy
Parameter of Oil Country Lathe Machine
Item | Unit | CK6628 | CK6636 | CK6646 | 6663 |
Swing over bed | mm | 1000 | 1000 | 1200 | 1400 |
Swing over carriage | mm | 650 | 640 | 800 | 1100 |
Spindle Bore | mm | 280 | 360 | 460 | 630 |
Max. Load between center | Ton | 4 | 6 | 6 | 10 |
Bed Width | mm | 600 | 755 | 970 | 970 |
Spindle speed | rpm | 5-500 | 3.15-315 | 3.15-315 | 2-200 |
Spindle motor | kW | 18.5 | 22 | 30 | 37 |
Machine weight of 3 meters | Kg | 6800 | 12000 | 14000 | 17000 |
Machine weightof 3 meters | LXWXH | 5750X1650X1550 | 6300X1650X1700 | 6300X2550X1850 | 6300X2875X1850 |
