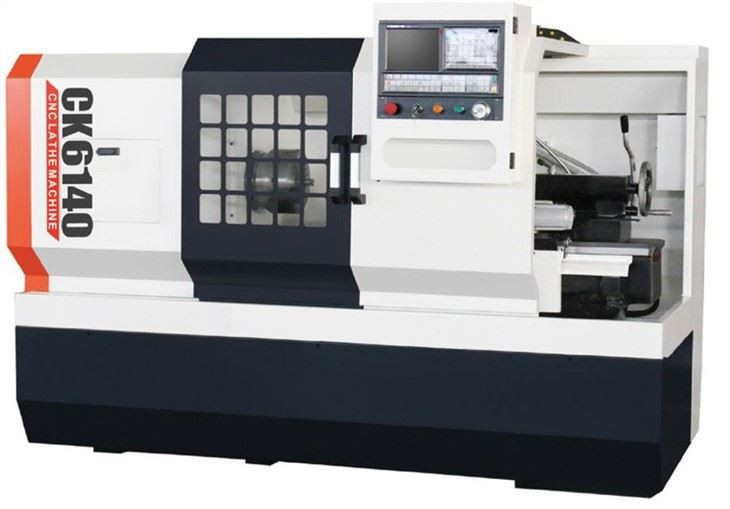

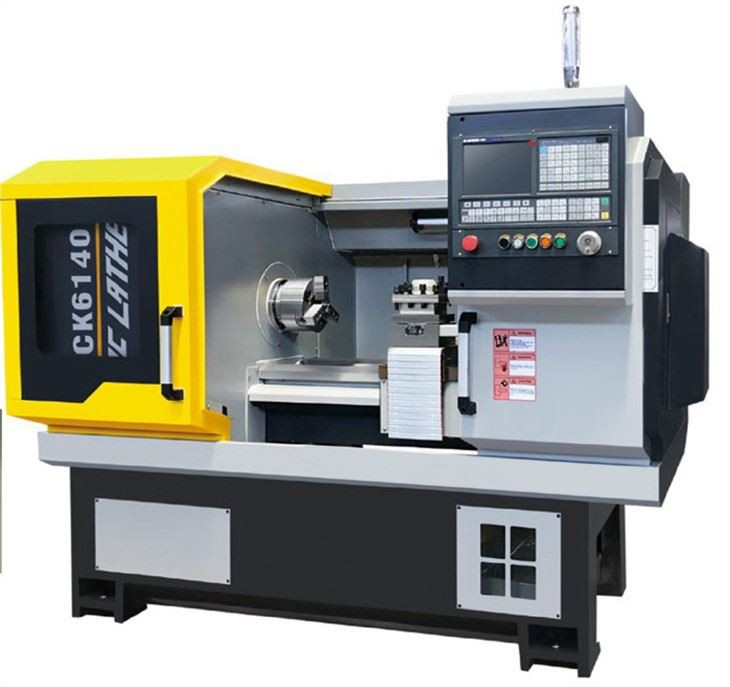

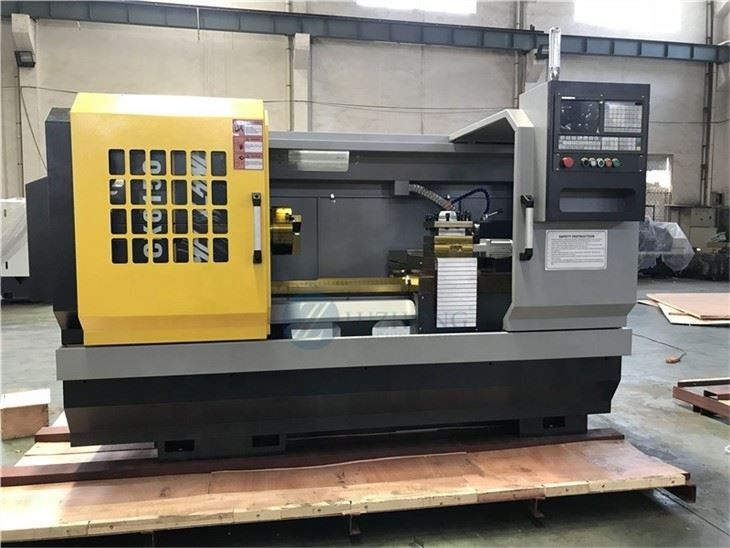

NC Lathe Machine

Including Model CK6150V,CK6150D,CK6150 CK6140V,CK6140D,CK6140

Quantity:
Inquire Add to Basket

facebook sharing button
wechat sharing button
linkedin sharing button
sharethis sharing button

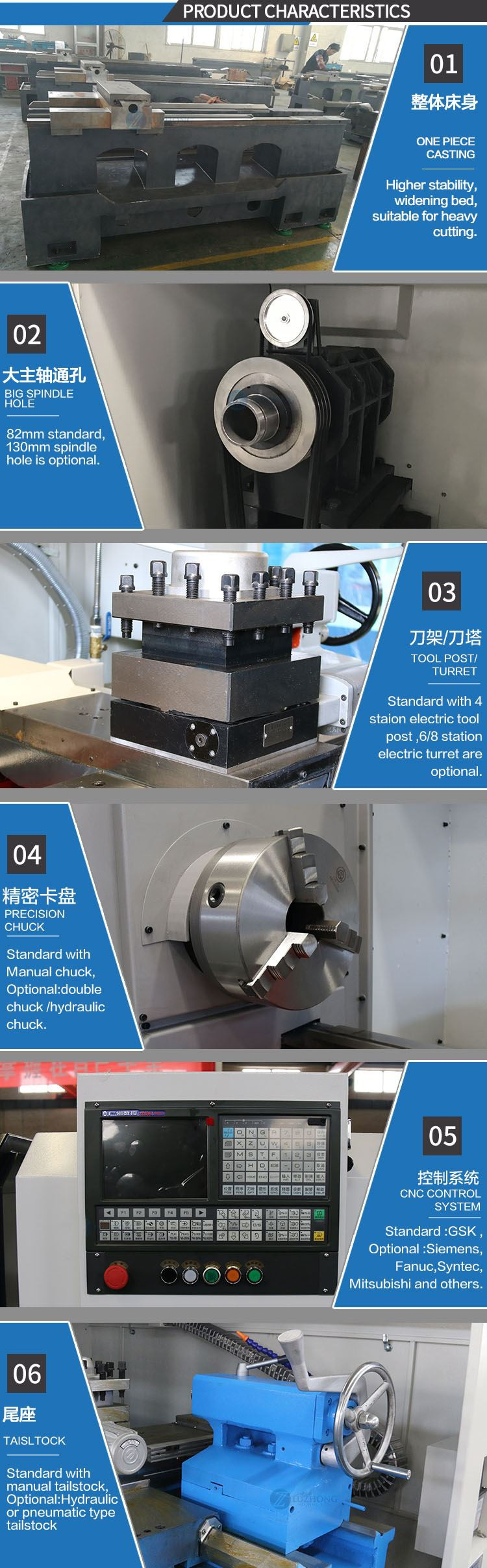

Introduction of NC Lathe Machine

1. Adopting high strength, high quality cast iron made by resin sand process and aging treatments.
2. Adopting high precision rolling bearings lubricated with grease.
3. Centralized lubrication.
4. Full enclosure with safety switch and door interlock.

5. Movable control panel is convenient for operation and allows easy access.

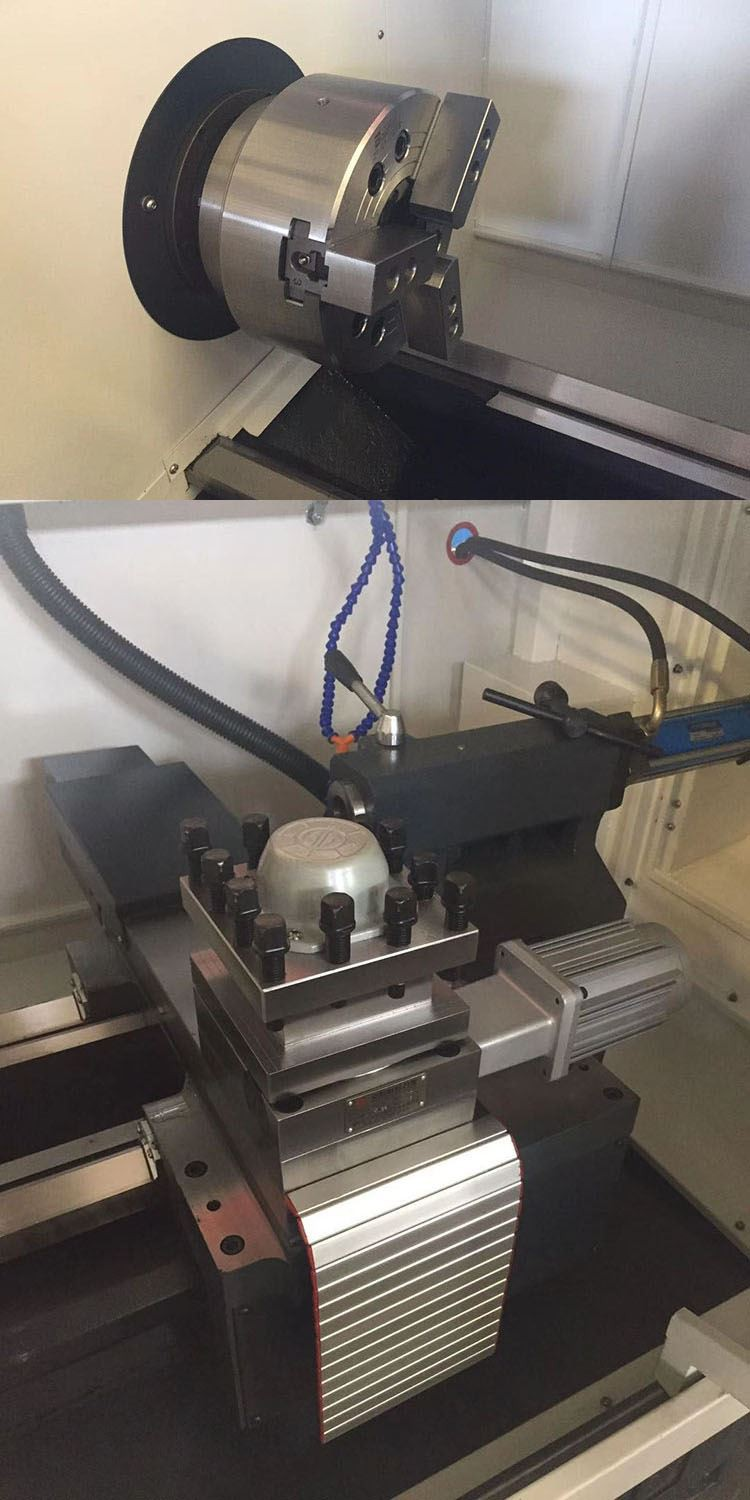

Configuration of NC Lathe Machine

Standard Configuration

Option Configuration

Guideway width: 400mm

Hydraulic chuck

One piece casting

Electric turret 6/8 position

Independent spindle

Hydraulic tailstock

3-jaw manual chuck

Double chuck as optional

Electric 4 position

Manual 3 steps as optional

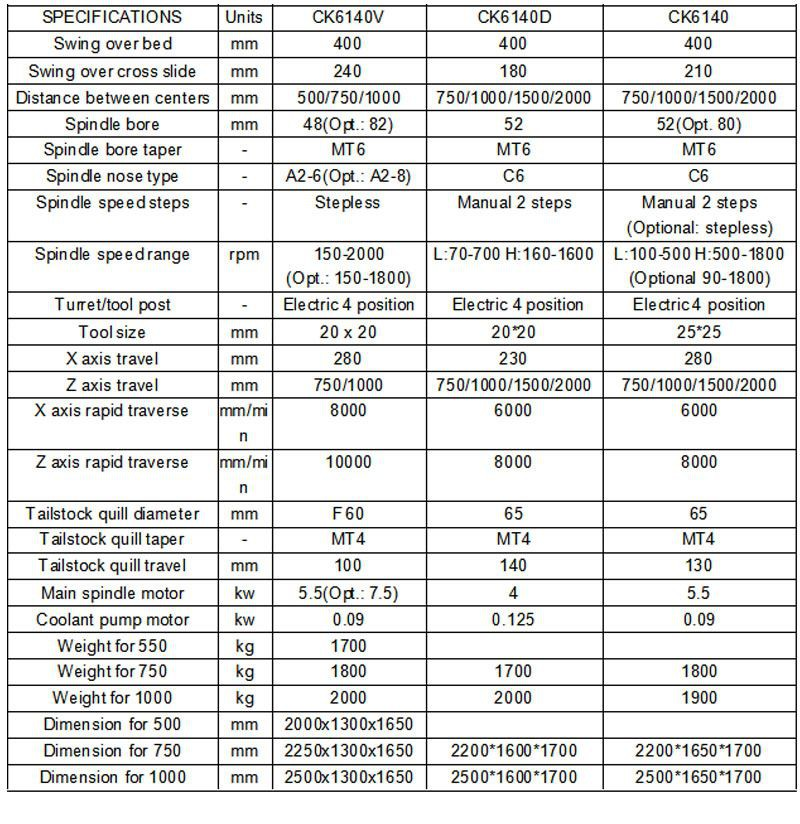

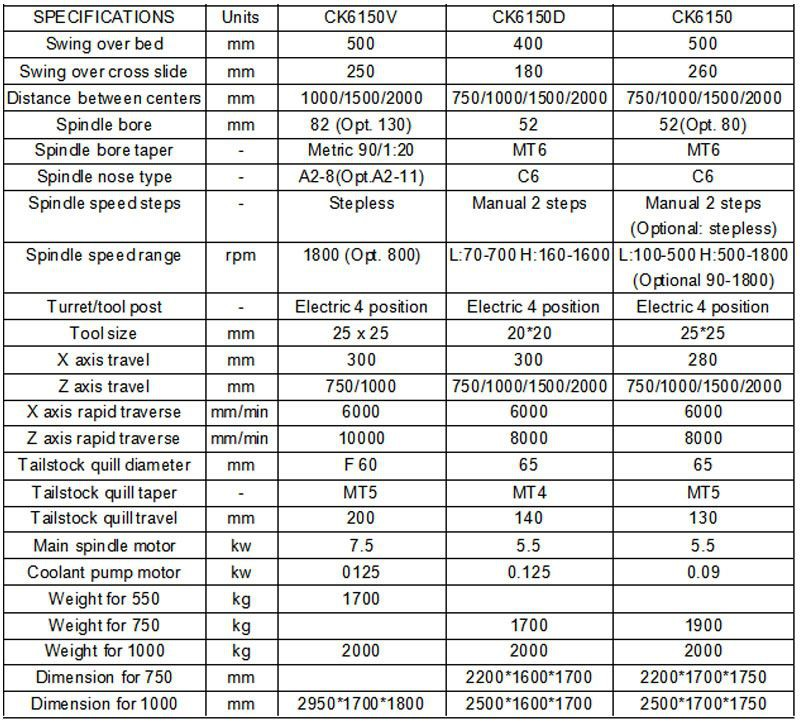

Specification of CNC Automatic Horizontal Lathe---One piece casting

-3

-2

Please click for other modelsHfdb26cac9b554f3088fb7ed1b67b84ca8hydraulic

Hc4cde0df730744cfbbe1f0e35f5854afk (1)
