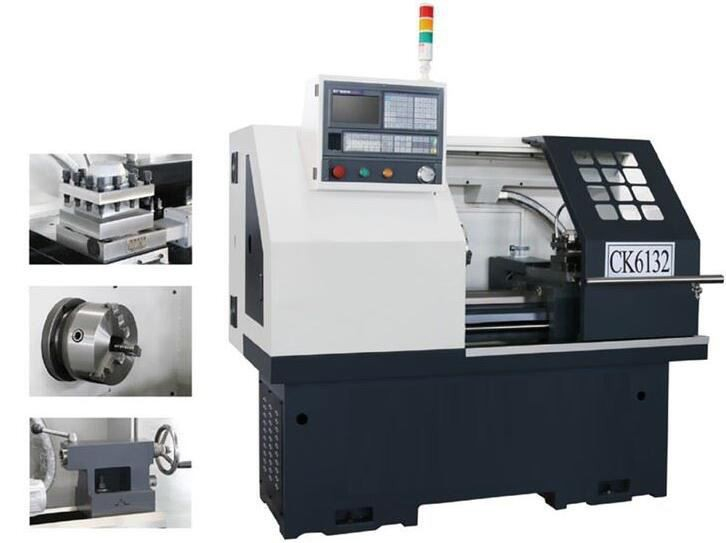

CK6132 Small CNC Lathe

SPECIFICATIONS

Units

CK6130

CK6132

CQK6136

Swing over bed

mm

300

320

360

Swing over cross slide

mm

100

110

150

Distance between centers

mm

500/700

500/700

500/700

Spindle bore

mm

60

60

60

Spindle bore taper

-

MT6

MT6

MT6

Spindle nose type

-

A2-5

A2-5

A2-5

Spindle speed steps

-

无级Stepless

无级Stepless

无级Stepless

Spindle speed range

rpm

100-2000

100-2000

100-2000

Tool size

mm

20*20

20*20

20*20

X axis travel

mm

160

170

180

Z axis travel

mm

500/700

500/700

500/700

X axis rapid traverse

mm/min

6000

6000

6000

Z axis rapid traverse

mm/min

8000

8000

8000

Tailstock quill diameter

mm

50

50

50

Tailstock quill taper

-

MT4

MT4

MT4

Tailstock quill travel

mm

90

90

90

Main motor power

kw

4

4

4

Coolant motor power

kw

0.09

0.09

0.09

Machine weight

kg

1150

1200

1250

Overall dimension

mm

1900*1200*1700

1900*1200*1700

1900/2100*1200*1700
