Including Model CK6150V,CK6150D,CK6150 CK6140V,CK6140D,CK6140
| Quantity: | |
|---|---|

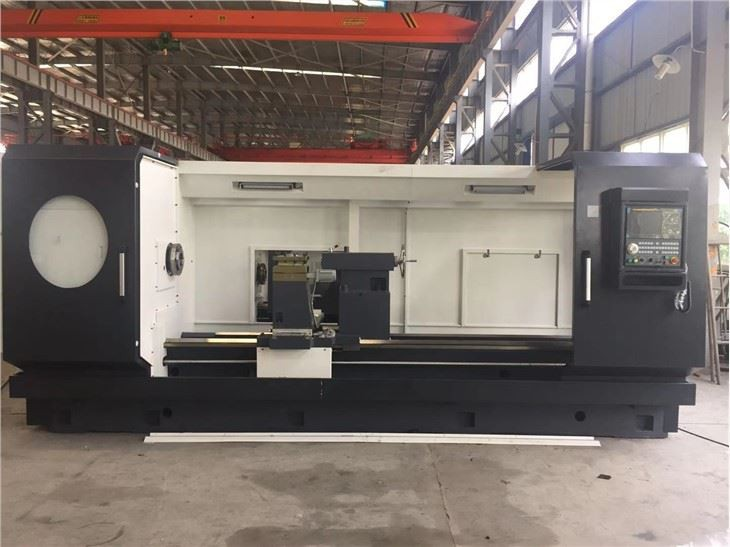

Introduction of Horizontal CNC Lathe
CK Horizontal CNC Lathe is used for electrical appliances, instrumentation equipment industry, automobile, motorcycle accessories, fastener bearings, photographic equipment, film machinery, hardware watches and clocks, glasses, cultural and educational supplies, electrical machinery, valves, gas pipe fittings and other high-precision complex parts manufacturing, Horizontal CNC Lathe precision maching is the hardware and mechanical processing industry the most efficient and efficient equipment.
Specification of Horizontal CNC Lathe
Item | unit | CK6180 | CK61100 | CK61125 | |
Swing over bed | mm | 800 | 1000 | 1250 | |
Swing over carriage | mm | 400 | 650 | 850 | |
Max. workpiece length | mm | ||||
Guideway width | mm | 600 | 600 | 600 | |
Spindle taper | mm | 120 1:120 | 120 1:120 | 120 1:120 | |
Spindle speed | r/min | 70-260. 25-100, 220-850 | 70-260. 25-100, 220-850 | 70-260. 25-100, 220-850 | |
Spindle end structure | C11 | C11 | C11 | ||
Spindle bore | mm | 100 | 100 | 100 | |
Main motor power ( frequency conversion) | kW | 11 | 11 | 11 | |
Main transmission | Frequency conversion Steplss speed | ||||
Tool post travel | mm | X: 500, Z: 1000-5000 | X: 500, Z: 1000-5000 | X: 500, Z: 1000-5000 | |
Ballscrew diameter x pitch | mm | X: 3206, Z:5010-8312 | X: 3206, Z:5010-8312 | X: 3206, Z:5010-8312 | |
Rapid feeding speed | mm/min | X:4000. Z:6000mm | X:4000. Z:6000mm | X:4000. Z:6000mm | |
Position precision | mm | X:0.012, Z0.032 | X:0.012, Z0.032 | X:0.012, Z0.032 | |
Re positioning precision | mm | X:0.006, Z:0.010 | X:0.006, Z:0.010 | X:0.006, Z:0.010 | |
Machining preicision | IT6-IT7 | IT6-IT7 | IT6-IT7 | ||
Roughness | Ra 1.6 | Ra 1.6 | Ra 1.6 | ||
Standard configuration | Vertical four postion electric tool post | Vertical four postion electric tool post | Vertical four postion electric tool post | ||
Optional congfiguration | Vertical six postion electric tool post | Vertical six postion electric tool post | Vertical six postion electric tool post | ||
Re position of tool post | mm | 0.005 | 0.005 | 0.005 | |
Tool section | mm | 32X32 | 32X32 | 32X32 | |
Tailstock quill diameter | mm | 100 | 100 | 100 | |
Tailstock quill travel | mm | 250 | 250 | 250 | |
Tailstock taper | Morse | 6# | 6# | 6# | |
CNC system | Siemens, FANUC, GSK | Siemens, FANUC, GSK | Siemens, FANUC, GSK | ||
Motor Torque | Nm | X:10, Z:15 | X:10, Z:15 | X:10, Z:15 | |
Chuck diameter(three jaw | mm | 400 | 400 | 400 | |

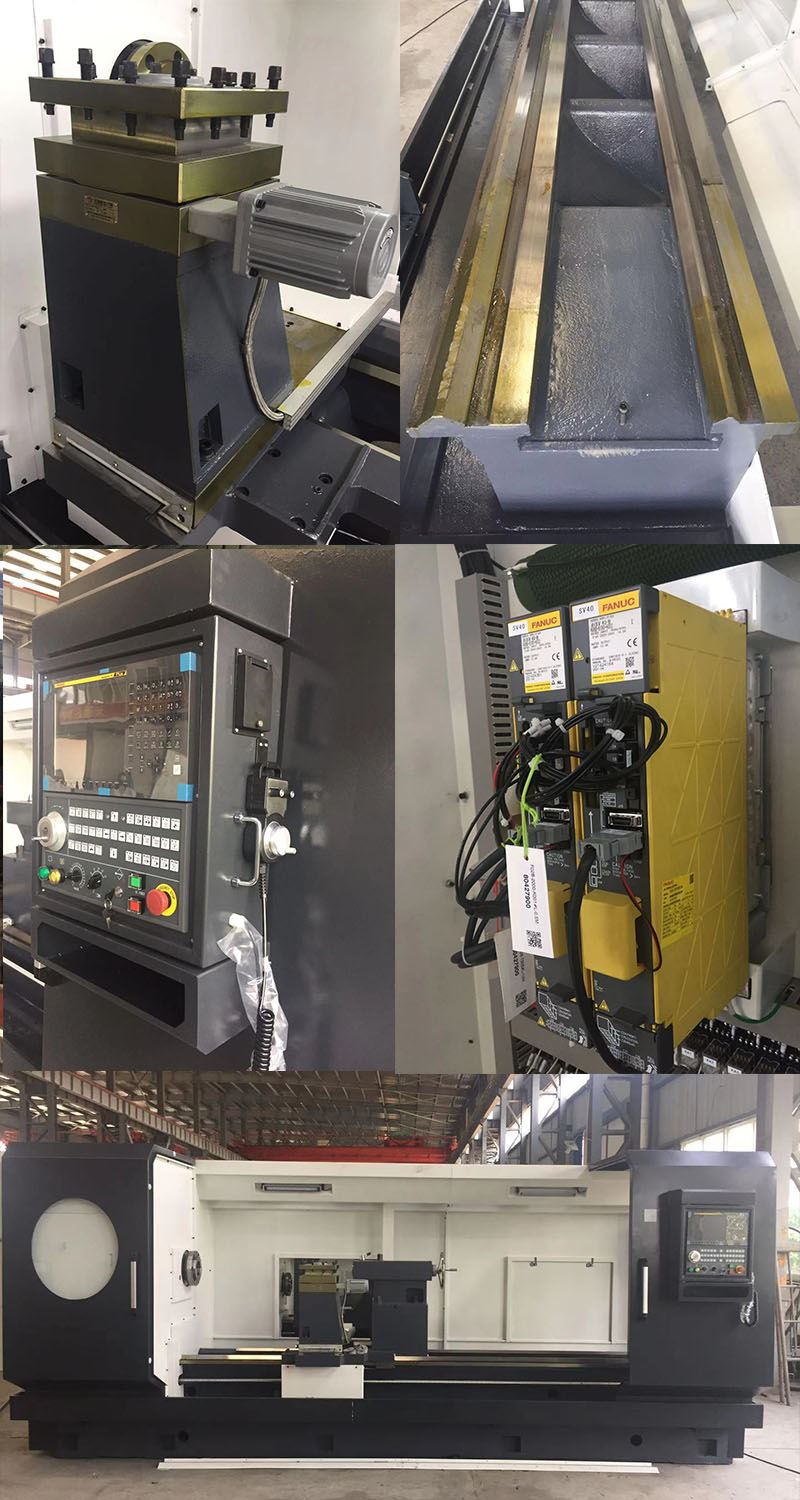

Details
