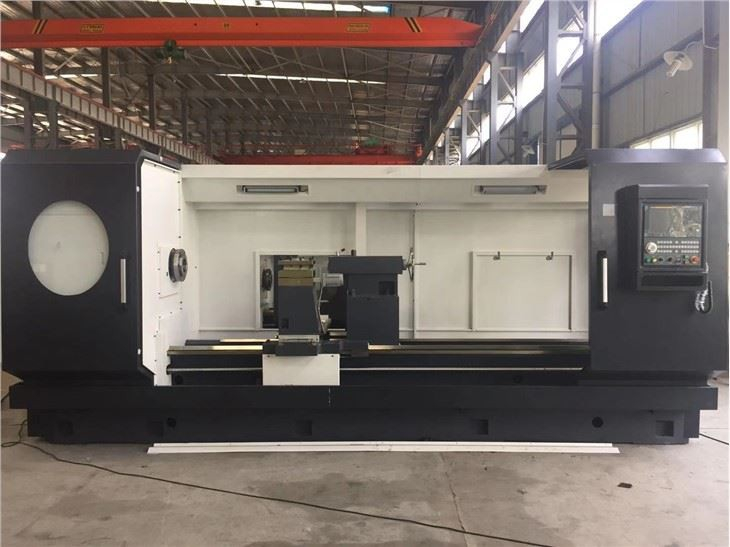

Introduction of CNC Metal Lathe Machine:
CK series CNC Metal Lathe Machine is an economical ,practical type machine tools iwth good quality . The machine has a very wide use which is suitable or internal and external turning ,tapering,circular arc ,thread ,boring ,reaming of axle and disk workpiece .It also can achieve non-circular curve machining ,You can choose the CNC system and optional accessories according to your requirement .
Feature of CNC Metal Lathe Machine：
Big torque ,high precision spindle
Hydraulic shift ,easy operate
Z axis feed is directly connected which has high transmission accuracy and high positioning accuracy
Vertical 4 position electric toolpost with high positioning accuracy
Adavantage:
Our company adopts the international advanced resin sand casting process. The castings are made of HT300, and then tempered twice. The castings are tempered once before processing. The castings are subjected to secondary tempering after rough machining. The tempering is tempered to the greatest extent in the tempering kiln. Reduce the internal stress of the casting, and perform vibration aging before finishing to prevent the casting from deforming, thereby improving the accuracy of the machine tool.
Configuration of CNC Metal Lathe Machine
Standard Configuration | Option Configuration |
Guideway width: 400mm | Hydraulic chuck |
One piece casting | Electric turret 6/8 position |
Independent spindle | Hydraulic tailstock |
3-jaw manual chuck | Double chuck as optional |
Electric 4 position | Manual 3 steps as optional |
Specification of CNC Metal Lathe Machine:---One piece casting
Item | unit | CK6150 | CK6163 | CK6180 |
Swing over bed | mm | 300 | 630 | 800 |
Swing over carriage | mm | 650 | 335 | 400 |
Max. workpiece length | mm | 1000/1500/2000/3000/4000/5000/6000/7000/8000/9000/10000 | ||
Guideway width | mm | 420 | 550 | 600 |
Spindle taper | mm | 90, 1:120 | 120 1:120 | 120 1:120 |
Spindle speed | r/min | 50-1600 | 70-260. 25-100, 220-850 | 70-260. 25-100, 220-850 |
Spindle end structure | C8 | C11 | C11 | |
Spindle bore | mm | 82 | 100 | 100 |
Main motor power ( frequency conversion) | kW | 7.5 | 11 | 11 |
Tool post travel | mm | X: 300, Z:1000 | X: 400, Z: 1000-5000 | X: 500, Z: 1000-5000 |
Ballscrew diameter x pitch | mm | X: 2506 Z:6008 | X: 3206, Z:5010-8312 | X: 3206, Z:5010-8312 |
Rapid feeding speed | mm/min | X:4000 Z:6000 | X:4000. Z:6000mm | X:4000. Z:6000mm |
Machining preicision | IT6-IT7 | IT6-IT7 | IT6-IT7 | |
Roughness | Ra 1.6 | Ra 1.6 | Ra 1.6 | |
Standard configuration | Vertical four postion electric tool post | Vertical four postion electric tool post | Vertical four postion electric tool post | |
Optional congfiguration | Vertical six postion electric tool post | Vertical six postion electric tool post | Vertical six postion electric tool post | |
Re position of tool post | mm | 0.005 | 0.005 | 0.005 |
Tool section | mm | 25x25 | 32X32 | 32X32 |
Tailstock quill diameter | mm | 75 | 100 | 100 |
Tailstock quill travel | mm | 150 | 250 | 250 |
Tailstock taper | Morse | 5# | 6# | 6# |
CNC system | Siemens, FANUC, GSK | Siemens, FANUC, GSK | Siemens, FANUC, GSK | |
Motor Torque | Nm | X:6, Z:10 | X:10, Z:15 | X:10, Z:15 |
Chuck diameter(three jaw | mm | 250 | 325 | 400 |

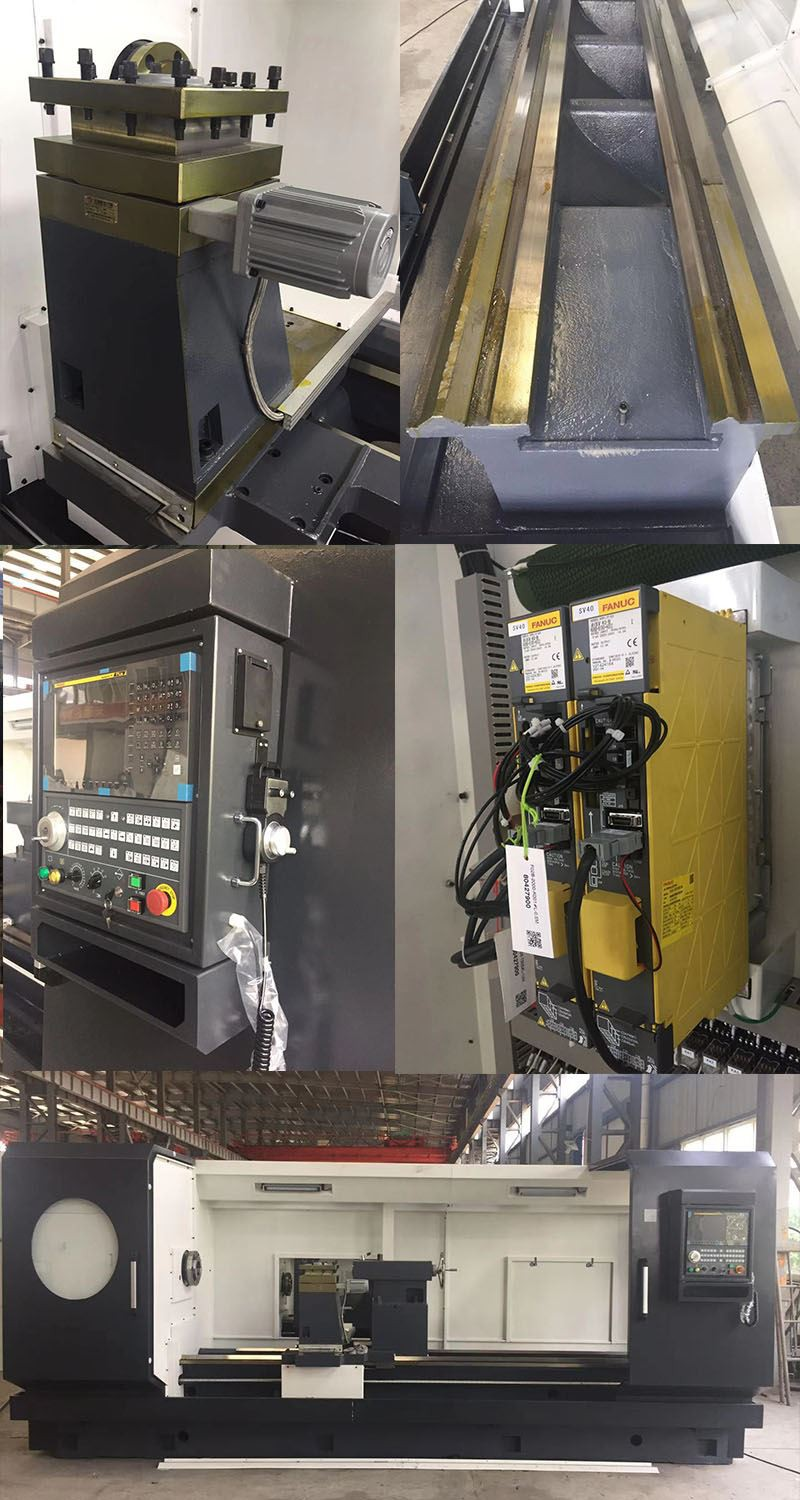

Details

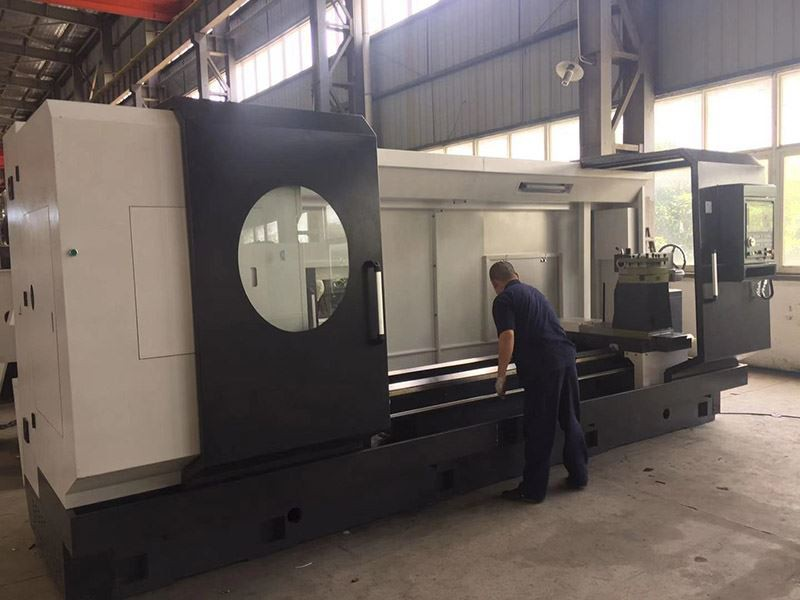

Glance of workshop
Customer View
