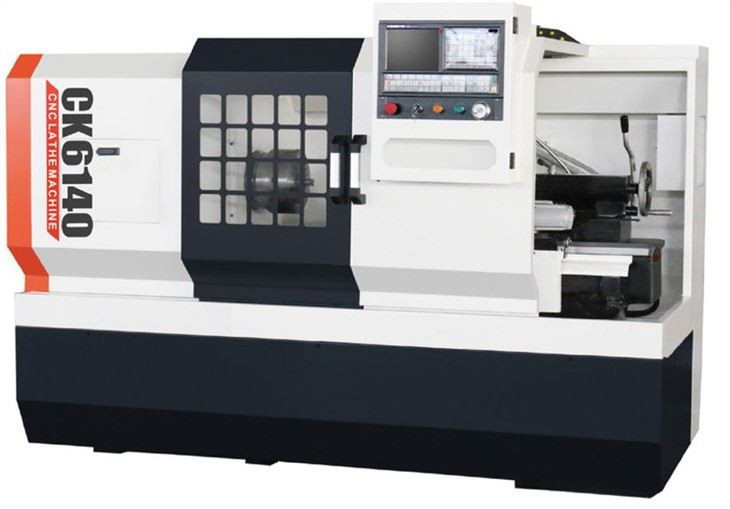

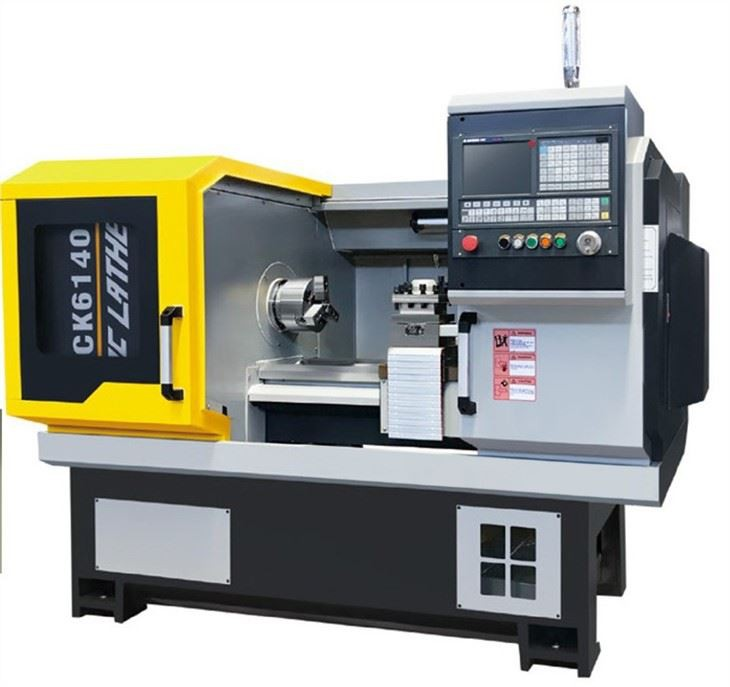

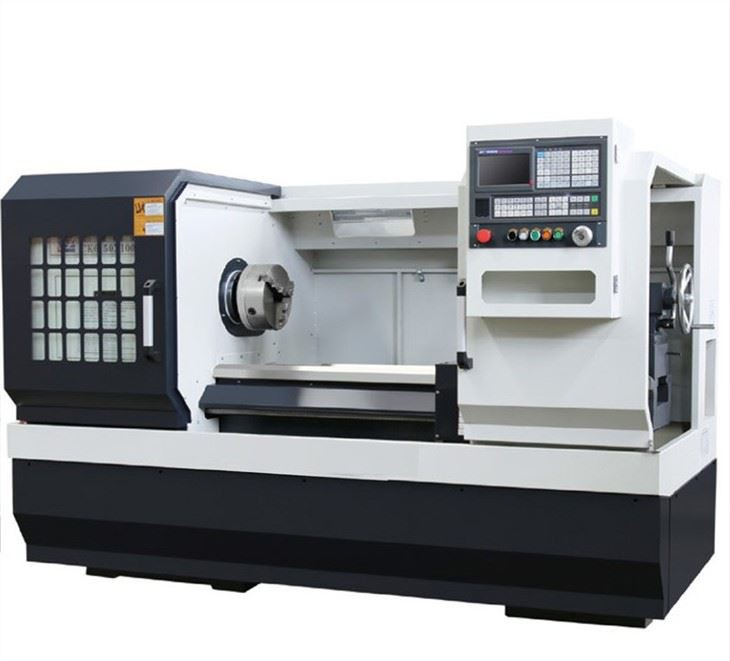

Feature of CNC Industrial Lathe
1)The machine can process precisely internal or external diameter,face ,taper,arc and treading with high efficiency
2)Standard toolpost is 4-stations,also 6-stations toolpost can be optional selection
3)Spindle speed changed by frequency
4)Induction harden bed-way.Bed saddle with plastic sticker can improve the accuracy and service life of the machine
5)The spindle is supported by imported precision bearings
6)Normally machine is provided with 3-jaw chuck.According to customer's optional selection,hydraulic chuck or pneumatic chuck also can be supplied
Application of CNC Industrial Lathe：
CNC Industrial Lathe can automatically process the inside and outside cylinder surface ,cone surface ,circular arc surface ,end face ,such as processing ,and also can process the single and multile threads in metric ,inch and other standards

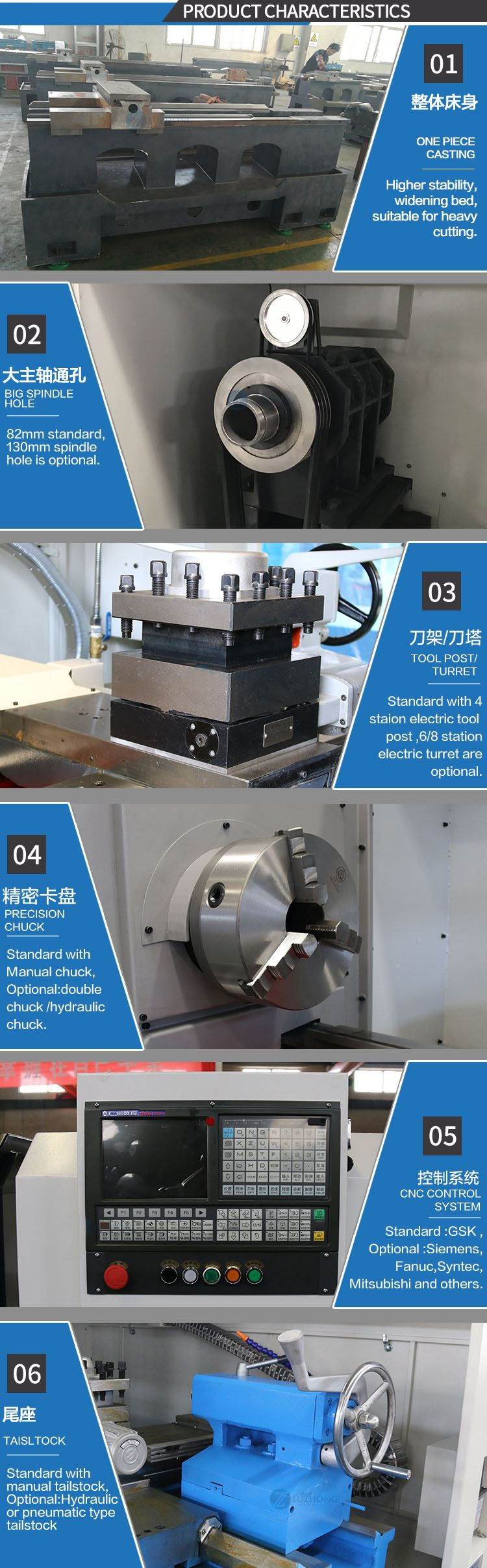

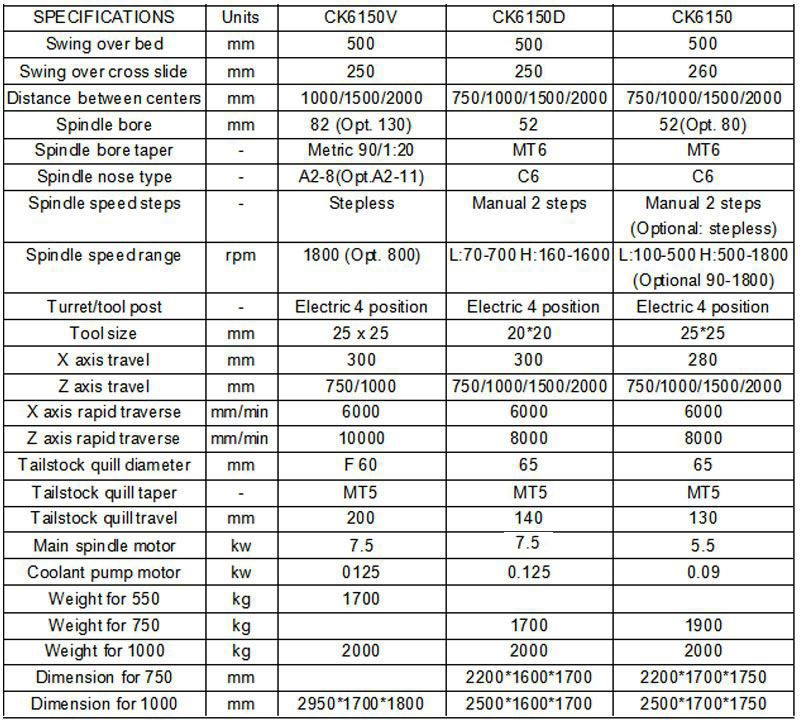

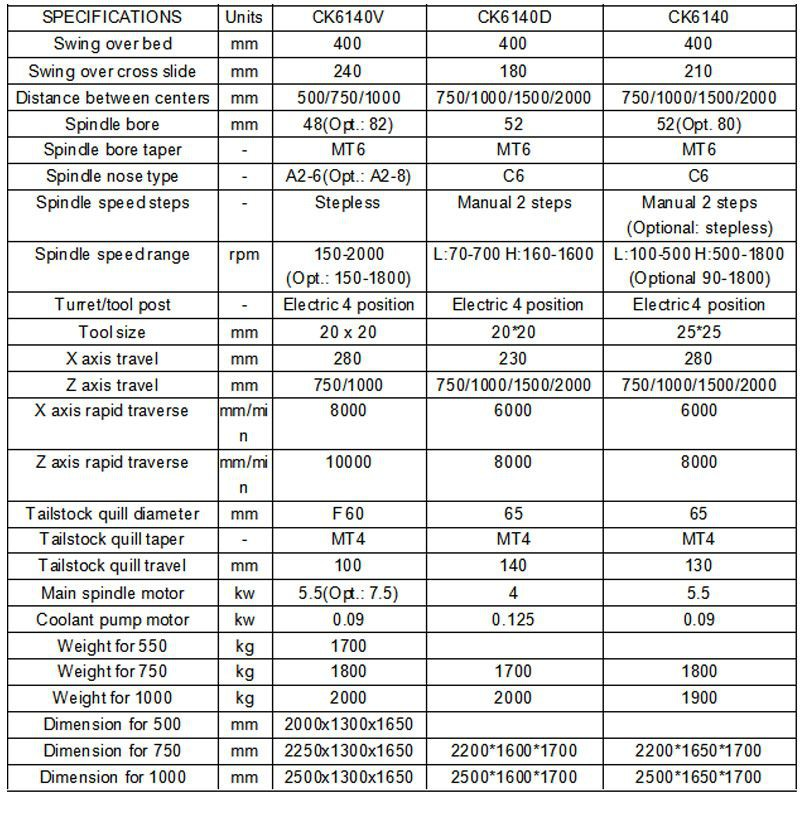

Configuration of CNC Industrial Lathe
Standard Configuration | Option Configuration |
Guideway width: 400mm | Hydraulic chuck |
One piece casting | Electric turret 6/8 position |
Independent spindle | Hydraulic tailstock |
3-jaw manual chuck | Double chuck as optional |
Electric 4 position | Manual 3 steps as optional |
Datails of CNC Horizontal Lathe
