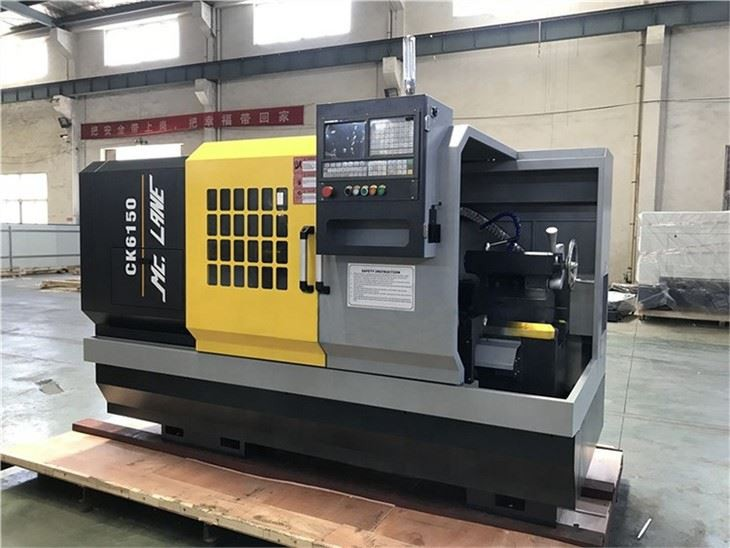

Including Model CK6150V,CK6150D,CK6150 CK6140V,CK6140D,CK6140
| Quantity: | |
|---|---|

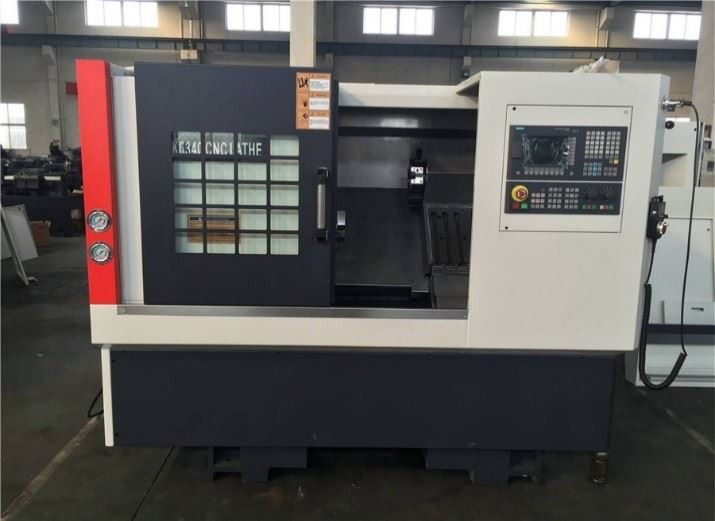

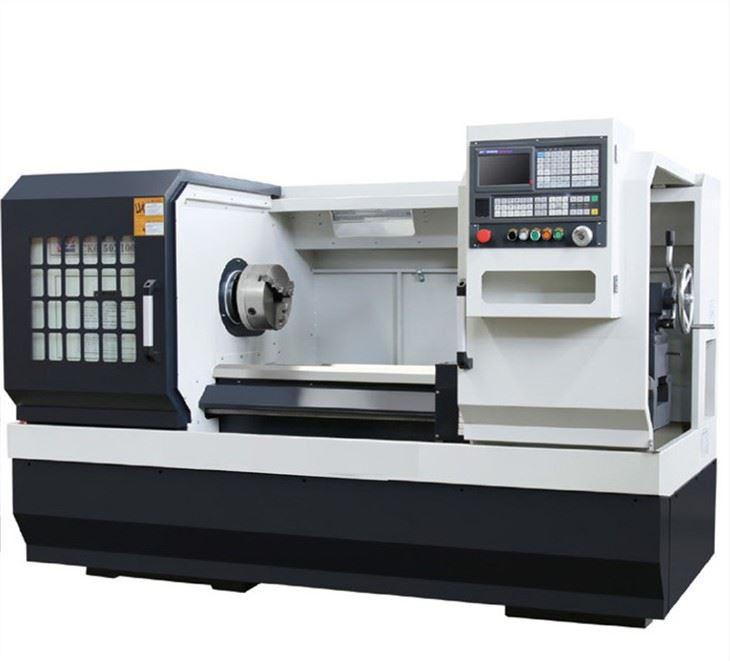

Introduction of CNC Light Duty Lathe
CNC Light Duty Lathe is a multifunctional horizontal lathe machine, perfect for the performance of basic production tasks. The structure of machine is mounted on a homogeneous, cast iron bed and widely spaced slide bearings, ensuring stability, rigidity, and precision of machining for various applications. Models with turrets with live tools, and also with Y-axis are available. GENOS L lathes have a wide range of machining abilities, which ensures high performance.

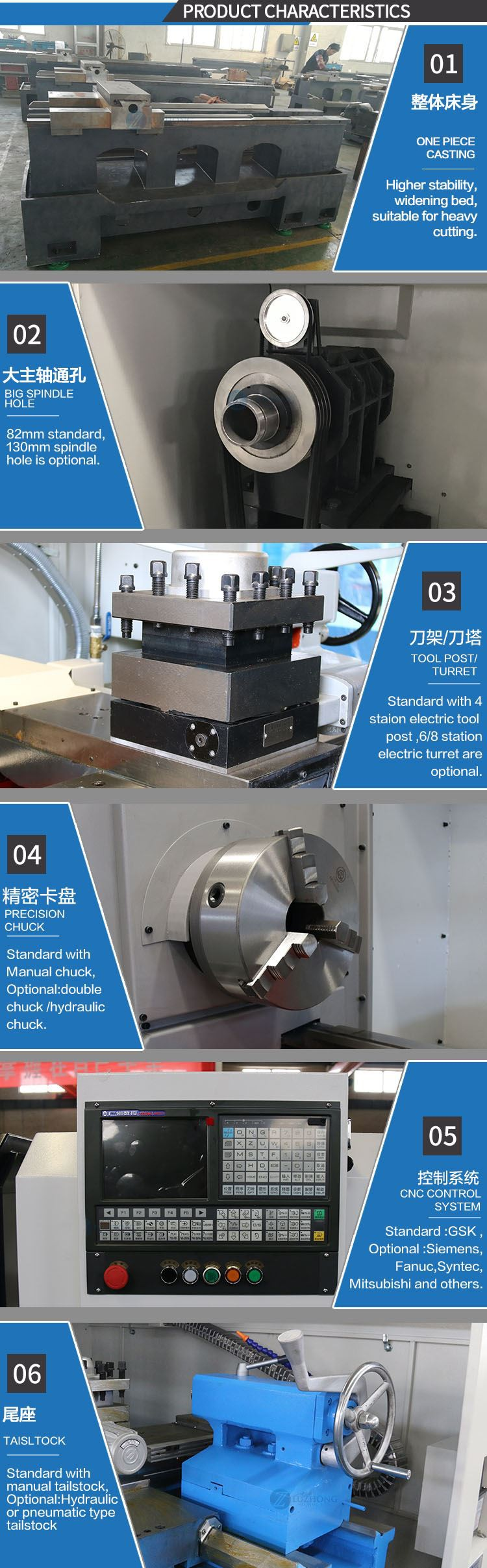

Configuration of CNC Light Duty Lathe
Standard Configuration | Option Configuration |
Guideway width: 400mm | Hydraulic chuck |
One piece casting | Electric turret 6/8 position |
Independent spindle | Hydraulic tailstock |

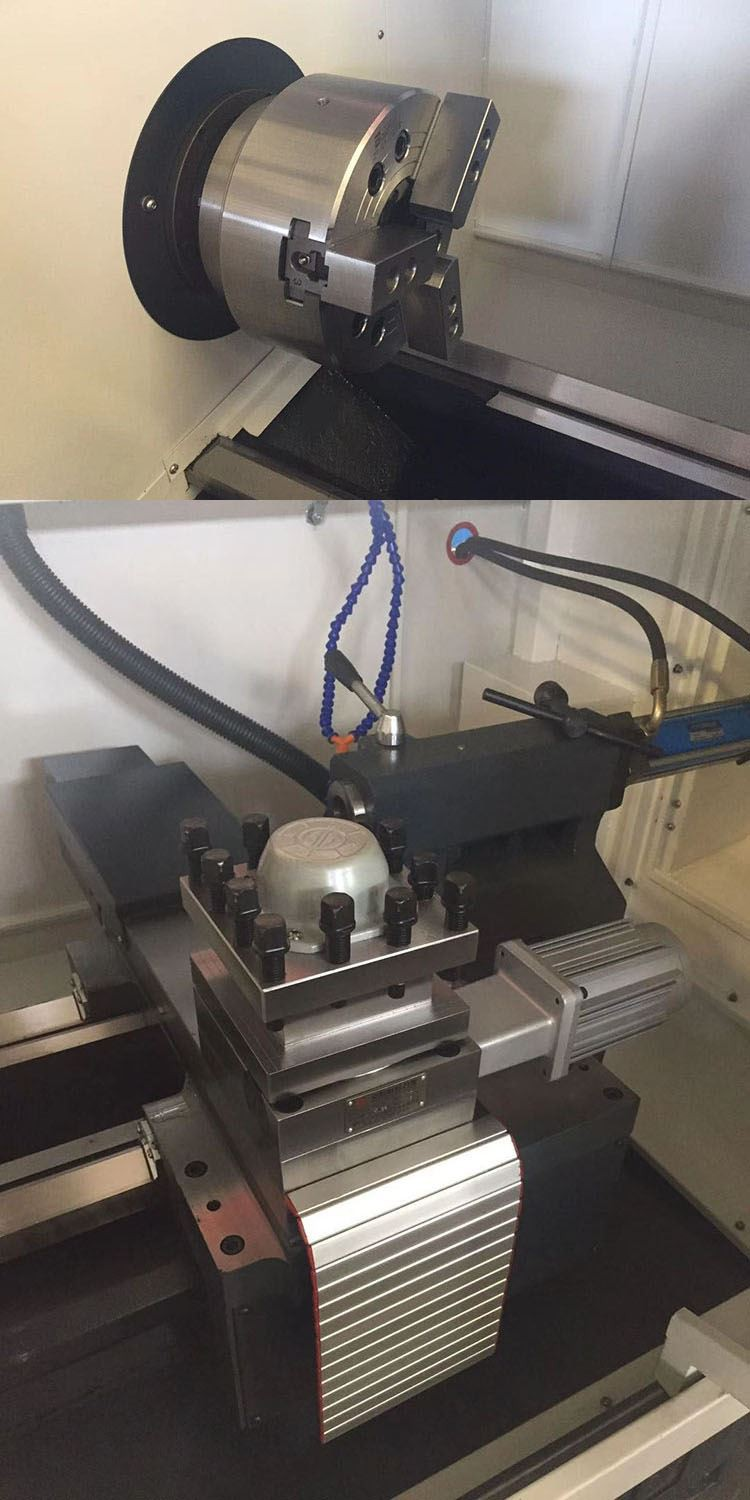

3-jaw manual chuck | Double chuck as optional |
Electric 4 position | Manual 3 steps as optional |
Specification of CNC Light Duty Lathe---One piece casting
SPECIFICATIONS | Units | CK6140V | CK6140D | CK6140 |
Swing over bed | mm | 400 | 400 | 400 |
Swing over cross slide | mm | 240 | 180 | 210 |
Distance between centers | mm | 500/750/1000 | 750/1000/1500/2000 | 750/1000/1500/2000 |
Spindle bore | mm | 48(Opt.: 82) | 52 | 52(Opt. 80) |
Spindle bore taper | - | MT6 | MT6 | MT6 |
Spindle nose type | - | A2-6(Opt.: A2-8) | C6 | C6 |
Spindle speed steps | - | Stepless | Manual 2 steps | Manual 2 steps(Optional: stepless) |
Spindle speed range | rpm | 150-2000(Opt.: 150-1800) | L:70-700 H:160-1600 | L:100-500 H:500-1800 (Optional 90-1800) |
Turret/tool post | - | Electric 4 position | Electric 4 position | Electric 4 position |
Tool size | mm | 20 x 20 | 20*20 | 25*25 |
X axis travel | mm | 280 | 230 | 280 |
Z axis travel | mm | 750/1000 | 750/1000/1500/2000 | 750/1000/1500/2000 |
X axis rapid traverse | mm/min | 8000 | 6000 | 6000 |
Z axis rapid traverse | mm/min | 10000 | 8000 | 8000 |
Tailstock quill diameter | mm | Φ60 | 65 | 65 |
Tailstock quill taper | - | MT4 | MT4 | MT4 |
Tailstock quill travel | mm | 100 | 140 | 130 |
Main spindle motor | kw | 5.5(Opt.: 7.5) | 4 | 5.5 |
Coolant pump motor | kw | 0.09 | 0.125 | 0.09 |
Weight for 550 | kg | 1700 | ||
Weight for 750 | kg | 1800 | 1700 | 1800 |
Weight for 1000 | kg | 2000 | 2000 | 1900 |
Dimension for 500 | mm | 2000x1300x1650 | ||
Dimension for 750 | mm | 2250x1300x1650 | 2200*1600*1700 | 2200*1650*1700 |
Dimension for 1000 | mm | 2500x1300x1650 | 2500*1600*1700 | 2500*1650*1700 |
