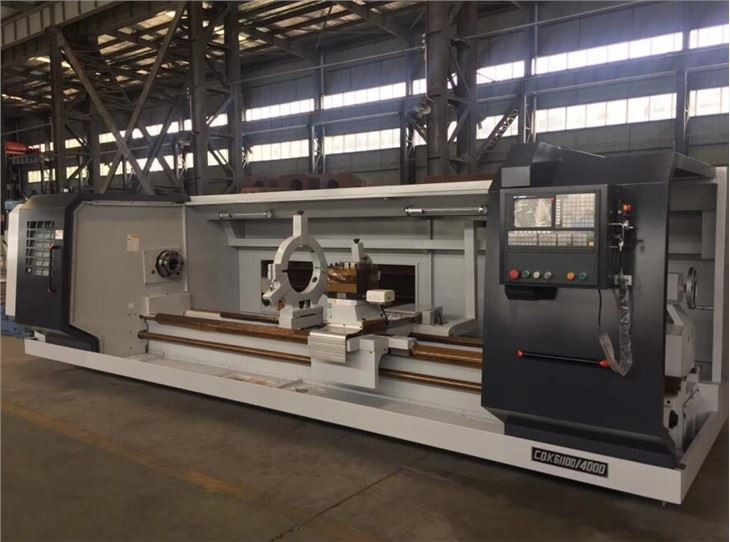

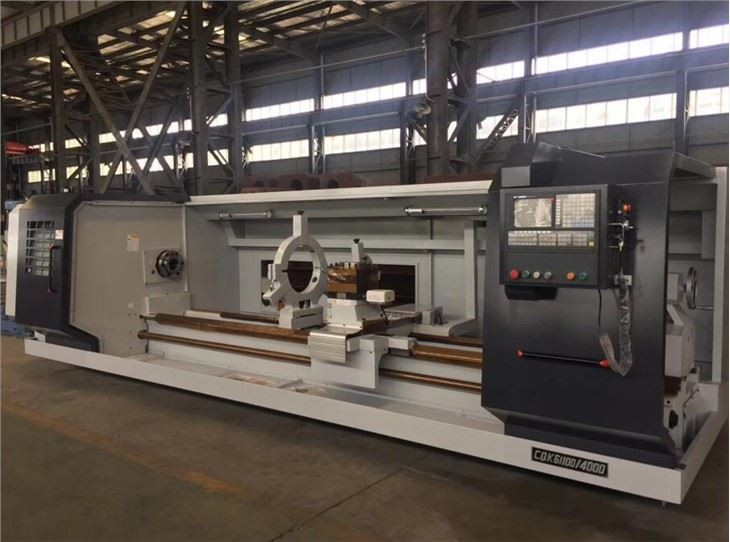

Introduction of CNC Heavy Duty Horizontal Lathe Machine
1. It is especially suitable for multi-variety, medium and small batch rotation processing, with strong process adaptability, high processing efficiency, low scrap rate, and good consistency of finished products, which can reduce the requirements for the technical proficiency of workers. Easy to program and simple to operate, it is an ideal large-scale machining equipment.
2. The imported rail grinder is used for precision grinding to ensure cnc heavy duty lathe with long life, high precision and good retention.
3.Automatic forced circulation lubrication makes the transmission system run flexibly and can effectively cool down.
4. X-direction and Z-direction adopt precision ground ball screw pair to ensure high machining precision, positioning precision and precision retention.
5. Cross(X-direction) feed: The AC servo motor installed at the back of the saddle is directly connected to the transverse ball screw via a coupling; the machine tool has high positioning accuracy and repeat positioning accuracy.
Products Specification of CNC Heavy Duty Horizontal Lathe Machine
For swing over bed: 1600, 1800, 2000mm, please contact us for more info.
Item | unit | CK61100 | CK61125 | CK61140 |
Swing over bed | mm | 1000 | 1250 | 1400 |
Swing over carriage | mm | 615 | 865 | 930 |
Max. workpiece length | mm | 1000-10000 | ||
Guideway width | mm | 755 | 755 | 755 |
Spindle taper | mm | 1:120/140 | 1:120/140 | 1:120/140 |
Chuck | Four jaw 1000 | Four jaw 1000 | Four jaw 1000 | |
Spindle speed | r/min | 70-260. 25-100, 220-850 | 70-260. 25-100, 220-850 | 70-260. 25-100, 220-850 |
Spindle end structure | A2/15 | A2/15 | A2/15 | |
Spindle bore | mm | 130 | 130 | 130 |
Main motor power ( frequency conversion) | kW | 22 | 22 | 22 |
Main transmission | 4-470(FOUR STEP) | 4-470(FOUR STEP) | 4-470(FOUR STEP) | |
Center height | mm | 500 | 625 | 625 |
Min. X/Z feeding increment | mm | 0.001 | 0.001 | 0.001 |
X/Z rapid speed | mm/min | 3000/6000 | 3000/6000 | 3000/6000 |
Max. X travel | mm/min | 520 | 650 | 650 |
Toolpost postiion | V4300X300 | V4300X300 | V4300X300 | |
Toolpost position changing time | S | 4.5 | 4.5 | 4.5 |
Tool post re positioning precistion | mm | 0.005 | 0.005 | 0.005 |
Tool section | mm | 45 | 45 | 45 |
Tailstock quill diameter | mm | 160 | 160 | 160 |
Tailstock quill travel | mm | 300 | 300 | 300 |
Tailstock taper | Morse | 6# | 6# | 6# |
Machining precision | IT6-IT7 | IT6-IT7 | IT6-IT7 | |
Roughness | Ra1.6 | Ra1.6 | Ra1.6 | |
Standard configuration | Vertical four postion electric tool post | Vertical four postion electric tool post | Vertical four postion electric tool post | |
Optional congfiguration | Vertical six postion electric tool post | Vertical six postion electric tool post | Vertical six postion electric tool post | |
Re position of tool post | mm | 0.005 | 0.005 | 0.005 |
Tool section | mm | 32X32 | 32X32 | 32X32 |
CNC system | Siemens, FANUC, GSK | Siemens, FANUC, GSK | Siemens, FANUC, GSK | |

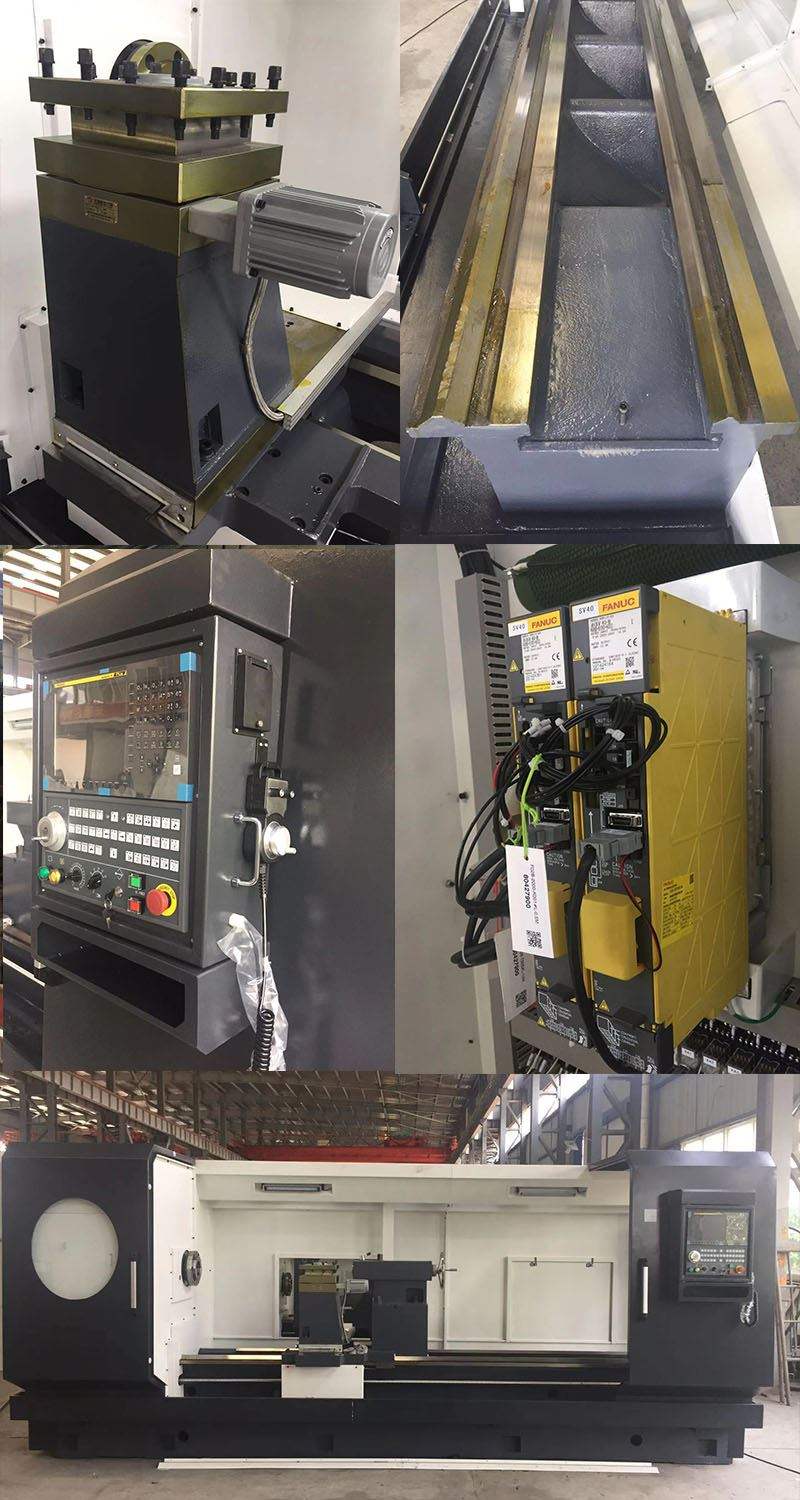

Glance of workshop of CNC Heavy Duty Lathe
