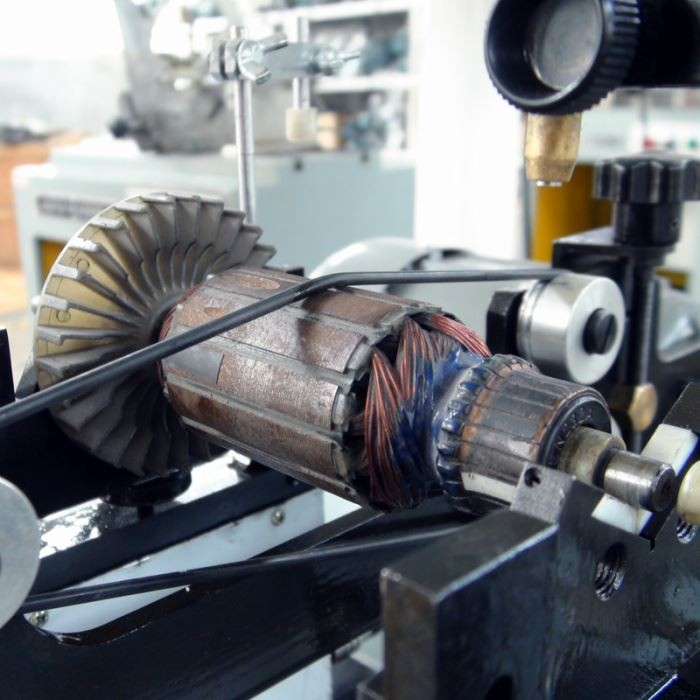

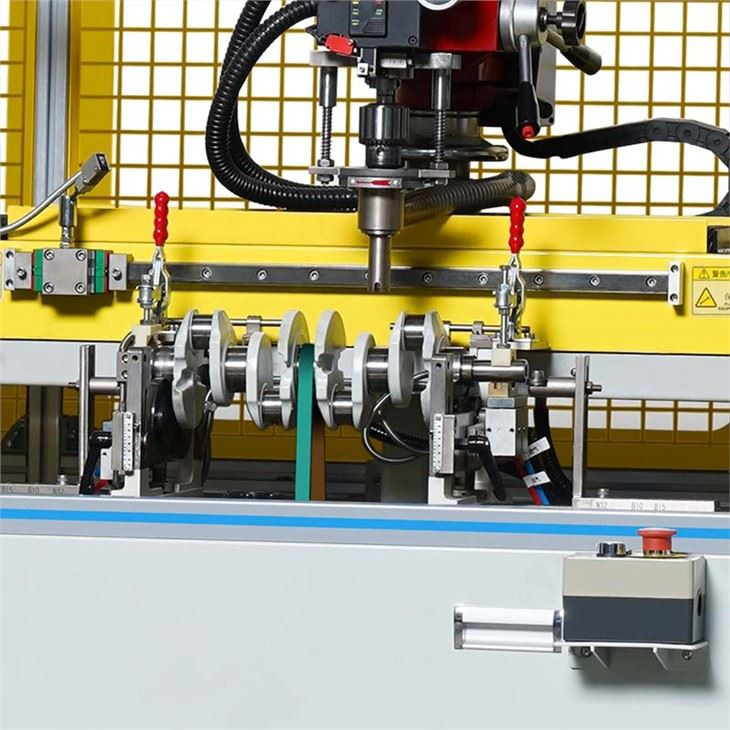

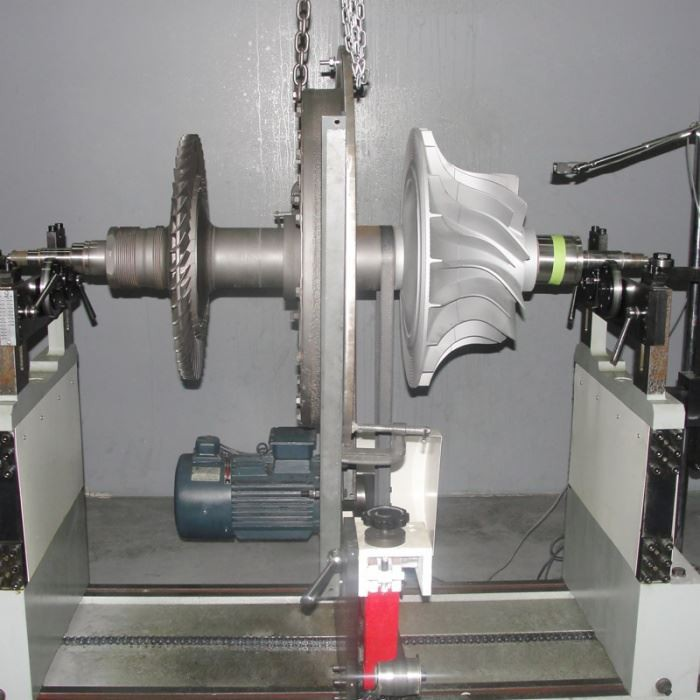

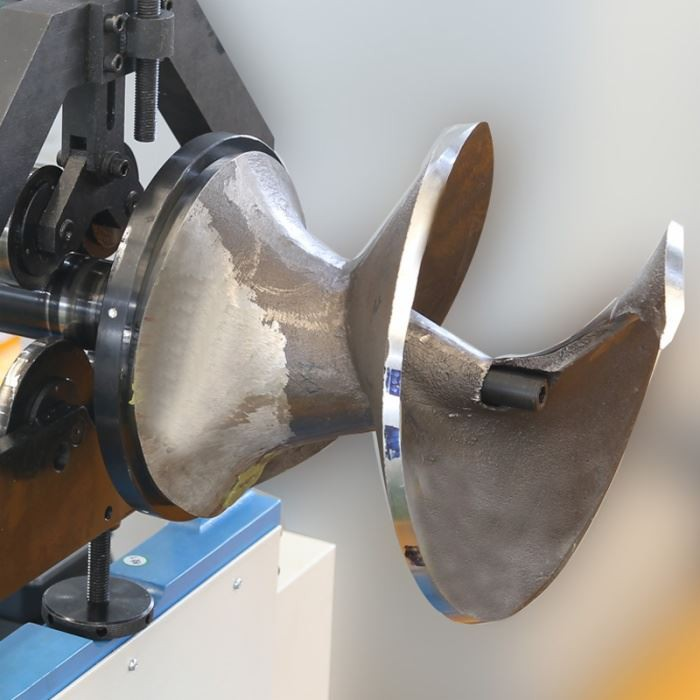

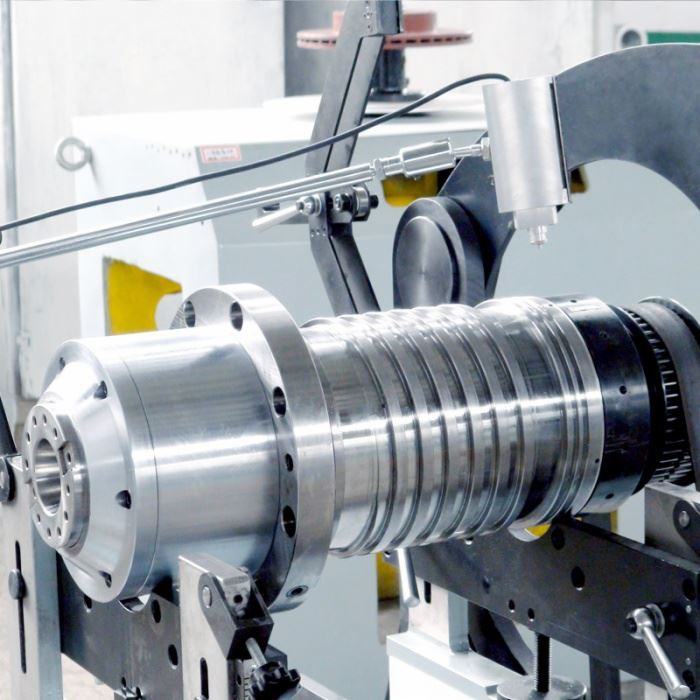

Belt Drive type balancing machine is widely used in small, middle and big-sized motors rotors, impeller, fans, crankshaft, turbocharger, water pump, roller, grinding wheel, main shaft of machine tool , textile machinery, tool , spindle, etc ..
| Quantity: | |
|---|---|
Feature of Belt Drive Balancing Machine:
1. Specially designed brackets transmit mechanical force with low vibration damping
2.Durable and reliable sensor possesses good linearity
3.Permanent calibration brings high accuracy with a permission of large initial unbalance amount
4.Belt-driving offers higher precision and easier operation
5.Advanced electrical measuring system and friendly man-machine interface 6.Modular design offers a wide range of application

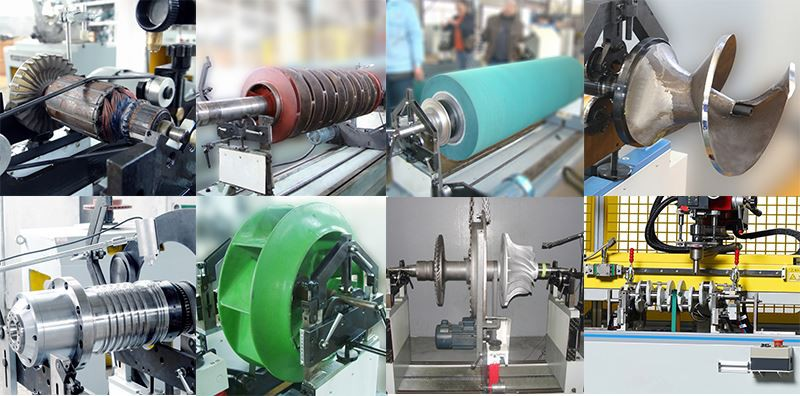

7.SFQ series are applicable for balancing rotating parts of motor fan impeller pump impeller turbocharger crankshaft centrifuge roller spindle etc.
8. Special Designed Brackets
Less vibration damping, the transfer of mechanical force is more smooth
The swing frame casted with QT450, high integral rigidity, the mating surface with grinding process;
Roller material GCr15, after high frequency quenching, the hardness achieved above HRC55, surface
grinding to a radian, realization of contact with the workpiece width line, the final grinding and
demagnetization;
Roller bearing using NF special custom P5 class C1 group precision small oil gap clearance, to ensure
that the roller wear resistance, greatly improves the precision and service life of the use of the roller.
9. Whole Cast Machine Bed
Ensure the material,higher rigidity,running more stable.
After guideway of the bed rough finish machining by double housing planer,then regrind processing,this guarantees that the flatness, parallelism precision of rail surface.
It can customize according to users requirements.

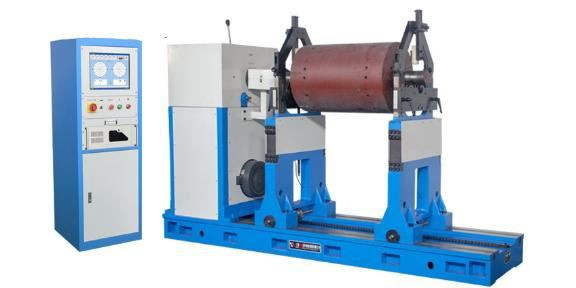

Parameters of Belt Drive Balancing Machine
Technical data | SFQ-1.6/5 | SFQ-1.6A/5A | SFQ-G5 | SFQ-5 | SFQ-16A | |
Max Mass of Workpiece(kg) | 1.6/5 | 1.6/5 | 5 | 5 | 16 | |
Max Diameter of Workpiece (mm) | Φ300 | Φ300 | Φ300 | 400 | Φ300 | |
Distance Between Two Support Bearings (mm) | 15~500 | 15~500 | 15~500 | 15~500 | 15~500 | |
Journal Diameter Scope of Workpiece (mm) | Φ 3~40(120°) | Φ 3~40 | Φ 3~40 | Φ 3~40 | Φ 3~40 | |
Diameter Scope of Driving Belt (mm) | Φ20~85 | Φ15~150 | Φ20~85 | Φ15~150 | Φ15~150 | |
Rotational Speed when the Diameter of Driving Belt is 100mm (r/min) | ~14701) | ~14701) | ~14701) | 0~20001) | ~14701) | |
Motor Power (kw) | 0.2DC | 0.2DC | 0.2DC | 0.2DC | 0.2DC | |
Min Achievable Residual Unbalance Amount (emar) | ≤0.15g· mm/kg | ≤0.15g· mm/kg | ≤0.15g· mm/kg | ≤0.15g· mm/kg | ≤0.15g· mm/kg | |
Technical data | PHQ-50 | PHQ-16H | PHQ- 160Z | PHQ- C160H | PHQ-30H | PHQ-500H |
Max Mass of Workpiece(kg) | 50 | 160 | 160 | 160 | 300 | 500 |
Max Diameter of Workpiece (mm) | Φ700 | Φ1000 | Φ300 | 400 | Φ1220 | Φ1500 |
Distance Between Two Support Bearings (mm) | 80~700 | 130~1270 | 130~1270 | 130~1270 | 130~1270 | 130~1270 |
Journal Diameter Scope of Workpiece (mm) | Φ 8~753) | Φ 15~753) | Φ200-300 | Φ200 | Φ 15~753) | Φ 15~753) |
Diameter Scope of Driving Belt (mm) | Φ18~200 | Φmax400 | Φmax300 | Φmax400 | Φmax500 | Φmax600 |
Rotational Speed when the Diameter of Driving Belt is 100mm (r/min) | 700,10501) | ~1176 | 75001) | 756,11761) | ~1176 | ~1176 |
Motor Power (kw) | 0.752) | 1.52) | 42) | 1.52) | 1.52) | 2.22) |
Length of Bed (mm) | 1500 | 1500 | 1500 | |||
Min Achievable Residual Unbalance Amount (emar) | ≤0.15g· mm/kg | ≤0.15g· mm/kg | ≤0.15g· mm/kg | ≤0.15g· mm/kg | ≤0.15g· mm/kg | ≤0.15g· mm/kg |
Technical data | PHQ-1000H | PHQ-2000H | PHQ-3000H | PHQ-5000 | ||
Max Mass of Workpiece(kg) | 1000 | 2000 | 3000 | 5000 | ||
Max Diameter of Workpiece (mm) | Φ1600 | Φ1800 | Φ2100 | Φ2400 | ||
Distance Between Two Support Bearings (mm) | 160~1780 | 160~1780 | 160~2280 | 500~2200 | ||
Journal Diameter Scope of Workpiece (mm) | Φ 25~1204) | Φ25~1204) | Φ25~1204) | Φ40~380 | ||
Diameter Scope of Driving Belt (mm) | Φmax700 | Φmax800 | Φmax900 | Φ50~1000 | ||
Rotational Speed when the Diameter of Driving Belt is 100mm (r/min) | 1330,19181) | 684,9861) | 921,13291) | 795,18531) | ||
Motor Power (kw) | 42) | 5.52) | 7.52) | 152) | ||

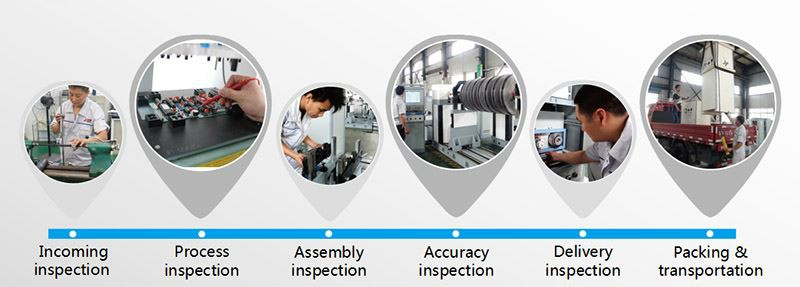

Strict Product Quality Control
Company Certificates:

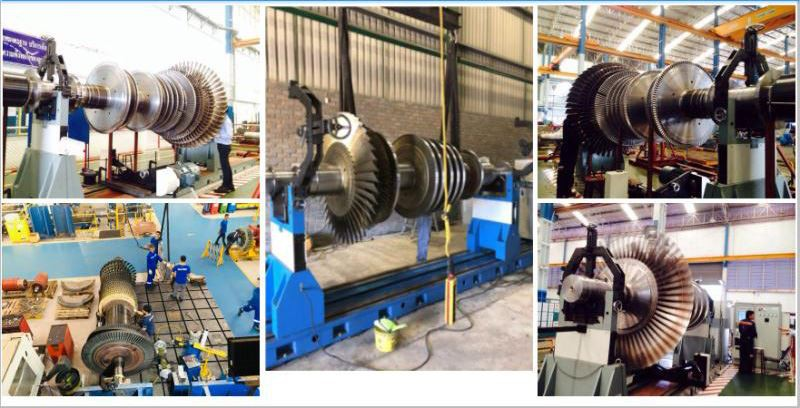

Customers

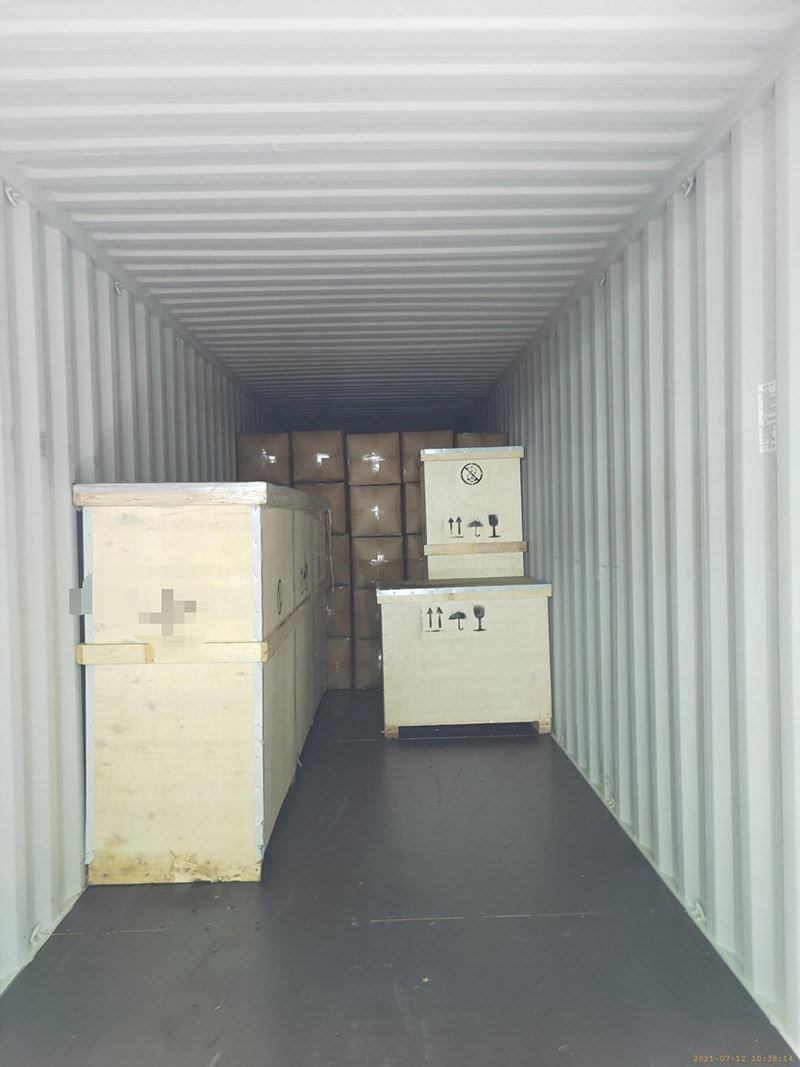

Shipping
After sales service
1. Machine match with English version manual instruction & operation CD (easy to learn )
2. Provide online support, like whatsapp,video conference & phone call (guide step by step)
1. Training in workshops (for free)
2. Training in buyers company (for charge,normally two or three days needed )
1st day: inspection cable connection,the finished foundation is qualified guide customer know each components name and functions as well
2nd day: demo and teach user do calibration(vetical+honrizontal+Mathematical+ Physical mode) use customer workpieces do dynamic balance See the buyer operating the machine separately
3rd day: review all operation step and learn each parts maintenance method.
1. Before delivery :Special QC department check carefully ensure all is qualified with high quality
2. Through see customer actual photos or short video, using discussed group or email or video meeting or phone call give solutions immediately
3. Use remote monitor to inspection
4. Dispatch engineer go to customer workshops onsite
