Swing over bed: 630mm, 800mm Spindle Bore: 105mm
| Quantity: | |
|---|---|

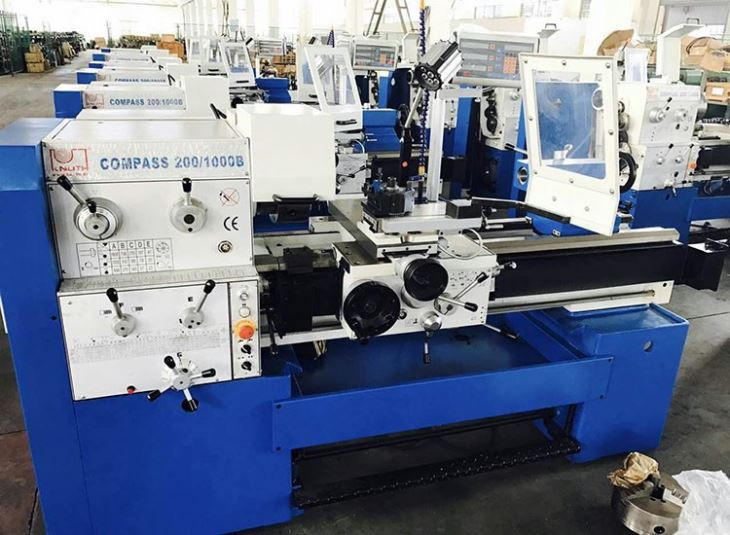

Feature of Horizontal Metalworking Lathe
Hardened Z axis guideway
Gears and shaft tempered and ground
Main spindle running in oil bath
Easy spindle direction change via level on bed slide
Leading spindle cover
Emergency stop device foot pedal
Central lubricating system
Products Specification of Horizontal Metalworking Lathe
Item | Unit | CW61100 | CW61125 | CW61140 |
Swing over bed | mm | 1000 | 1250 | 1400 |
Swing over cross slide | mm | 615 | 860 | 1010 |
Wdith of guideway | mm | 600,755 | ||
Distance between center | mm | 1000/1500/2000/3000/4000/5000/6000/7000/8000/9000/10000 | ||
Max. workpiece through spindle | mm | 128 | ||
Spindle bore | mm | 130 | ||
Taper of spindle bore | Metric 140 | |||
Range of spindle speed | r/min | Clockwise: 21kinds 3.15-315 | ||
r/min | Anti Clockwise: 12kinds 5-400 | |||
Step of feed | kinds | 56 kinds | ||
Longitudinal feed range | 0.1-12mm/r | |||
Cross to longitudinal feed rate | 0.05-6mm/r | |||
Carriage rapid moving feed rate | m/min | 0.025-3mm/r | ||
Metric threads range | mm | 43 1-120mm | ||
Inch threads range | mm | 29 28-3/8teeth/inch | ||
Module threads range | mm | 45 0.5-60mm | ||
Pitch threads range | 1/inch | 25 1-55 | ||
Distance between center line of spindle to tool post | mm | 48 | ||
Section of tools shank | mm | 45x45 | ||
Swivel anger of tool pos | ±90° | |||
Max..travel of cross slide | mm | 1450, 1950-14950 | ||
Max..travel of top slide | mm | 520/750 | ||
Rapid travel speed | mm | Longitudinal:3740mm/min | ||
Cross: 3740mm/min | ||||
Slide | ||||
Center quill diameter and travel | mm | 140, 300 | ||
Tailstock quill taper | mm | Metric 80 | ||
Main motor power | kW | 22 | ||
Motor rotation speed | r/m | 1470 | ||
Slide rapid motor pwer | kW | 1.5 | ||
Coolant motor power | kW | 0.15 | ||
Coolant pump flow | L/M | 45 | ||
Glance of workshop
Customer View
General Introduction:
We started with lathe machine casting and lathe machines. Senior engineer and chief engineer with 35-45 years working experience in machine tool industry.
As developing for these years, thanks to supports by various customers all around world, nowadays we are developing faster and become professional machine tool solution supplier.
Cooperation with Italian companies to develop and produce vertical lathe with C axis and sell them to China CNR Group, South Korea, India, Italy, France, the United States, Brazil and other more than a dozen countries and regions.
We own two bright brands:
Edgev Metal Tools for machine tool inserts and Starfish Machine Tool for machine tools.
We are one of the top supplier of lathe inserts and machine tools in China.
Office for overseas sales is located in Dalian, workshop is in Dalian&Hebei Province.
The machine tools can meet various compound needs including turning, milling, drilling, grinding and also processing more complex parts.
The machine tools have been used in field of Aerospace, Traffic, Auto industry, Valve industry, Pump industry, Marine industry etc.. The features of our machine are energy saving, faster operation, High precision etc.
Not only does it provide a wide selection of machines and equipment, but it also provides the best options, tools and tool sets for each specific situation, as well as a single integrated solution in the field of production process automation.
Our company is also a platform that offers quality equipment, dependable service, and competitive prices.
