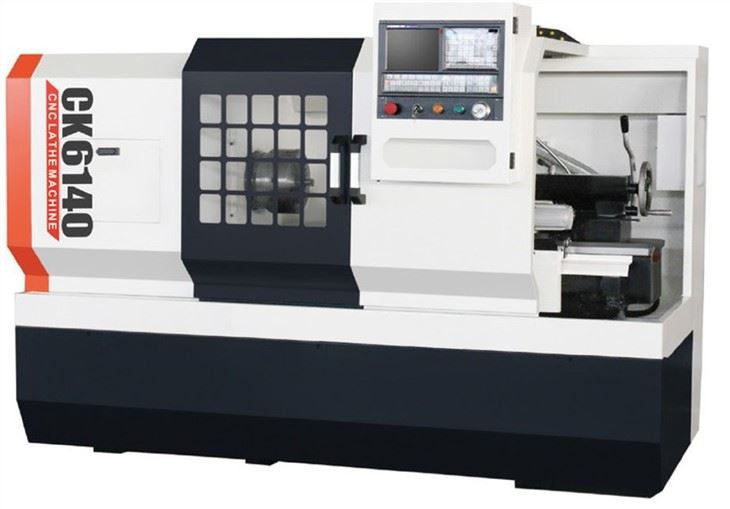

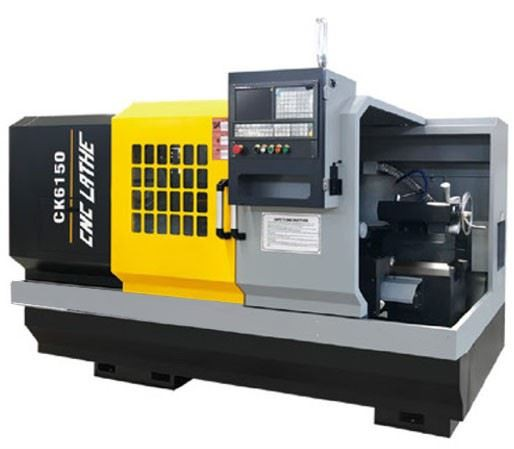

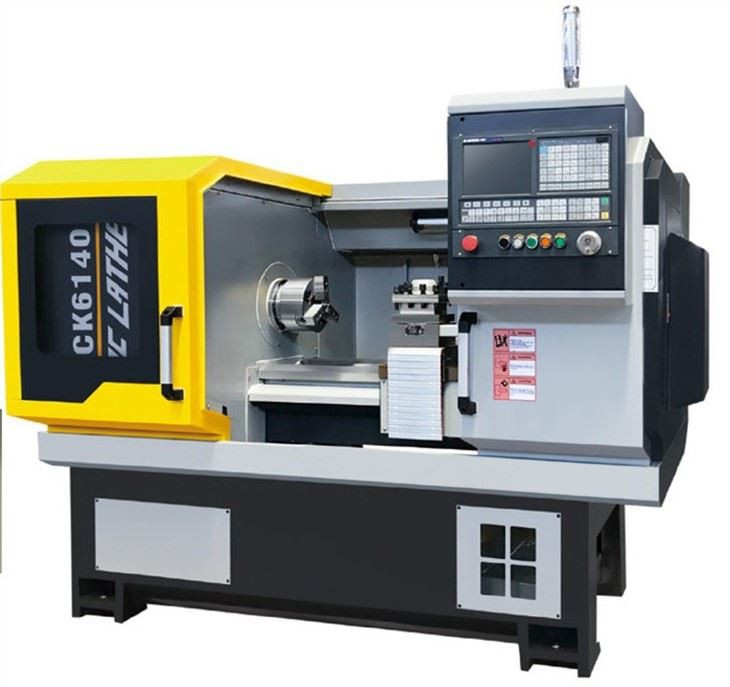

Including Model CK6150V,CK6150D,CK6150 CK6140V,CK6140D,CK6140
| Quantity: | |
|---|---|

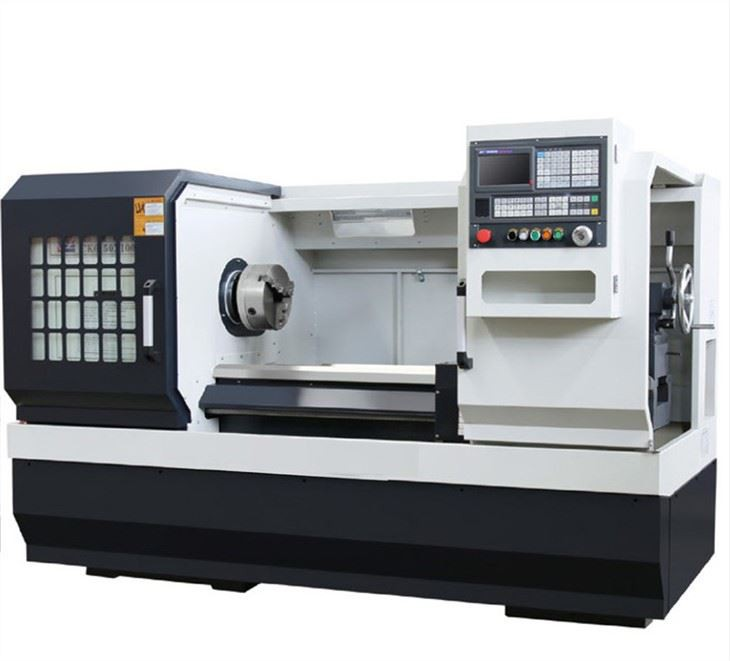

Introduction of CNC Automatic Lathe Machine
CNC Automatic Lathe Machine is the oldest turning model, which has been widely used in the industrial field. The horizontal feature makes the lathe easy to use and maintain, and its convenience and structural advantages, making it easier to adjust, are widely used in various fields. Therefore, for users, there is no better standard answer in the horizontal or vertical direction, but only the application field.

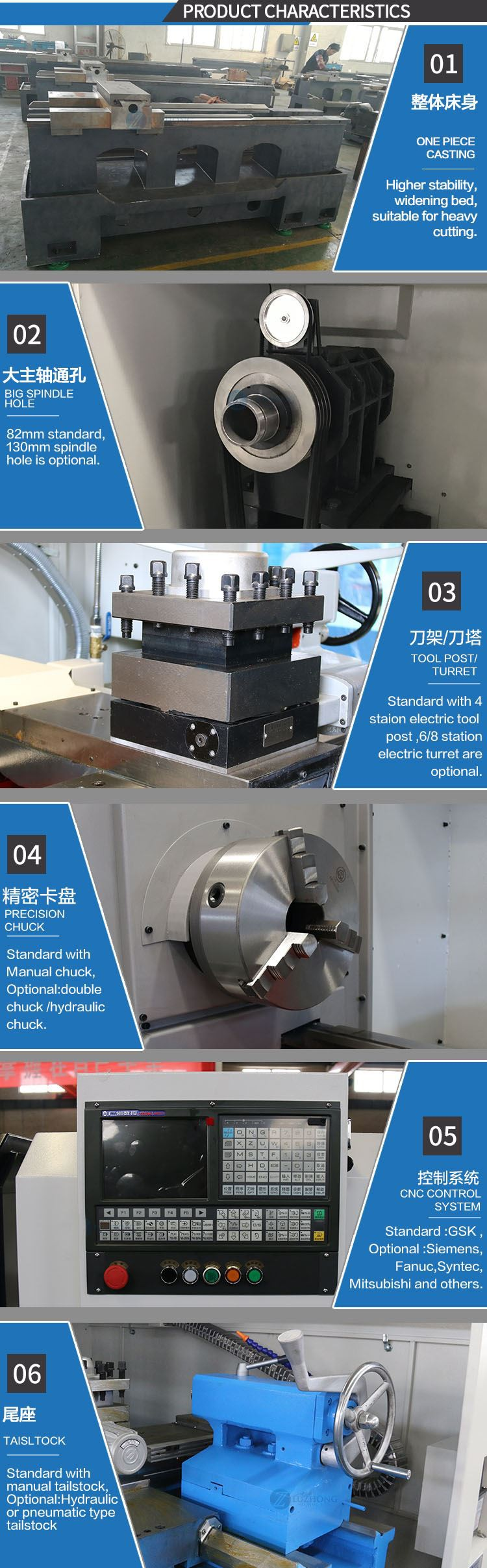

Features of CNC Automatic Lathe Machine：
1. A high strength ,widening the carriage ,suitable for heavy cutting

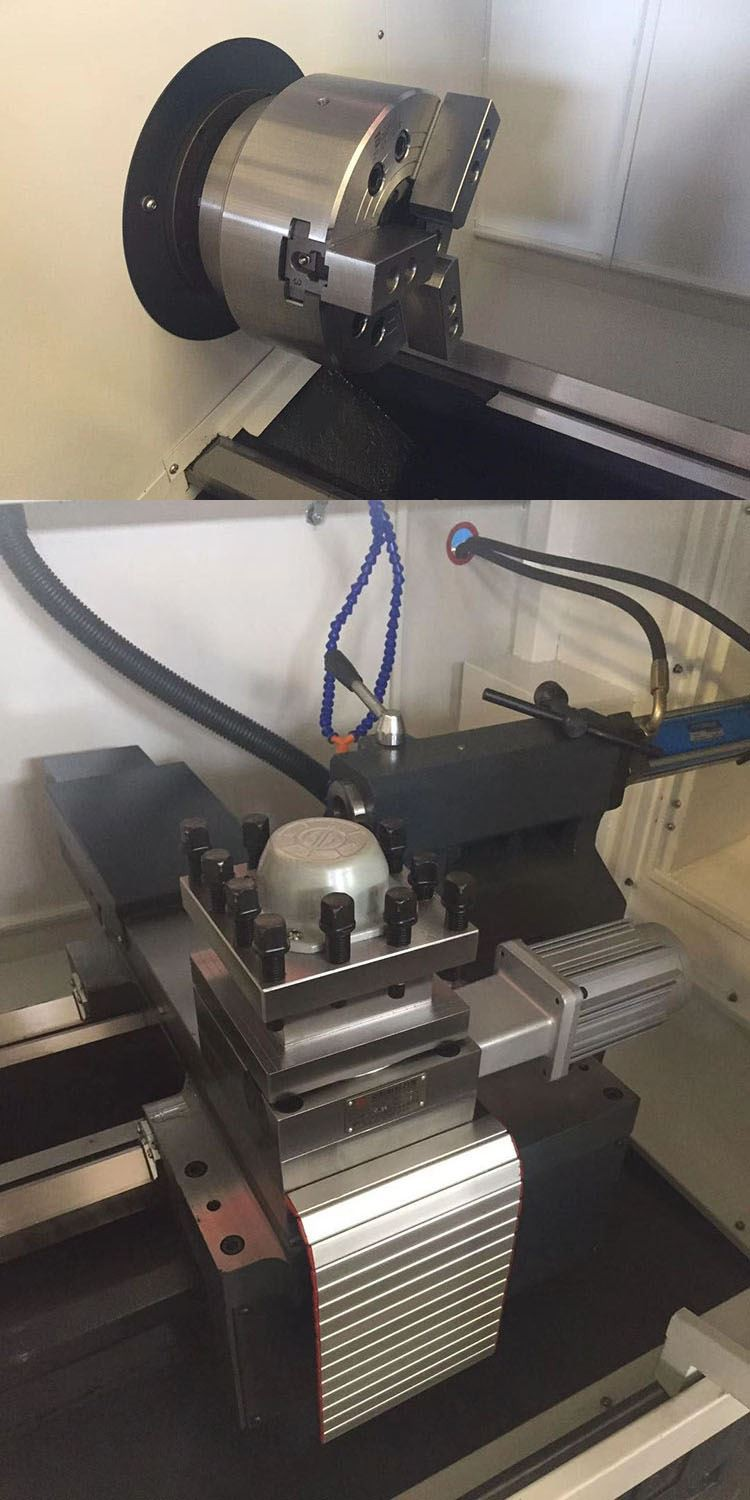

2.Four station electric tool post
3. Frequency conversion stepless speed regulation
4. Standard configuration: manual chuck
5. Optional configuration: hydraulic chuck
Configuration of CNC Automatic Lathe Machine
Standard Configuration | Option Configuration |
Guideway width: 400mm | Hydraulic chuck |
One piece casting | Electric turret 6/8 position |
Independent spindle | Hydraulic tailstock |
3-jaw manual chuck | Double chuck as optional |
Electric 4 position | Manual 3 steps as optional |
Specification of CNC Automatic Lathe Machine---One piece casting
Item | Unit | CK6628 | CK6636 | CK6646 | 6663 |
Swing over bed | mm | 1000 | 1000 | 1200 | 1400 |
Swing over carriage | mm | 650 | 640 | 800 | 1100 |
Spindle Bore | mm | 280 | 360 | 460 | 630 |
Max. Load between center | Ton | 4 | 6 | 6 | 10 |
Bed Width | mm | 600 | 755 | 970 | 970 |
Spindle speed | rpm | 5-500 | 3.15-315 | 3.15-315 | 2-200 |
Spindle motor | kW | 18.5 | 22 | 30 | 37 |
Machine weight of 3 meters | Kg | 6800 | 12000 | 14000 | 17000 |
Machine weightof 3 meters | LXWXH | 5750X1650X1550 | 6300X1650X1700 | 6300X2550X1850 | 6300X2875X1850 |
