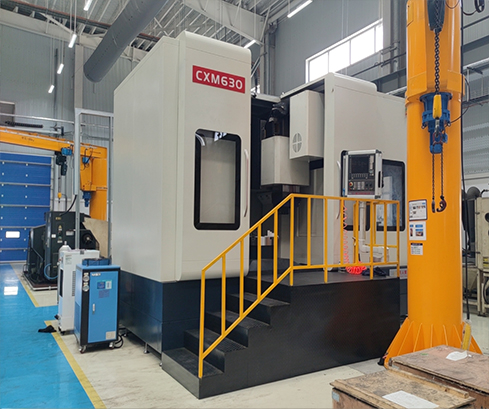

Feature:
1) This machine is integrated turning, milling, grinding multi-functional machine tool, which can process a variety of cast iron, steel stainless steel titanium alloy ferrous metal, non-ferrous metal materials, processing disk, cylindrical parts of the outer circle, inner hole, end face, grooving, thread and cone, arc surface . And has constant linear speed-cutting function.
2) To improve the safety, quality, efficiency, and combination of PDC bit in the daily production PDC matrix bits production process, we designed an integrated CNC machine for turning the shank welding scar of PDC bits, milling bits slot and grinding bit outer diameter.
Parameter:
Item | Unit | Specifications |
Max swing diameter | mm | 630 |
Max turning diameter | mm | 630 |
Max machining height | mm | 650 |
Max workpiece weight | kg | 500 |
Motor type | Asynchronous motor | |
Chuck interface | A2-11 | |
Spindle nose | BT50 | |
Tool magazine type | ATC | |
Tool capacity | pcs | 8 |
Max tool weight | kg | 90 |
Tool change time | sec | 60 |
Worktable move front and back （Y axis） | mm | 360 |
Right tool ram horizontal move（X2） | 100-550 （add tool exchange travel 500） | |
Left grind ram horizontal travel（X1） | mm | 0-500 |
Right tool post vertical travel（Z2） | mm | 350 |
Left grinding ram vertical travel（Z1） | mm | 600 |
Swing angle of grinding wheel | ° | ±10 |
Max milling spindle speed | rpm | 3500 |
Max milling spindle torque | N.m | 560 |
Machine size (L/W) | mm | 5600×3300 |
Machine height | mm | 4000 |
Machine weight | kg | 29000 |
Total power supply | KVA | 70 |
Product Advantage
The machine has X1, X2, Y, Z1, Z2, C , six CNC axes. Among them, the grinding wheel rotating spindle is C2 axis controlled by system, and the table rotating and index is C1 axis.
X 1 axis : the left ram (Grinding) moving along the crossbeam guideway in horizontal direction.
X 2 axis: the right ram (turning and milling) moving along the crossbeam guideway in horizontal direction
Y axis: the table moving along the machine bed guideway in front and back direction.
Z1 axis: the left ram moving up and down .
Z 2 axis : the right ram moving up and down
C axis: the worktable rotation with indexing function.
Product Uses
The machine has two tool post. The left one is grinding tool post, the right one is turning and milling tool post.
The machine tool can be used to process the inner and outer cylinder, cone, end face, grooving and chamfering ; At the same time, it can complete the processing of drilling, tapping, boring, etc. at any position of the end face of the part, and can also milling the end face, cylindrical plane, keyway, etc. Can also achieve grinding processing, taper grinding.
FAQ
Q: How to guarantee machine quality?
A: (1)The key parts of the machine comes from China top or world well known manufacturer, such bearing, hydraulic system, lead screw.
(2)Processing equipment imported from USA, Europe or China top manufacturer
(3)Testing device imported from Germany, USA.
(4)We own professional design team using 2D and 3D design method.
(5)We own a professional production team
Q: Can we do OEM for you?
A: Yes
Q: Can I change the voltage as per customer’s needs?
A: Yes
Q: Pre-acceptance
A: (1)Welcome your visiting for inspection
(2)Taking inspection video and providing testing report
Q: Installation and training:
A: Installation:
(1)Have a high-skilled and high-quality installation and commissioning team;
(2)Take the initiative to provide customers with the bill of materials that the customer needs to prepare when the machine tool is installed before the machine tool is shipped;
(3)Engineering will install the machine do training on site
(4)Installation guide and video are provided for installation if the machine is delivered as a whole machine
(5)Live video can be connected with you for guiding customer to install it
(6)Provide timely and professional installation and commissioning services for Starfish machinery Training
(7)After installation, guide the user how to use the machine correctly.
(8)User’s manual is supplied.
