Vertical balancing machine all kinds of discoid parts, such as fan blade, brake disk,brake drum.saw blade.clutch,belt pulley,chuck,pump impeller,flywheel,grinding wheel,range hood fan,brake, torque converter,tool etc... It can add drilling device to remove material.
| Quantity: | |
|---|---|

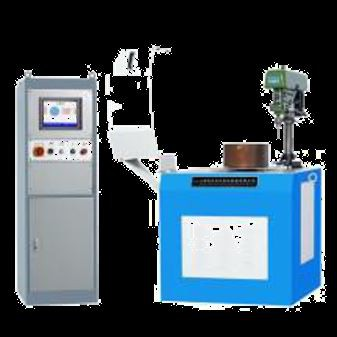

Introduction

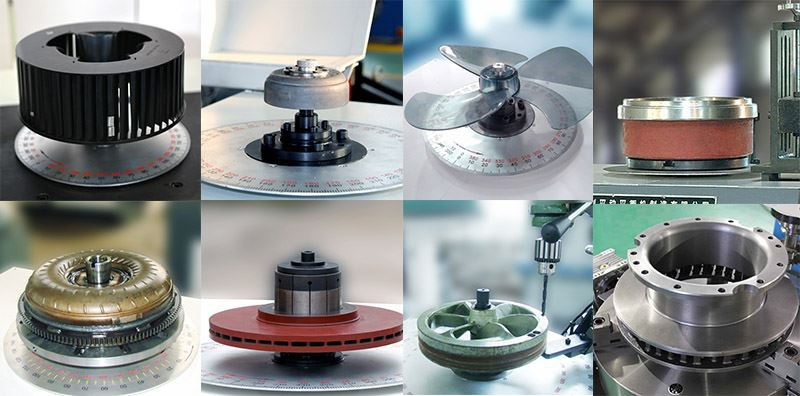

Vertical balancing machine all kinds of discoid parts, such as fan blade, brake disk,brake drum.saw blade.clutch,belt pulley,chuck,pump impeller,flywheel,grinding wheel,range hood fan,brake, torque converter,tool etc...
It can add drilling device to remove material.
Parameter of Vertical balancing machine
Technical data at a glance | SFLD-42H | SFLD-65H | SFLD-100 | SFLD-150Q | SFLD-200 | SFLD-350Q | |||
Max Mass of Workpiece (kg) | 42 | 65 | 100 | 150 | 200 | 350 | |||
Max Diameter of Workpiece (mm) | 5101) 8002) | 5101) 8002) | 6001) 10002) | Φ600 | 6001) 10002) | Φ600 | |||
Height of workpiece(mm) | 160 | 160 | 200 | 300 | 200 | 300 | |||
Spindle speed(r/min) | 800 | 700 | ~6004) | ~4504) | ~6004) | ~4504) | |||
Motor power(kw) | 1.53) | 2.23) | 33) | 33) | 43) | 43) | |||
Min Achievable Residual Unbalance Amount (emar) | 1g · mm/kg | 1g · mm/kg | 1g · mm/kg | 1g · mm/kg | 1g · mm/kg | 1g · mm/kg | |||
Technical data | PHLD-1100Q | PHLD-3500Q | |||||||
Max Mass of Workpiece (kg) | 1100 | 3500 | |||||||
Max Diameter of Workpiece (mm) | 1500 | 1500 | |||||||
Height of workpiece(mm) | 500 | 500 | |||||||
Spindle speed(r/min) | ~3404) | ~3404) | |||||||
Motor power(kw) | 7.53) | 153) | |||||||
Min Achievable Residual Unbalance Amount (emar) | 2g · mm/kg | 2g · mm/kg | |||||||
Technical data at a glance | SFLS-5Q | SFLS-35Q | SFLS-150Q | SFLS-350Q | |||||
Max Mass of Workpiece (kg) | 5 | 35 | 150 | 350 | |||||
Max Diameter of Workpiece (mm) | Φ350-500 | Φ400 | Φ600 | Φ600 | |||||
Height of workpiece(mm) | 130 | 220 | 300 | 300 | |||||
Spindle speed(r/min) | 1200 | 8004) | 4504) | 4504) | |||||
Motor power(kw) | 0.37 | 1.53) | 33) | 43) | |||||
Min Achievable Residual Unbalance Amount (emar) | 2g · mm/kg | 1g · mm/kg | 2g · mm/kg | 2g · mm/kg | |||||
Technical data at a glance | PHLS-5Q | PHLS-35Q | PHLS-150Q | PHLS-350Q | |||||
Max Mass of Workpiece (kg) | 5 | 35 | 150 | 350 | |||||
Max Diameter of Workpiece (mm) | Φ350-500 | Φ400 | Φ600 | Φ600 | |||||
Height of workpiece(mm) | 130 | 220 | 300 | 300 | |||||
Spindle speed(r/min) | 1200 | 8004) | 4504) | 4504) | |||||
Motor power(kw) | 0.37 | 1.53) | 33) | 43) | |||||
Min Achievable Residual Unbalance Amount (emar) | 2g · mm/kg | 1g · mm/kg | 2g · mm/kg | 2g · mm/kg | |||||
Strict Product Quality Control
Successful cases
Company Certificates:
Customers
