Max.turning diameter: 2500-16000mm
| Quantity: | |
|---|---|
Feature

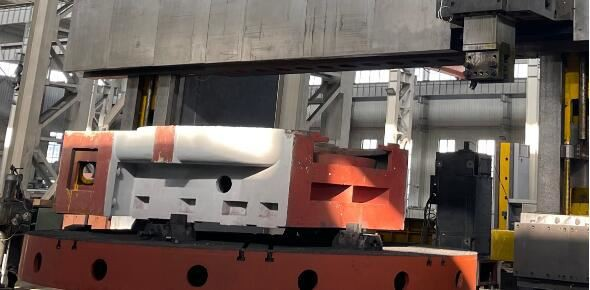

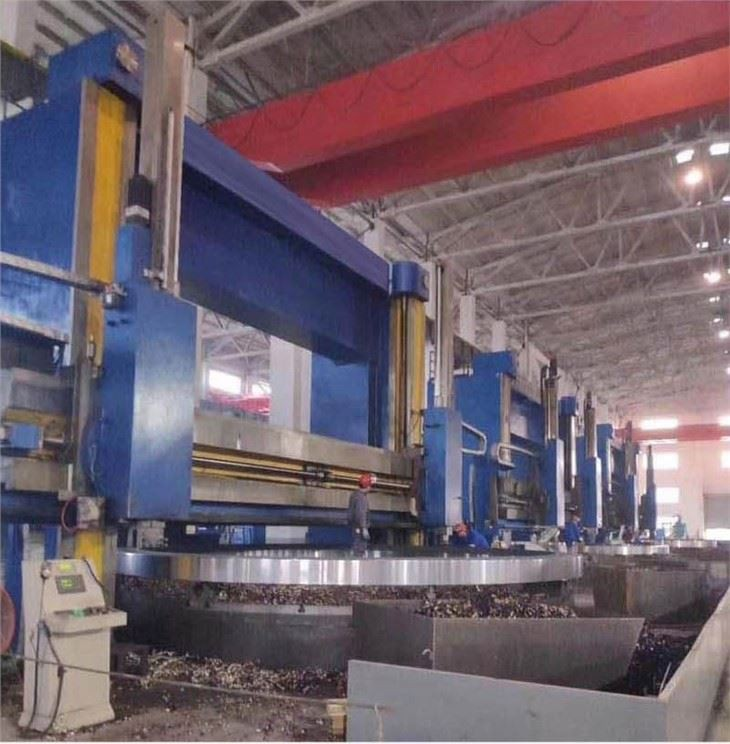

1. Double Column Vertical Lathe Machine are designed with hydrostatic bearings for better cutting performance. It is equipped with a variety of modern features and is best suited to the manufacturer's processing requirements. The machine can be compatible with automatic tool change system (ATC) and ATC as well as complex machining functions. Regarding the column heightening model, there is a double sliding column system. The cross beam can move up and down to achieve better cutting accuracy. Users can choose one to match their own processing needs.
2. With those models, factory operators can use advanced tools to assist in better processing. The China vertical lathe are capable of handling different types of tasks to meet a wide range of machining requirements.
4. The heavy-duty spindle incorporates a high precision hydrostatic bearing designed to withstand high axial and radial loads. In the hydrostatic system, pockets of oil between the base of the machine and the table eliminate contact between mating surfaces and promote friction-free operation. Power is transmitted through a Class 1 ring and pinion gear that provides a further gear reduction and torque multiplication.
5. The X and Z axes are a box way design that facilitates heavy duty machining and high precision. The rigid twin column design and heavy base are best castings, heavily ribbed to minimize thermal distortion and dampen vibration.
Specification
The vertical lathe Machine can be equipped with C axis
Item | Unit | CK5240 | CK5250 | CK5263 | CK5280 | CK52100 |
Max. Turning diameter | mm | 4000 | 5000 | 6300 | 8000 | 10000 |
Max. Workpiece height | mm | 1600/2000/ 2200 | 4000 | 4000 | 4000 | 4000 |
Worktable diameter | mm | 3150 | 4500 | 5700 | 7100 | 7500 |
Max. Worktable weight | t | 10/16/32 /40/50/63 | 32/40/50 /63150 | 63/80 /100/150 | 100/125/150 | 150/250 |
Worktable rotation step | stepless | stepless | stepless | stepless | stepless | |
Worktable rotation speed | r/min | 2~63 | 0.32~32 | 0.32~32 | 0.32~32 | 0.2~20 |
Max. Worktable torque | KN·m | 63 | 150 | 150 | 150 | 640 |
Max. Turning Torque of Tool post | KN | 53 | 63 | 63 | 63 | 125 |
Right tool feeding range | mm/min | 0.25~90 | 0.10~500 | 0.10~500 | 0.10~500 | - |
Right tool post rapid movement | mm/min | 1550 | 4000 | 4000 | 4000 | 4000 |
Left tool post rapid movement | mm/min | 5000 | 4000 | 4000 | 4000 | 4000 |
Left tool post feeding range | mm/min | 1-2000 | 0.10~500 | 0.10~500 | 0.10~500 | - |
Swing angle of tool post | ±30º | - | - | - | - | |
Tool section | mm | 40×50 | 280x280 | 280x280 | 280x280 | 80x80 |
Ram section | mm | - | - | - | - | 320x320 |
Beam travel | mm | 1250/1650/1850/2150/2800/3500 | 2150/2800/3000/4500 | 3000/3500/4500 | 3000/3500/4500/5000 | 3250/3750/4500/5000 |
Beam lifting speed | mm/min | 350 | 410 | 410 | 410 | 300 |
Main motor power | kW | 55 | 75/90 | 90 | 90/132 | 132 |
Weight | t | 47 | 200 | 215 | - | - |
