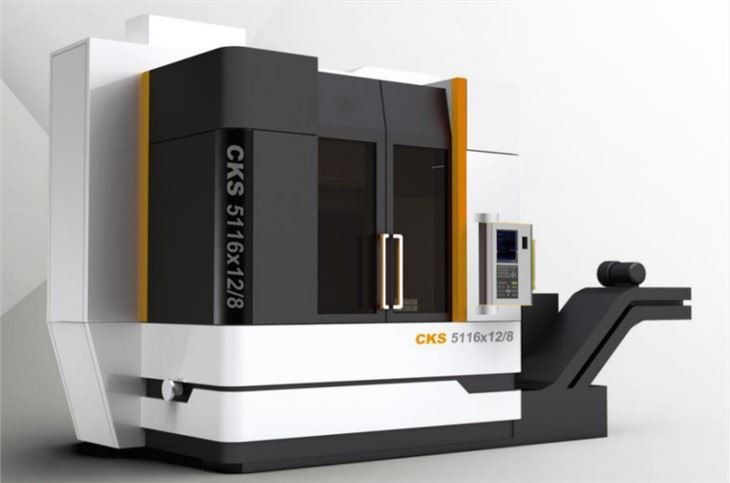

High Speed CNC Single Column Vertical Lathe
| Quantity: | |
|---|---|
Introduction of High Speed CNC Single Column Vertical Lathe
CKS51 series CNC high-speed single-column vertical lathe is our company absorbing contemporary advanced design and manufacturing technology, adopting CAD optimization design method, implementing enterprise precision standards, equipped with domestic and foreign advanced functional components, and realizing strong cutting in structural performance.
It is a high-tech mechatronic product with heavy load, high dynamic and static rigidity of machine tool, safe and reliable movement, long service life and high processing efficiency.
Main purpose and application of High Speed CNC Single Column Vertical Lathe
This machine tool is a CNC single-column vertical lathe, which adopts a beam fixed structure and is suitable for batch processing of parts with a large variety of parts.
This machine tool is suitable for rough and finish machining of ferrous, non-ferrous and non-metallic parts with high-speed steel and cemented carbide tools, and can process inner and outer cylindrical surfaces, end surfaces, inner and outer conical surfaces, etc.
Main parameter of High Speed CNC Single Column Vertical Lathe
| S/N | Main Item | Unit | Parameter |
| 1 | Max.Turning diameter | mm | 1250 |
| 2 | Max.swing diameter | mm | 1300 |
| 3 | Worktable diameter | mm | Φ1000 |
| 4 | Max.turning height | mm | 600 |
| 5 | Max.loading weight | kg | 2000 |
| 6 | Worktable rotation step | Step | Stepless |
| 7 | Max worktable torque | KN.m | 10 |
| 8 | Worktable rotation speed | r/min | 0-400 |
| 9 | Tool post horizontal travel | mm | -20-850 |
