Max.turning diameter: 2500-16000mm
| Quantity: | |
|---|---|

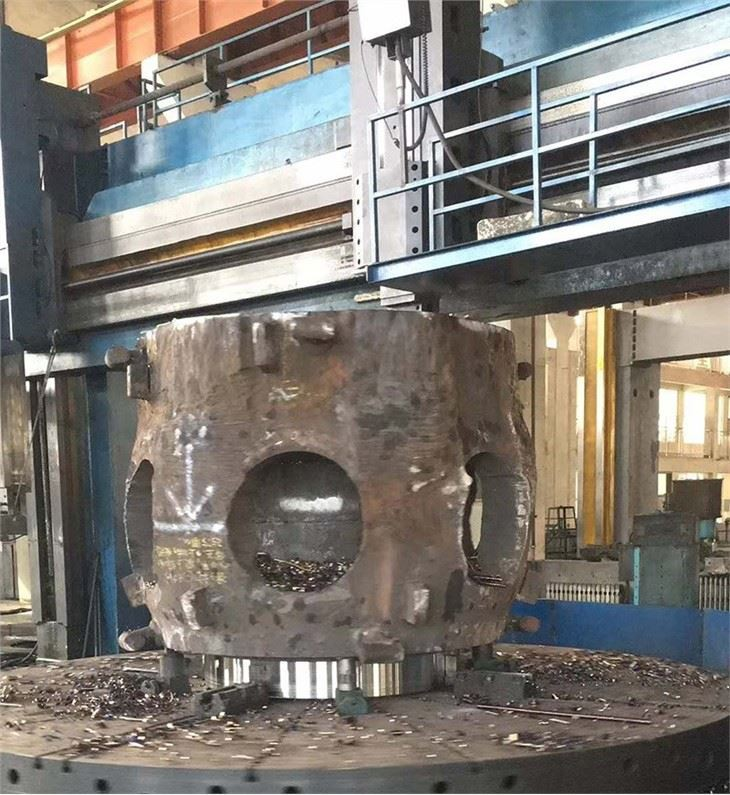

Feature
1. This series Double Vertical Turret CNC Lathes is suitable for internal and external turning, internal and external tapering, facing, slotting, thread, contour surface turning etc.
2. The spindle drive adopts servo motors, through 16 steps spindle speed changing unit, to make work table realize stepless speed regulation.
3. Feed system adopts AC servo motor drive leadscrew though gear box.
4. Tow axis feed system all adopts leadscrew, both ends fixed and prestretching, advanced high rigidity.
5. Double Vertical Turret CNC Lathes adopts SIEMENS, FANUC system and servo motor
Specification
The vertical lathe can be equipped with C axis
Item | Unit | CK5225 | CK5235 | CK5240 | CK5250 | CK5263 | CK5280 | CK52100 | CK52125 | CA52160 |
Max. Turning diameter | mm | 2500 | 3500 | 4000 | 5000 | 6300 | 8000 | 10000 | 12500 | 16000 |
Max. Workpiece height | mm | 1600/2000 /2200 | 1600/2000/ 2200 | 1600/2000/ 2200 | 4000 | 4000 | 4000 | 4000 | 5500 | 10000 |
Worktable diameter | mm | 2250 | 2850 | 3150 | 4500 | 5700 | 7100 | 7500 | 7500 | 5500 /6000/7000 |
Max. Worktable weight | t | 10/16 | 10/16/20/32 | 10/16/32 /40/50/63 | 32/40/50 /63150 | 63/80 /100/150 | 100/125/150 | 150/250 | 250 | 400 |
Worktable rotation step | stepless | stepless | stepless | stepless | stepless | stepless | stepless | stepless | ||
Worktable rotation speed | r/min | 2~63 | 2~63 | 2~63 | 0.32~32 | 0.32~32 | 0.32~32 | 0.2~20 | 0.16～16 | 0.1-10 |
Max. Worktable torque | KN·m | 63 | 63 | 63 | 150 | 150 | 150 | 640 | 640 | 1000 |
Max. Turning Torque of Tool post | KN | 53 | 53 | 53 | 63 | 63 | 63 | 125 | - | |
Right tool feeding range | mm/min | 0.25~90 | 0.25~90 | 0.25~90 | 0.10~500 | 0.10~500 | 0.10~500 | - | 0.10~500 | - |
Right tool post rapid movement | mm/min | 1550 | 1550 | 1550 | 4000 | 4000 | 4000 | 4000 | 4000 | - |
Left tool post rapid movement | mm/min | 5000 | 5000 | 5000 | 4000 | 4000 | 4000 | 4000 | 4000 | - |
Left tool post feeding range | mm/min | 1-2000 | 1-2000 | 1-2000 | 0.10~500 | 0.10~500 | 0.10~500 | - | 0.10~1000 | - |
Swing angle of tool post | ±30º | ±30º | ±30º | - | - | - | - | - | - | |
Tool section | mm | 40×50 | 40×50 | 40×50 | 280x280 | 280x280 | 280x280 | 80x80 | 100x100（Max） | - |
Ram section | mm | - | - | - | - | - | - | 320x320 | 400x400 | 400/500 |
Beam travel | mm | 1250/1650/1850 | 1250/1650/1850/2150/2800 | 1250/1650/1850/2150/2800/3500 | 2150/2800/3000/4500 | 3000/3500/4500 | 3000/3500/4500/5000 | 3250/3750/4500/5000 | 4000/4500/5000 | 4000/5000/5500 |
Beam lifting speed | mm/min | 350 | 350 | 350 | 410 | 410 | 410 | 300 | 300 | |
Main motor power | kW | 55 | 55 | 55 | 75/90 | 90 | 90/132 | 132 | 132 | 160 |
Weight | t | 41 | 45 | 47 | 200 | 215 | - | - | 465 |
