Chian professional CK52125 CNC Vertical Lathe manufacturer
| Quantity: | |
|---|---|

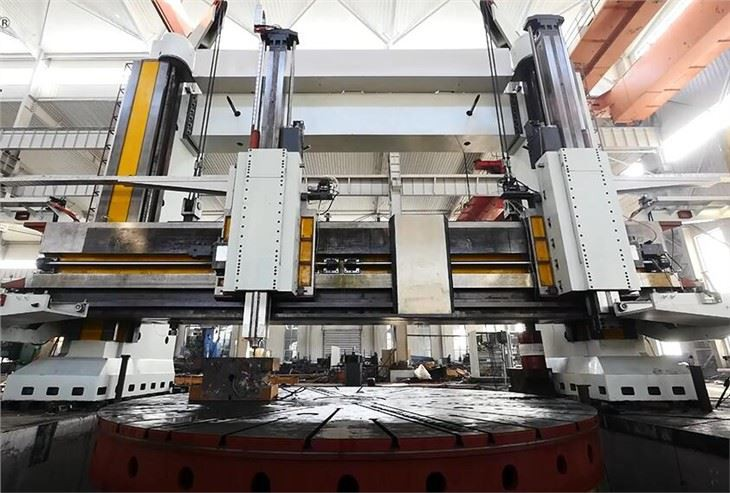

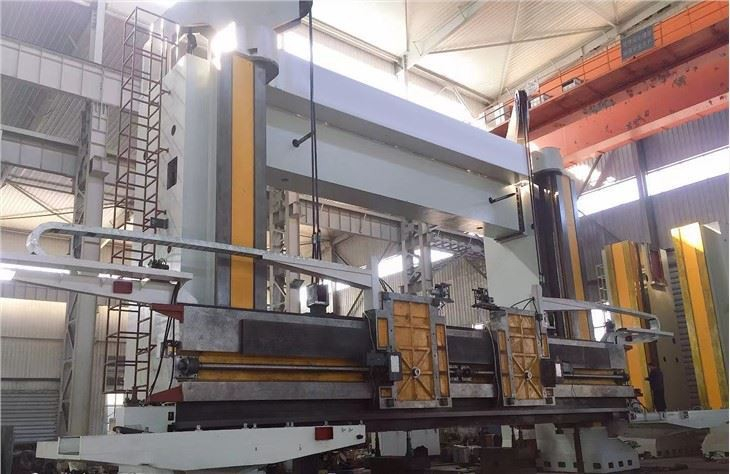

Feature of CK52125 CNC Vertical Lathe
CK52125 CNC Vertical Lathe is suitable for single-piece and small-batch processing of parts with large variety of parts. This machine tool is suitable for disc-shaped parts. The maximum turning diameter is 12500mm.
This machine tool is suitable for high-speed steel, carbide cutting tools and ceramic cutting tools. It can rough and finish parts of ferrous metals, non-ferrous metals and some non-metallic materials. It can turn inner and outer cylindrical surfaces, inner and outer conical surfaces, grooves, end faces, male and female Inch thread and complex rotary surfaces; and can perform drilling, boring, milling, grinding and other processes on the end face of the part, as well as the milling plane of the outer surface and the boring process with a small boring depth.
Parameter of CK52125 CNC Vertical Lathe
Item | Unit | CK52125 |
Max. turning diameter | mm | 12500 |
Max. Workpiece height | mm | 5500 |
Worktable diameter | mm | 7500 |
Max. Worktable weight | t | 250 |
Worktable rotation step | stepless | |
Worktable rotation speed | r/min | 0.16～16 |
Max. Worktable torque | KN·m | 640 |
Max. Turning Torque of Tool post | KN | |
Right tool feeding range | mm/min | 0.10~500 |
Right tool post rapid movement | mm/min | 4000 |
Left tool post rapid movement | mm/min | 4000 |
Left tool post feeding range | mm/min | 0.10~1000 |
Swing angle of tool post | - | |
Tool section | mm | 100x100（Max） |
Ram section | mm | 400x400 |
Beam travel | mm | 4000/4500/5000 |
Beam lifting speed | mm/min | 300 |
Main motor power | kW | 132 |
Weight | t | 465 |

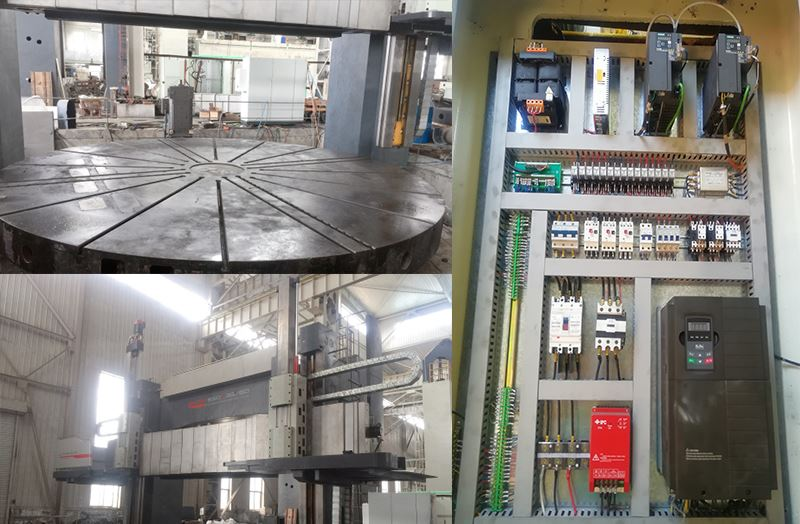

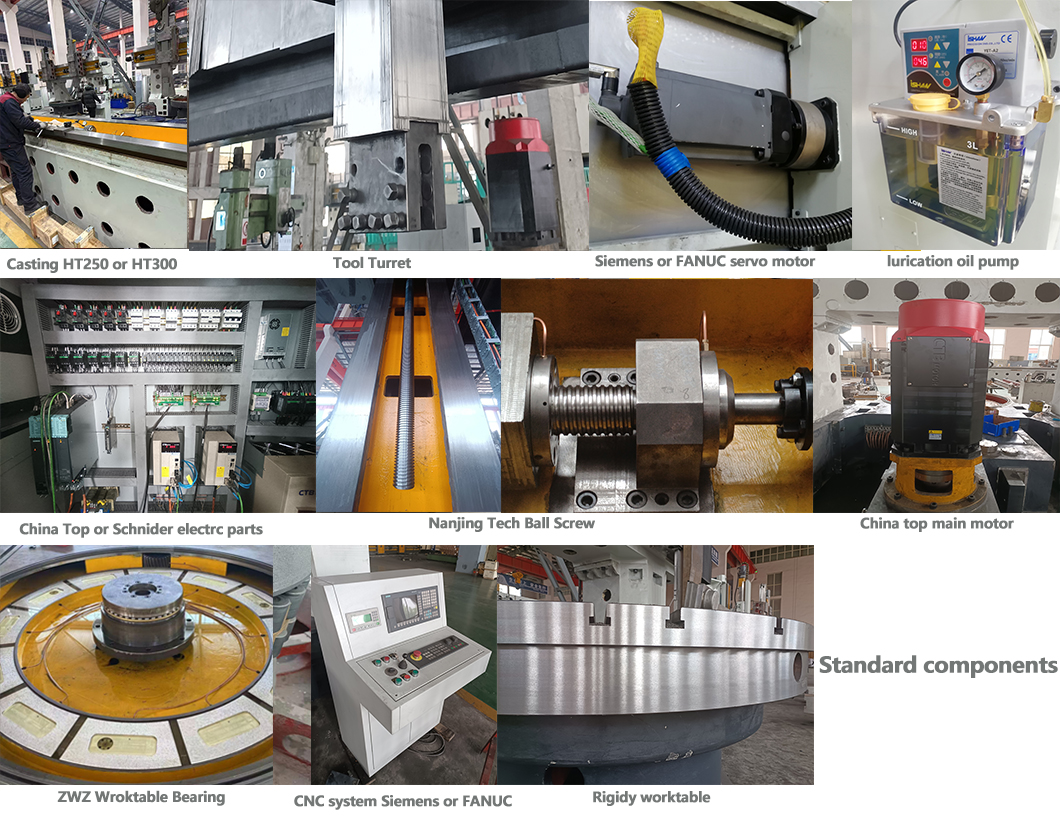

Details

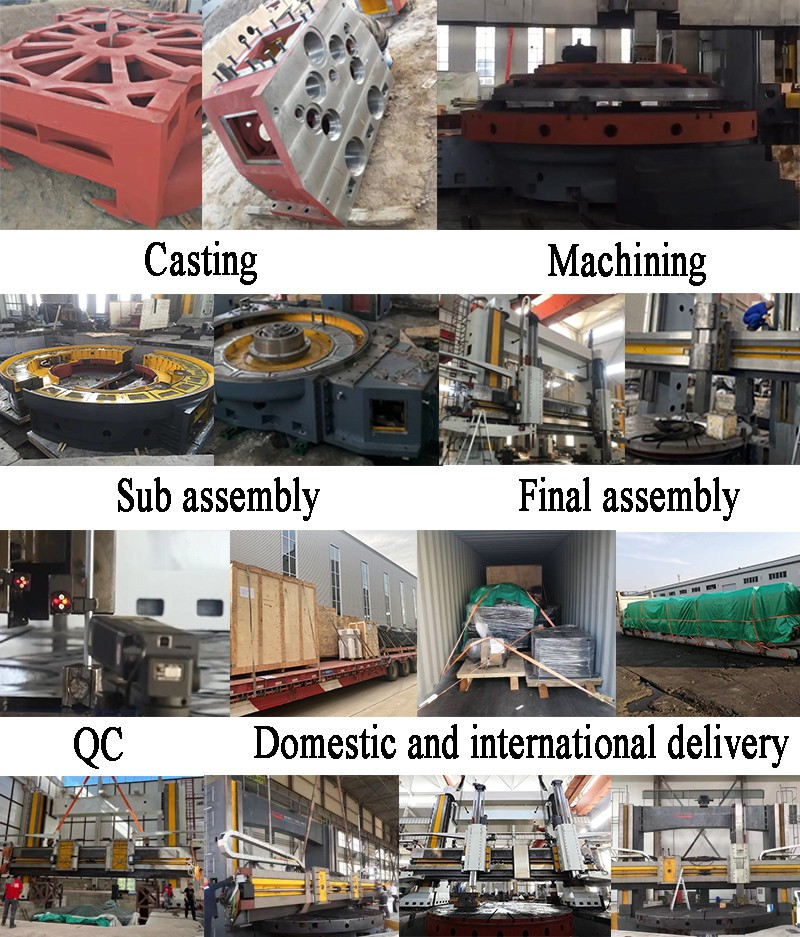

Work flow
