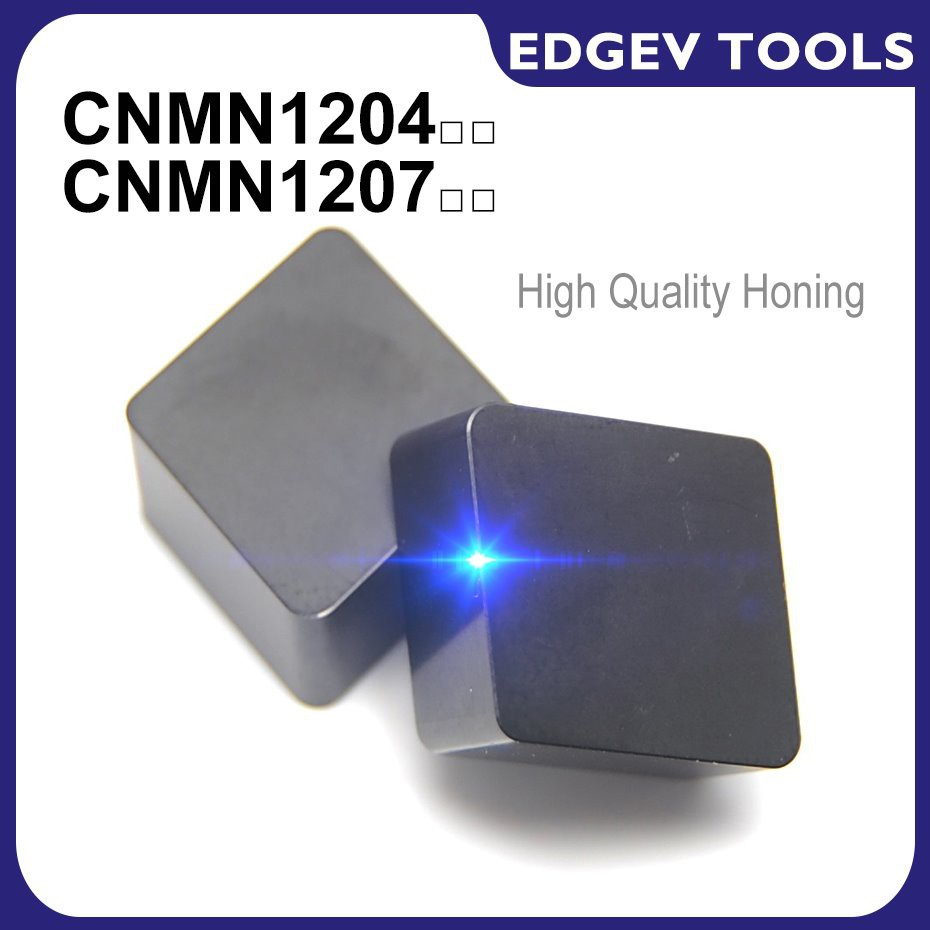

EDGEV Solid CBN Insert CNMN120404 CNMN120704 CNMN120708 CNMN120712 Lathe Pcbn Cutter Turning Tool Hardended Steel Cast Iron Roll
| Quantity: | |
|---|---|
EDGEV Solid CBN CNMN Insert CNMN120404 CNMN120704 CNMN120708 CNMN120712 Lathe Pcbn Cutter Turning Tool Hardended Steel Cast Iron Roll
Products Parameters:
01. Brand Name: EDGEV
02. Description: 90 Degree Suqare Negative CNC Solid CBN Insert

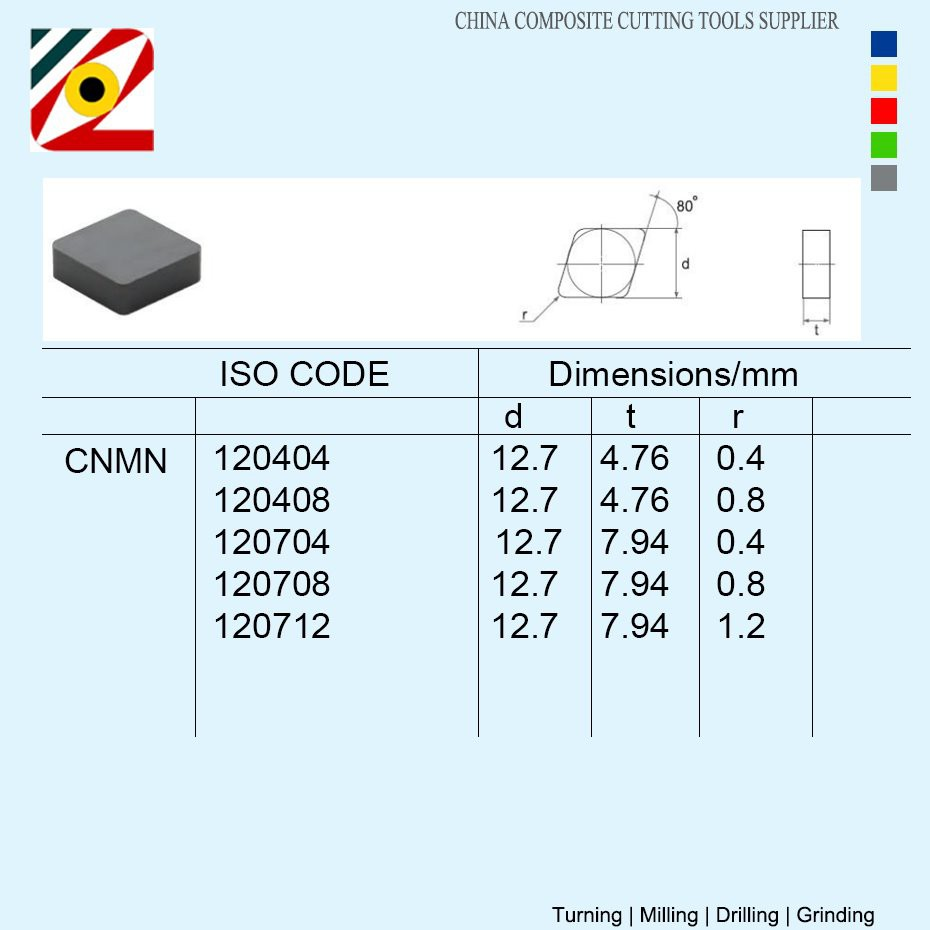

03. ISO Specification:
CNMN120404/08 (Internal Diameter12.70mm*Thickness4.76*Nose Radius 0.4/0.8)
CNMN120708/12 (Internal Diameter12.70mm*Thickness7.94*Nose Radius 0.8/1.2)

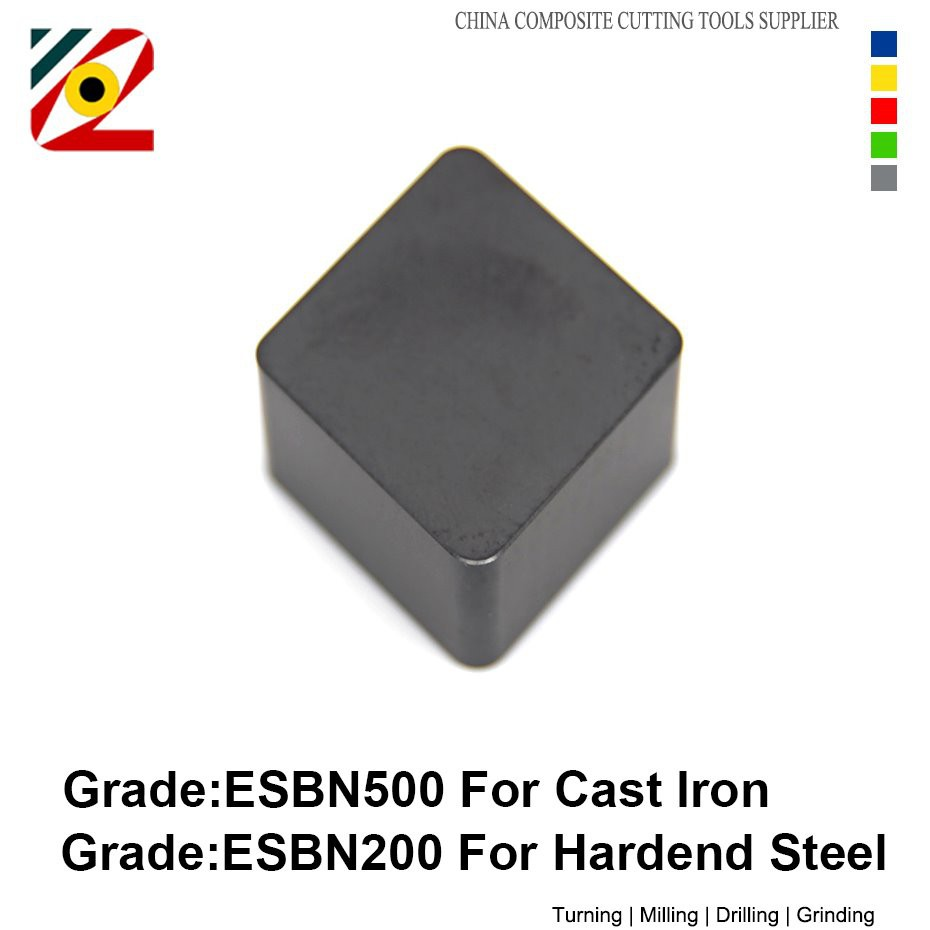

04. Grade:
ESBN200For (H) Hardened Steel
ESBN500For (K) Cast Iron
05. Features: Excellent wear resistance and excellent impact and shock resistance
06. Application: Suitable for continuous and interrupted turning and milling with high cutting speed of alloy steel, hardened steel and bearing steel and cast iron.
07. Work Piece Hardness: HRC45~65

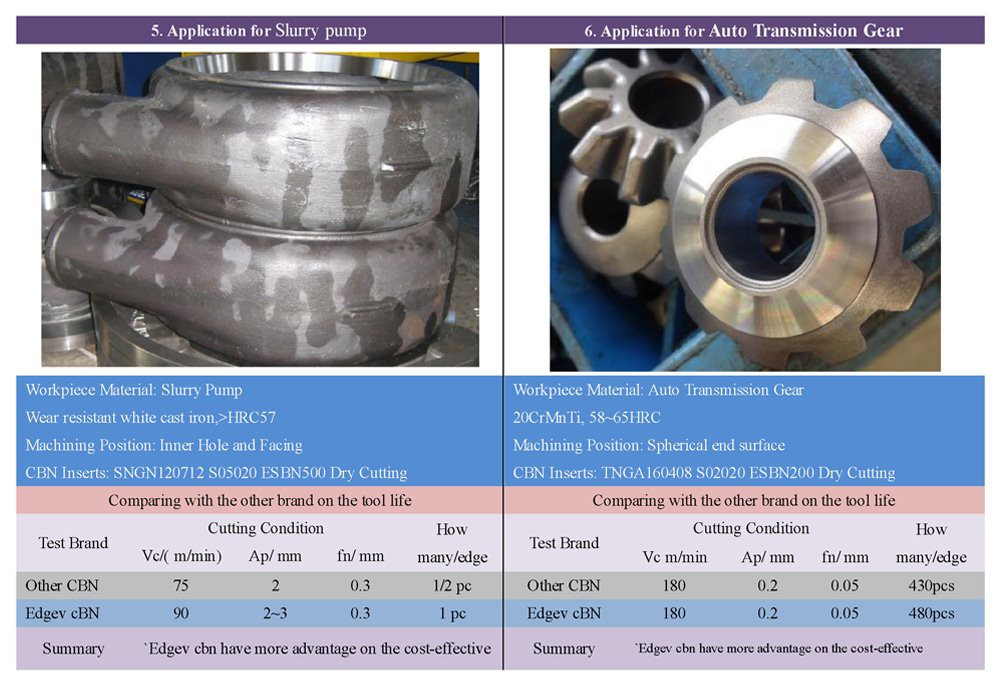

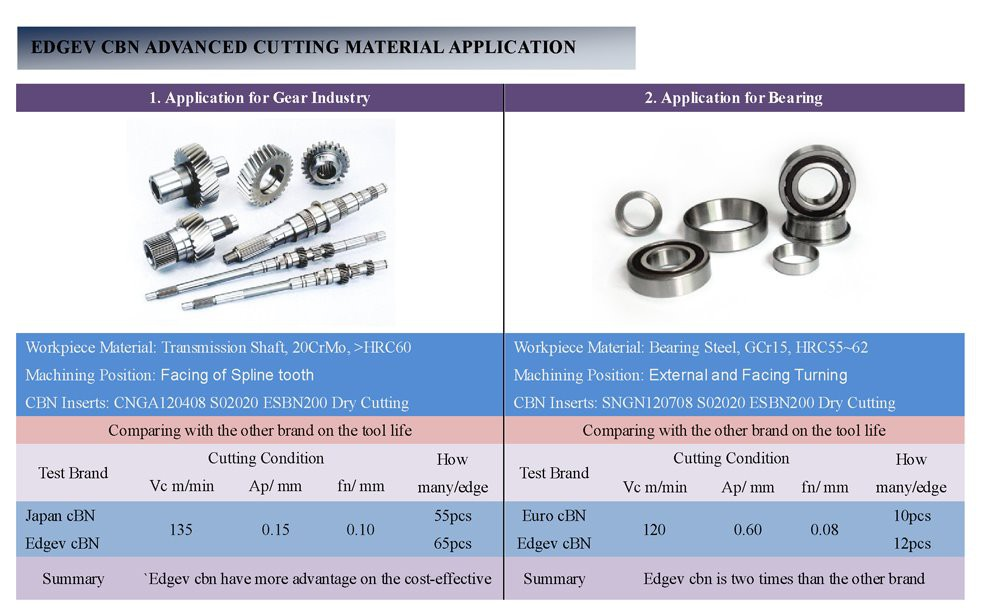

08. Suitable Work Piece: Break disc, Belt pulley, Gear, Bear, Metallurgical roll, Pump, Mining machinery, Brake drum, Brake disc, Metallurgical roll, Big gear, Slewing bearing industry, Gearing industry, bearing industry
09. Application Range: From Finishing to Semi-finishing Roughing
Our CBN Grades:
ESBN200: 60% CBN Content, Excellent wear resistance, suitable for high speed cutting continuous of hardened steel, alloy material. Precision processing of hardened bearings
ESBN350: 80% CBN Content, It’s the outstanding common material of balance wear resistance and shock resistance and economy. Low speed cutting of high hardness High-Ni-Cr, high-chromium steel, high-speed steel, harden steel. high speed cutting of gray cast iron, nodular cast iron, low-speed cutting of the carbide tungsten roll ring.
ESBN500: 90% CBN Content, High Wear resistance, impact resistance. Apply to the high-speed cutting of the gray cast-iron work pieces.
How to Identify Edge Preparation?
Symbol: F, That means is Sharper Edge, applied for Finishing
Symbol: T, That means is Chamfered Edge, applied for finishing to semi-finishing, for example:T00520(0.05mm*20 degree)

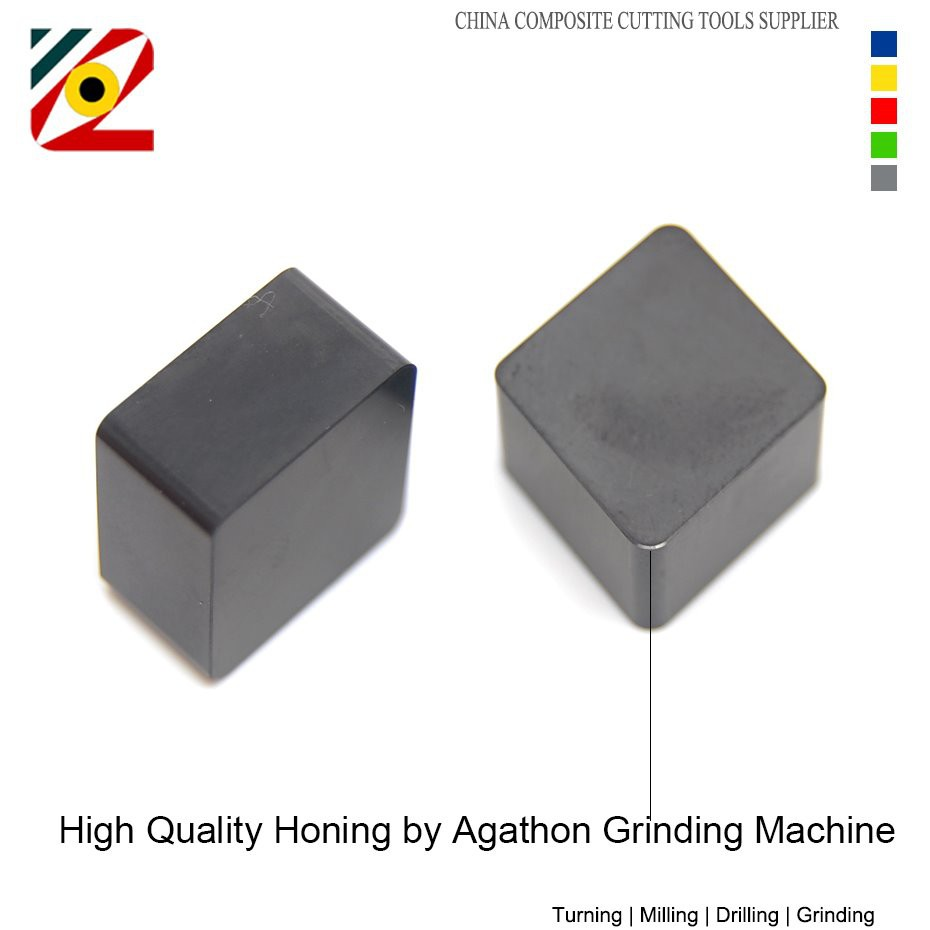

Symbol: S, That means is Chamfered and honed Edge, applied for roughing to semi-finishing, for example:S01020(0.1mm*20 degree)
