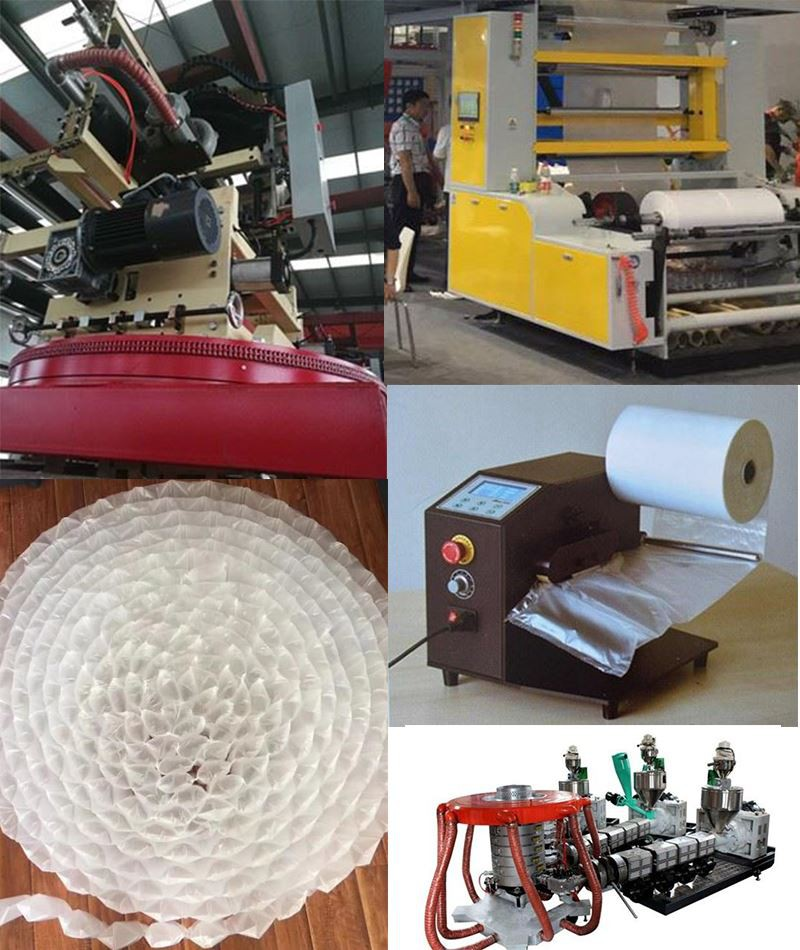

Application of Mini Air Sealed Bag Film Blowing Machines The mini air sealed bag film blowing machine mainly produce the mini air sealing bag film(mini air cushion bag film),the cusion film is widely used in transport packaging. Every day in the world, this film is used in Amazon, tmall, Taobao,...
| Quantity: | |
|---|---|
Application of Film Extruder Machine
This plastic machinery groups mainly produce the mini air sealing bag film(mini air cushion bag film),the cusion film is widely used in transport packaging. Every day in the world, this film is used in Amazon, tmall, Taobao, IBM and other e-commerce and express industries.

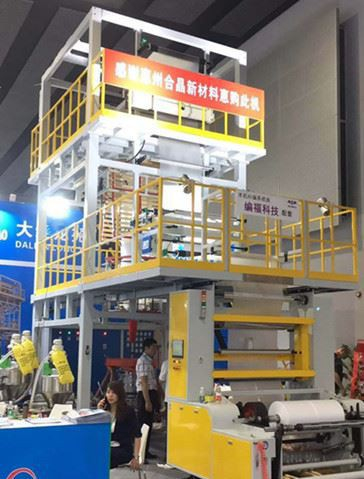

This unit is mainly equipped with 3 sets extruders, equipped with haul-off oscillating rotary tower system, EPC system, Siemens PLC, auto winder and the hot slitting and sealing system,also can equipped with the one color or two color printing machine online 1 or 2 color printing,so the efficiency is improved, the output is increased.
Parameter of Film Extruder Machine
Type of the machine | SJGM-Z50×30×2+55×30×1-1300 | SJGM-Z45×30×3-1100 | SJGM-Z55×30×2+ 50×30×1-1300 |
max film width | 800mm/1000mm | 600mm | 800mm/1000mm |
thickness of the film | 0.013mm-0.03mm | 0.013mm-0.03mm | 0.013mm-0.03mm |
max output | 50kg/h - 80kg/h - 50kg/h | 50kg/h-50kg/h-50kg/h | 80kg/h - 50kg/h - 80kg/h |
Extrusion Unit | |||
main motor | 22kw / 30kw / 22kw | 15kw / 18.5kw / 15kw | 30kw / 22kw / 30kw |
screw diameter | Φ50mm-Φ55mm-Φ50mm | Φ45mm-Φ45mm-Φ45mm | Φ55mm-Φ50mm-Φ55mm |
screw and barrel material | SACM645(38CrMoA1A) | SACM645(38CrMoA1A) | SACM645(38CrMoA1A) |
screw ratio L/D | 30:1 | 30:1 | 30:1 |
barrel air cooling fans | 0.24kw×3 | 0.24kw×3 | 0.24kw×3 |
type of screen changer | Non-disassemble manual screen changer | Non-disassemble manual screen changer | Non-disassemble manual screen changer |
Die Unit | |||
type of the diehead | stationary die | stationary die | stationary die |
die diameter | HDPE Φ80mm / Φ120mm | HDPE Φ80mm | HDPE Φ140mm |
air blower fan | 5.5kw | 4kw | 5.5kw |
Haul-Off Unit | |||
type of the tower | oscillating tower | oscillating tower | oscillating tower |
haul-off roller dia.& width | Φ210×1300mm | Φ210×1100mm | Φ210×1300mm |
haul-off motor | 1.5kw | 1.5kw | Φ213×1100mm |
height of the machine | 7m | 6.2m | 8m |
Winder Unit | |||
type of winder | Auto single winder | Auto single winder | Auto single winder |
winder roller dia.& width | Φ300×1300mm | Φ300×1100mm | Φ300×1300mm |
winder roller motor | 1.5kw | 1.5kw | 1.5kw |
max roll diameter | Φ1000mm | Φ1000mm | Φ1000mm |

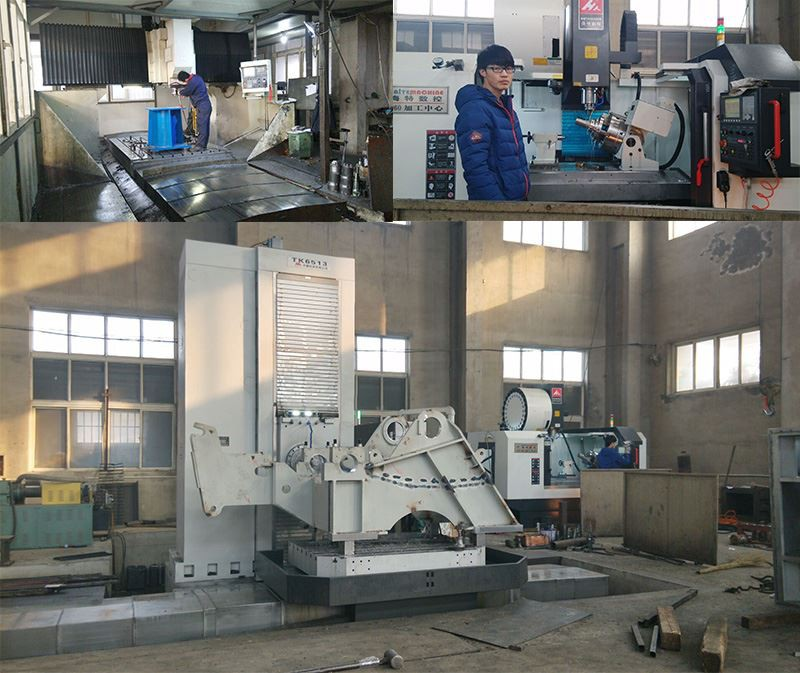

Main machining facilities
Workshop

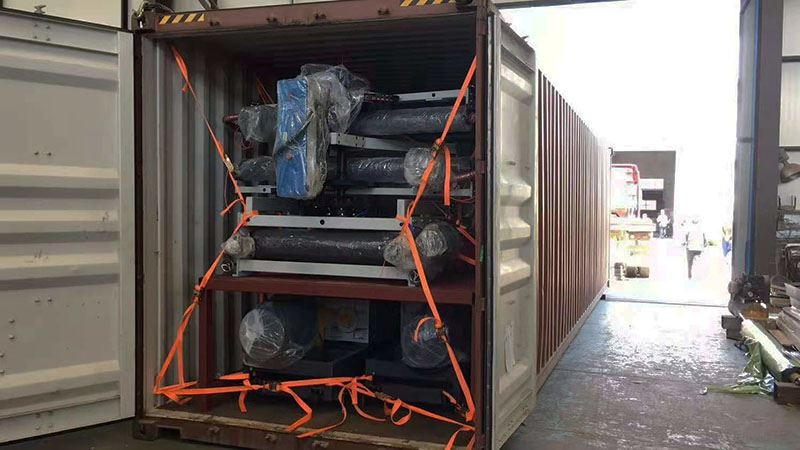

Delivery
1.Q: Are you a factory or trading company?
A: The company is established in 1996, an actual factory
2.Q: Where is your factory loaded? How can I visit there?
A: Our factory located in Dalian city, Liaoning Province, China, about one hour by air from Dalian, a hot sort for tourist, All our clients, from home or abroad, are warmly welcome to visit us.
3.Q: Which industries are widely used in of your machine?
A: Bag making machine, film blowing machine, printing machine.
4.Q: How about the payment term?
A: For new customer, our payment term is 30% T/T in advance before production, the balance 70% should be paid before delivery.
5.Q: What about your main market?
A: Our products be sold well in 30 provinces in China and have good reputation in China, also we pay attention to developing the oversea market, such as Europe, Russia, Southeast Asia, Middle and South America, Africa, and other countries.
6.Q: How does your factory do regarding quality control?
A: Quality is the most important principle, we always attach great impartance to quality controlling from the every beginning to the every end. Our factory has passed SGS and CE certifications.
