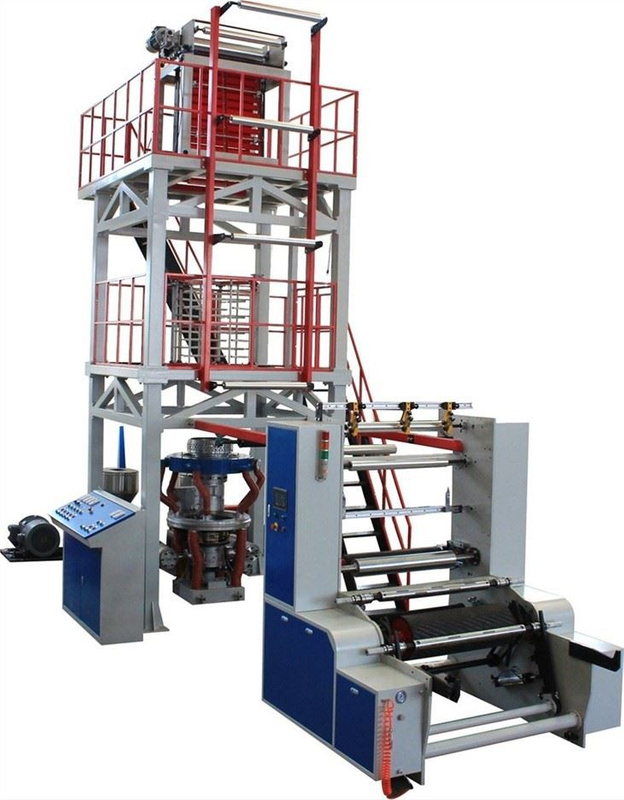

Application of Two Layer Tissues Package Film Blown Machines This two layers tissues package film blown machine mainly produce sanitary towel,paper film, diaper packaging film,high quality shopping bags film.you can adopt two layers machine, or single layer machine or three layers machine.the...
| Quantity: | |
|---|---|
Application of Two Layer Tissues Package Film Blown Machines
This two layers tissues package film blown machine mainly produce sanitary towel,paper film, diaper packaging film,high quality shopping bags film.you can adopt two layers machine, or single layer machine or three layers machine.the following configuration list is for two layers machine,different configuration list.
Parameter of Two Layer Tissues Package Film Blown Machines
Type of the machine | SJM-Z40×32×2-850mm |
max film width | 650mm |
thickness of the film | About 0.06mm |
max output | 50kg/h |
Extrusion Unit | |
main motor | 11kw×2 |
screw diameter | Φ40mm |
screw and barrel material | SACM645 (38CrMoA1A) |
screw ratio L/D | 32:1 |
barrel air cooling fans | 0.24kw×3 |
type of screen changer | Manual arm |
Die Unit | |
type of the diehead | rotary die |
die diameter | Φ120mm -Φ160mm |
air blower fan | 3kw /4kw |
Haul-Off Unit | |
type of the tower | Fixed tower |
haul-off roller dia.& width | Φ163×850mm |
haul-off motor | 1.5kw |
height of the machine | 5m |
Winder Unit | |
type of winder | single winder or double winder |
Other parts: corona | |
Delivery
Delivery
Trouble shooting
1. Before delivery :Special QC department check carefully ensure all is qualified with high quality
2. Through see customer actual photos or video, using discussed group or email or video meeting or phone call give solutions immediately
3. Dispatch engineer go to customer workshops onsite
