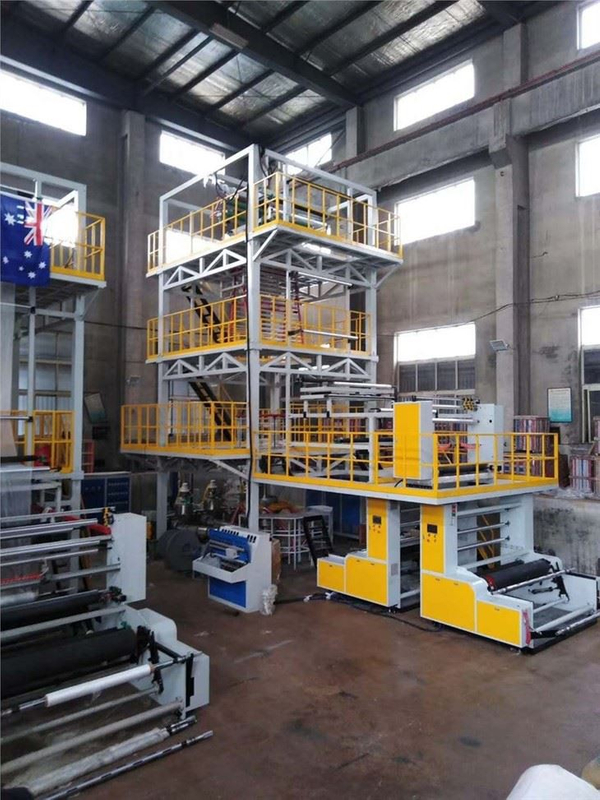

Application of Film Blown Machines For Liquid Packing This pe film blow molding machine mainly produce liquid packing film.This unit just a normal configuration, equipped with IBC system, Oscillating tower,automatic winder, can meet the general requirement. This unit mainly producing the film...
| Quantity: | |
|---|---|
Application of Film Blown Machines For Liquid Packing
This pe film blow molding machine mainly produce liquid packing film.This unit just a normal configuration, equipped with IBC system, Oscillating tower,automatic winder, can meet the general requirement.
This unit mainly producing the film from LDPE,LLDPE,MLLDPE,HDPE,EVA resin, the film widely use for packaging the food,fruit, textile,industrial products,etc. such as high-value film.
This machine adopts the oscillating system,so the film is much easier to laminate in high speed and print in multicolors
This unit adopts IBC system(inner bubble cooling system),so the film much transparency and the output is much higher.
The following configuration list is general configuration for three layers machine, you also can choose high standard configuration and 5 layers machine or 7 layers machine, please check another configuration lists.
Parameter of Film Blown Machines For Liquid Packing
Type of the machine | SJM- Z55×30×2+Z65×30×1-1800mm |
max film width | 《1600mm |
thickness of the film | 0.03-0.10mm |
max output | 150-180kg/h |
Extrusion Unit | |
main motor | 30kw×2+37kw×1 |
screw diameter | Φ55mm×2+Φ65mm×1 |
screw and barrel material | SACM645 (38CrMoA1A) |
screw ratio L/D | 30:1 |
barrel air cooling fans | 0.24kw×3×2+0.37kw×4×1 |
type of screen changer | Manual arm or Hydraulic |
Die Unit | |
type of the diehead | stationary die |
die diameter | Φ350mm |
air blower fan | 5.5kw/7.5kw |
Haul-Off Unit | |
type of the tower | Oscillating tower |
haul-off roller dia.& width | Φ210×1800mm |
haul-off motor | 1.5kw |
height of the machine | 11.5m |
Winder Unit | |
type of winder | Automatic back to back winder |
Other parts | |
IBC system | |
Delivery
