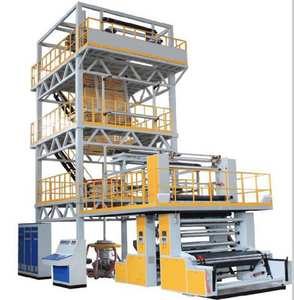

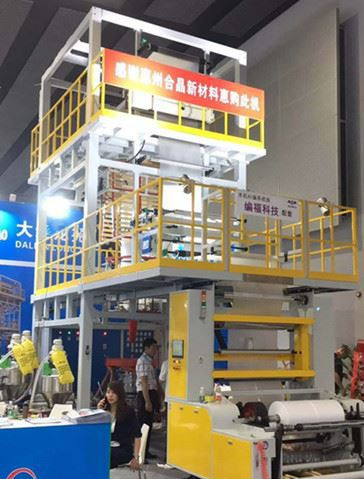

Introdution of PE Extrusion Film Machines
PE Extrusion Film Machines is used for blowing high-low pressure polyethylene, which has been widely used for producing laminating film, packing film, agricultural covering film, bag or film for textile and clothing and other packing material. The main motor adopts frequency control of motor speed to improve the speed regulating stability of main motor and save electricity by 30%.
The screw and barrel adopt 38 chrome- molybdenum aluminum which has been nitrogen treated and the traction frame adopts lifting type. No matter what size the film is, big or small, it can achieve the best effect of cooling.
Features of PE Extrusion Film Machines

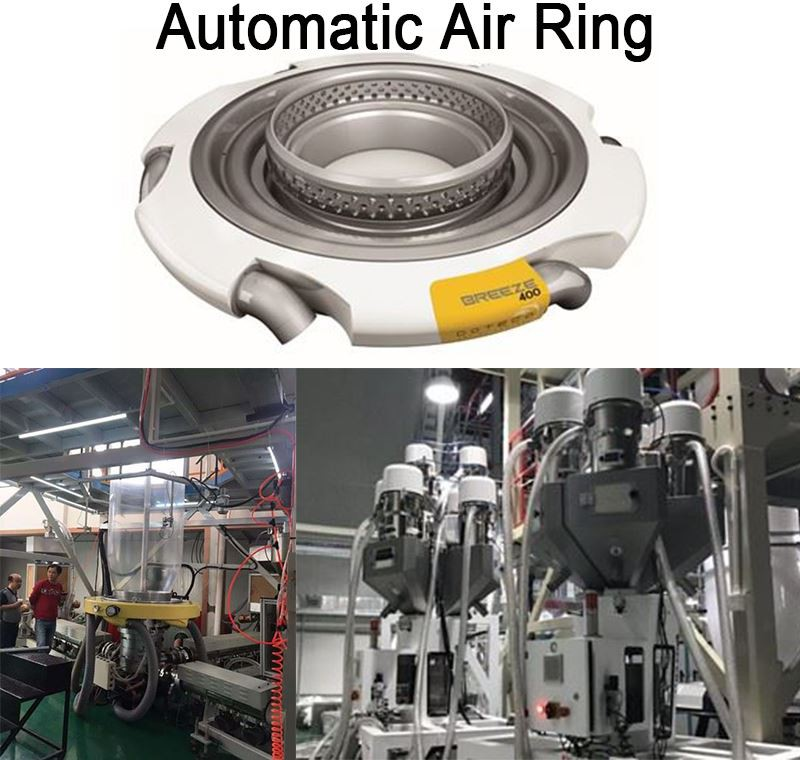

1.The cylinder and the screw stem of the extruder are made of high quality alloy steel with optimum hardness and durable service after precision finishing and nitrogen treatment. 2.The auxiliary machine has a platform working table for making operation easy and is equipped with bubble stabilizing ring. 4.Double-rolling and double-cutting coiling unit adopts torque motor to keep proper tensions and make rolling even and roll- changing easy.
Parameter of PE Extrusion Film Machines
Type of the machine | SJGM-Z55×30×3-1600 | SJGM-Z55×30×2+65×30×1-1800 | SJGM-Z65×30×2+75×30×1-2200 | SJGM-Z75×30×3-2600 |
max film width | 1400mm | 1600mm | 2000mm | 2400mm |
thickness of the film | 0.02mm-0.15mm | 0.02mm-0.15mm | 0.02mm-0.15mm | 0.02mm-0.15mm |
max output | 120kg-150kg/h | 200kg/h | 300kg/h | 250kg-400kg/h |
Extrusion Unit | ||||
main motor | 30kw×3 | 30kw×2+37kw×1 | 37kw×2+55kw1× | 55kw×3 |
screw diameter | Φ55mm×3 | Φ55mm×2+Φ65mm×1 | Φ65mm×2+Φ75mm×1 | Φ75mm×3 |
screw and barrel material | SACM645(38CrMoA1A) | SACM645(38CrMoA1A) | SACM645(38CrMoA1A) | SACM645(38CrMoA1A) |
screw ratio L/D | 30:1 | 30:1 | 30:1 | 30:1 |
barrel air cooling fans | 0.24kw×3×3 | 0.24kw×3×2+0.37kw×4×1 | 0.37kw×4×2+0.37kw×5×1 | 0.37kw×5×3 |
Die Unit | ||||
type of the diehead | stationary die | stationary die | stationary die | stationary die |
die diameter | Φ300mm | Φ400mm | Φ600mm | Φ700mm |
air blower fan | 11kw | 11kw | 15kw | 15kw |
Haul-Off Unit | ||||
type of the tower | Oscillating tower | Oscillating tower | Oscillating tower | Oscillating tower |
haul-off roller dia.& width | Φ210×1600mm | Φ210×1800mm | Φ210×2200mm | Φ210×2600mm |
Winder Unit | ||||
type of winder | Automatic winder | Automatic winder | Automatic winder | Automatic winder |
winder roller dia.& width | Φ300×1600mm | Φ300×1800mm | Φ300×2200mm | Φ300×2600mm |
winder roller motor | 1.5kw | 2.2kw | 2.2kw | .22kw |
max roll diameter | Φ1000mm | Φ1000mm | Φ1000mm | Φ1000mm |
Agricultural film blowing machine is designed and manufactured on the basis of introducing and absorbing the key technology from the western world. They can process many kinds of resins, such as LLDPE, LDPE, EVA,MPE, HDPE and so on. The lines are reasonable in structure, stable in performance, wonderful in plasticizing, high in productivity, low in energy consumption, which make the product clear in the interfaces between layers. The lines are the ideal equipment which can produce multi-function agriculture films.Multi-function agriculture film has special function, such as high strength, age-resisting, non water drip, transparent and long time keeping warm.

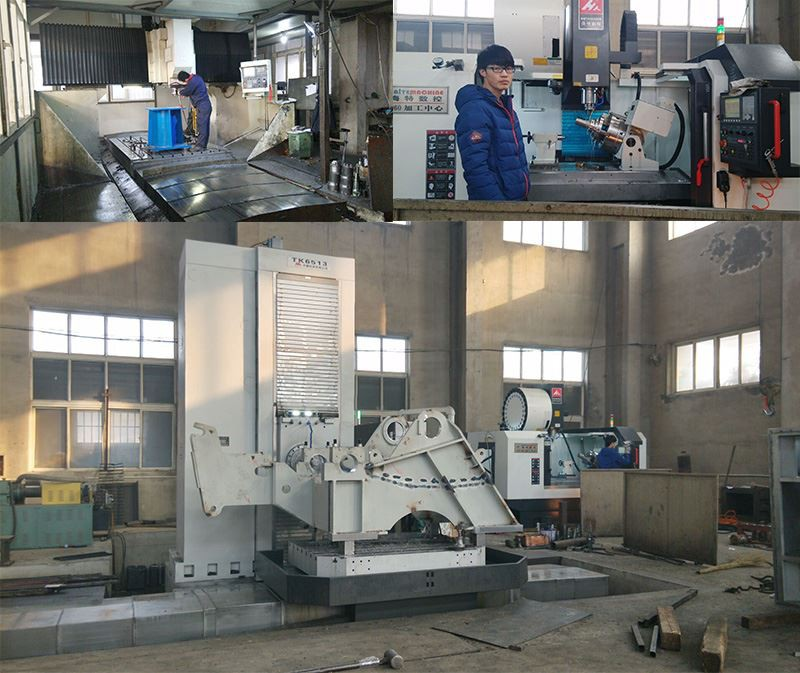

Main machining facilities
Workshop

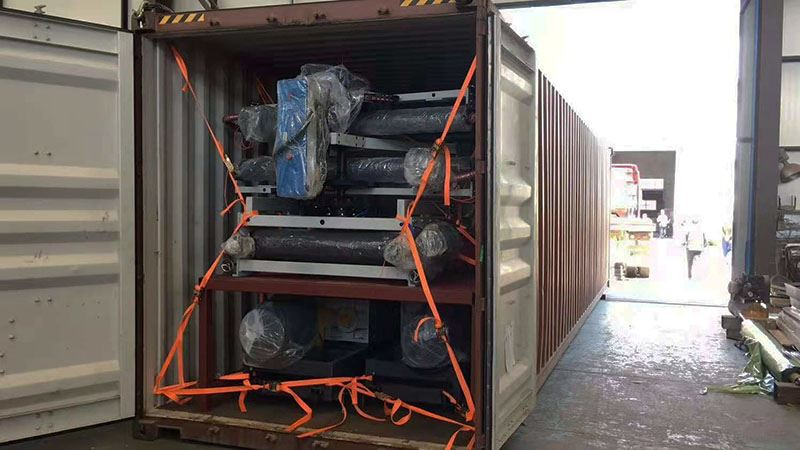

Delivery
