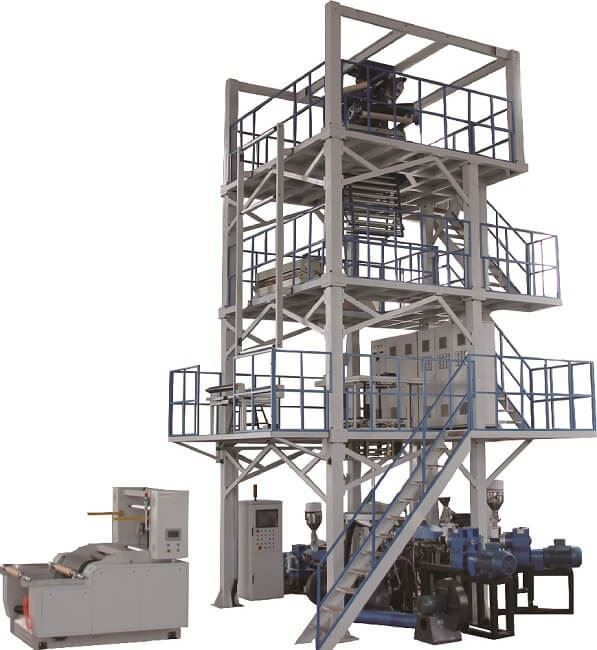

Application of 5 Layer Coextrusion Blown Film Machines
This machine are used for producing FFS heavy duty bag film and packaging chemical material film,it is a high performance configuration for this kind of film.

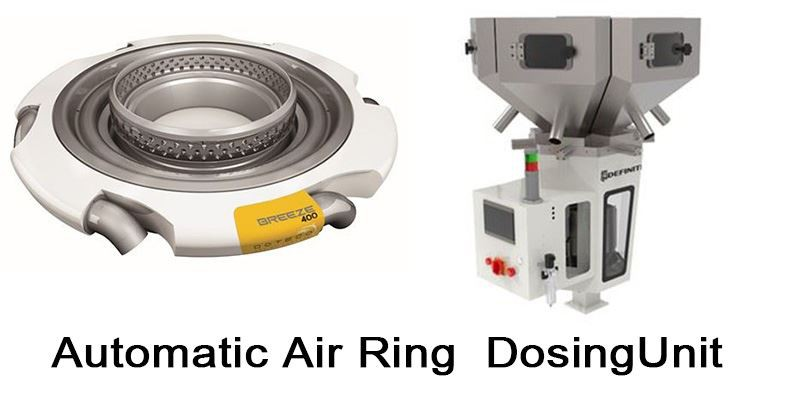

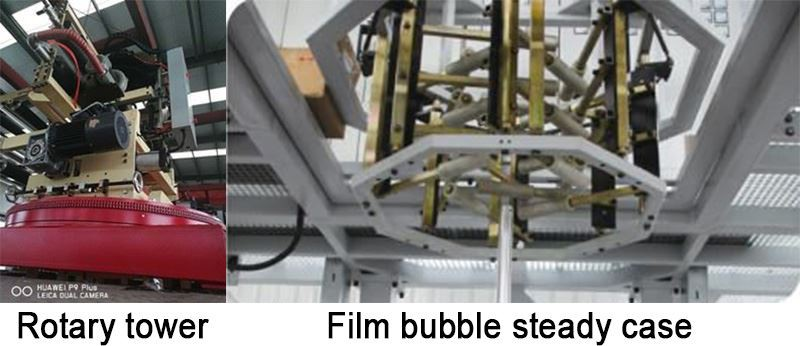

The machine is equipped with oscillating tower totary system IBC system,Auto air ring,chiller,and dosing system.max output 5000kg/24h,and is equipped with inner embossing roller, it is easy for piling up,prevent from slipping
Parameter of 5 Layer Coextrusion Blown Film Machines
Type of the machine | SJGM-Z55×30×5-1100 |
max film width | 650mm |
thickness of the film | 0.1mm-0.2mm |
extrusion output | 70kg/h - 70kg/h - 70kg/h |
Extrusion Unit | |
main motor | 30kw / 30kw / 30kw / 30kw / 30kw |
screw diameter | Φ55mm×5 |
screw and barrel material | SACM645(38CrMoA1A) |
screw ratio L/D | 30:1 |
barrel air cooling fans | 0.24kw×3/0.24kw×3/0.24kw×3/0.24kw×3/0.24kw×3 |
type of screen changer | Non-disassemble manuel screen changer or hydraulic screen changer |

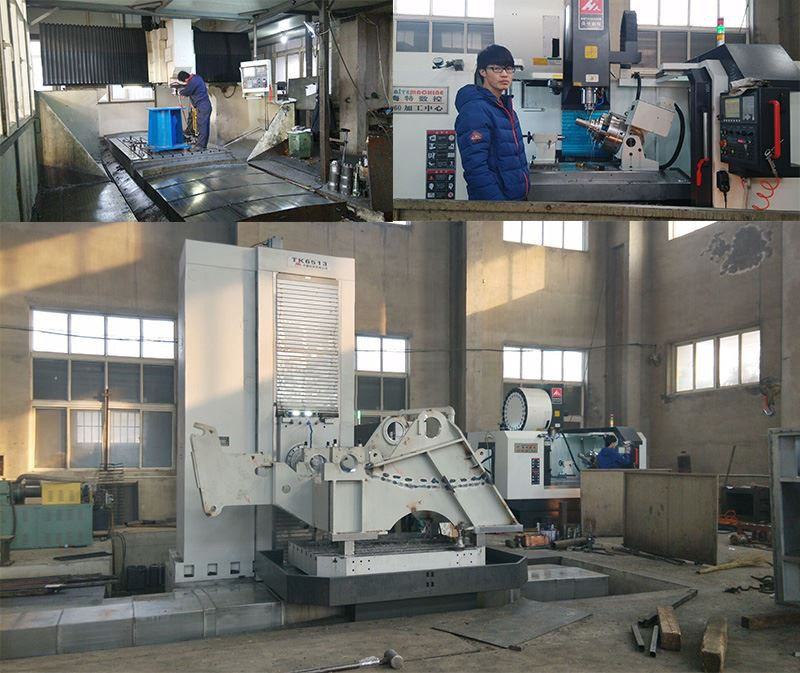

Main machining facilities

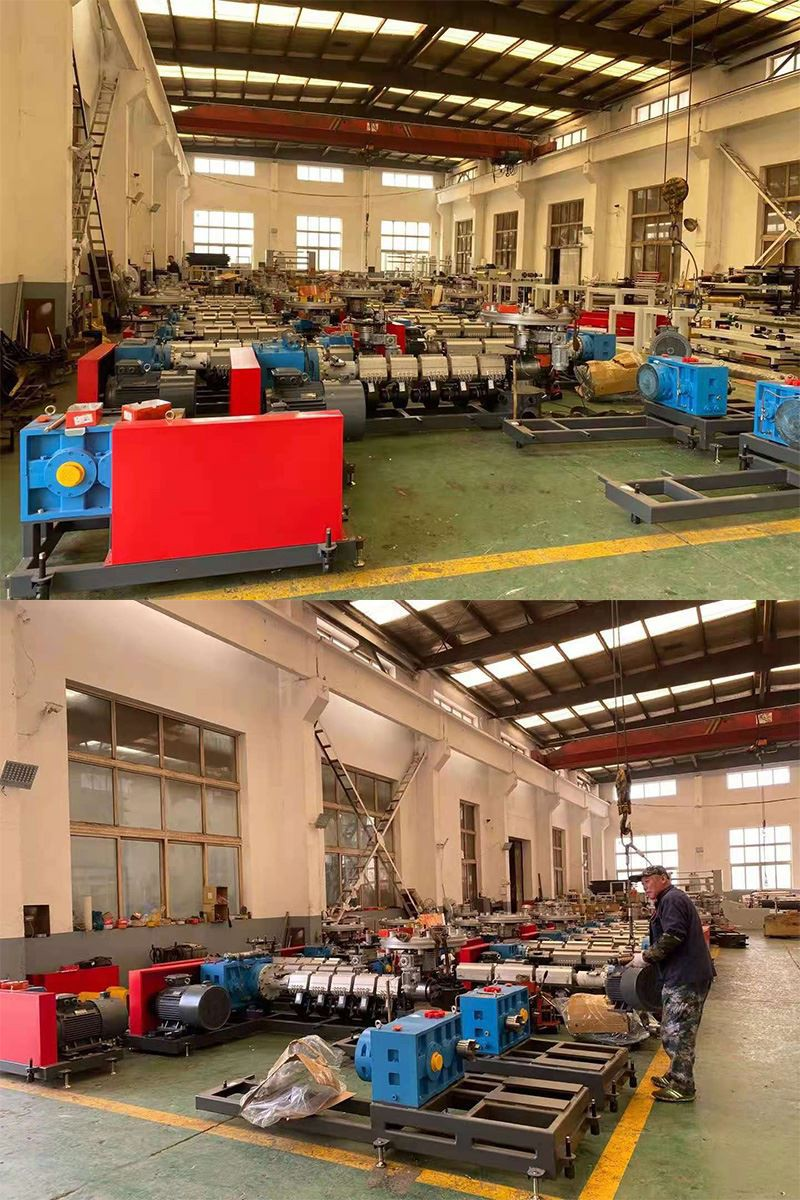

Workshop

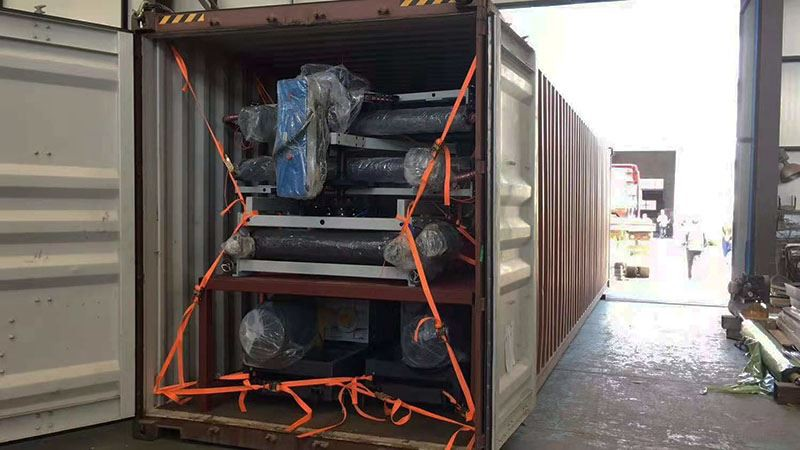

Delivery
