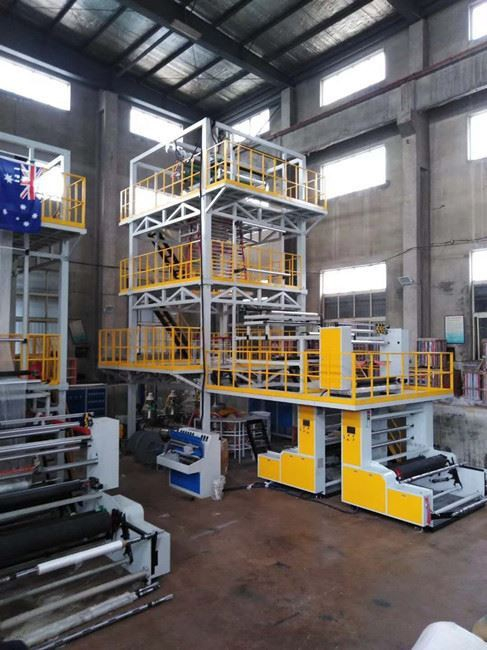

The production line of ABA co-extrusion blown film machines produced by our company can realize more energy-saving and flexible production applications at lower costs. For the production line of ABA three-layer co-extrusion blown film machines, two main motors provide three-layer extrusion. One main machine provides the inner and the outer coating layers, and the other main machine provides the inner filling layer. It can achieve the goal of reducing the number of main machines, cost, and consumption, and saving energy.
Parameter of ABA Film Blown Machines for Lamination
Type of the machine | SJGM-Z55×30×3-1600 | SJGM-Z55×30×2+65×30×1-1800 | SJGM-Z65×30×2+75×30×1-2200 | SJGM-Z75×30×3-2600 |
max film width | 1400mm | 1600mm | 2000mm | 2400mm |
thickness of the film | 0.02mm-0.15mm | 0.02mm-0.15mm | 0.02mm-0.15mm | 0.02mm-0.15mm |
max output | 120kg-150kg/h | 200kg/h | 300kg/h | 250kg-400kg/h |
Extrusion Unit | ||||
main motor | 30kw×3 | 30kw×2+37kw×1 | 37kw×2+55kw1× | 55kw×3 |
screw diameter | Φ55mm×3 | Φ55mm×2+Φ65mm×1 | Φ65mm×2+Φ75mm×1 | Φ75mm×3 |
screw and barrel material | SACM645(38CrMoA1A) | SACM645(38CrMoA1A) | SACM645(38CrMoA1A) | SACM645(38CrMoA1A) |
screw ratio L/D | 30:1 | 30:1 | 30:1 | 30:1 |
barrel air cooling fans | 0.24kw×3×3 | 0.24kw×3×2+0.37kw×4×1 | 0.37kw×4×2+0.37kw×5×1 | 0.37kw×5×3 |
type of screen changer | Non-disassemble manual screen changer | Non-disassemble manual screen changer | Non-disassemble manual or Hyhraulic screen changer | Non-disassemble manual or Hyhraulic screen changer |
Die Unit | ||||
type of the diehead | stationary die | stationary die | stationary die | stationary die |
die diameter | Φ300mm | Φ400mm | Φ600mm | Φ700mm |
air blower fan | 11kw | 11kw | 15kw | 15kw |
Other Parts | ||||

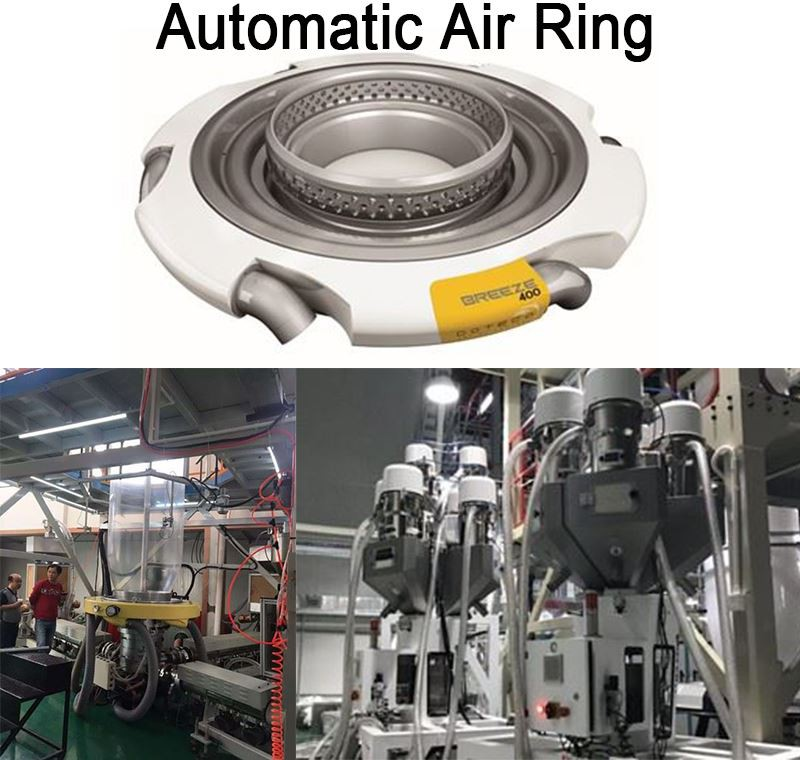

Automatic air ring | Imported from Italy | |||
IBC system | Germany P+F | |||
Dosing unit | Imported from Italy | |||
Chiller | ||||
Waste film recycle system | ||||
EPC system | EPC auto edge position control system | |||
Tension control system | Auto tension control system | |||

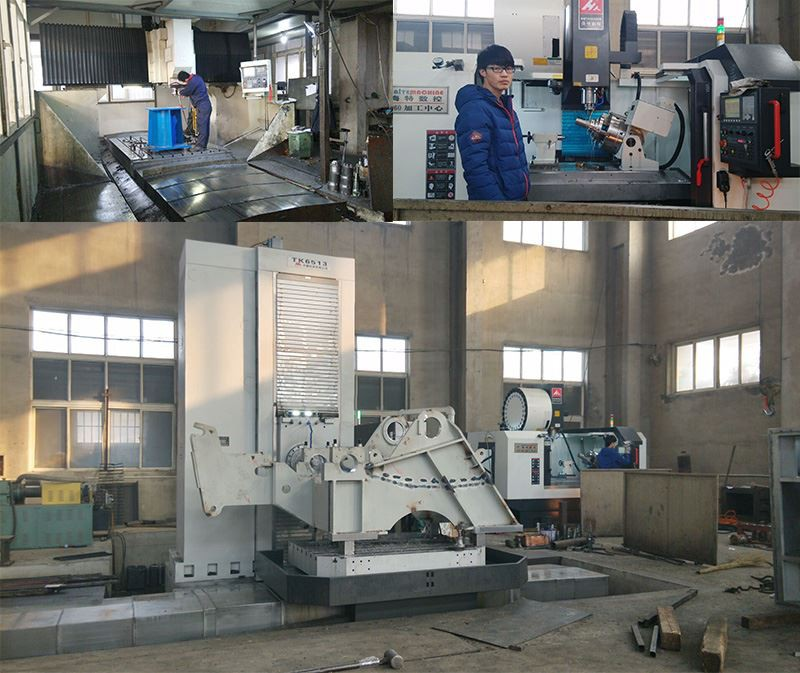

Main machining facilities
Workshop

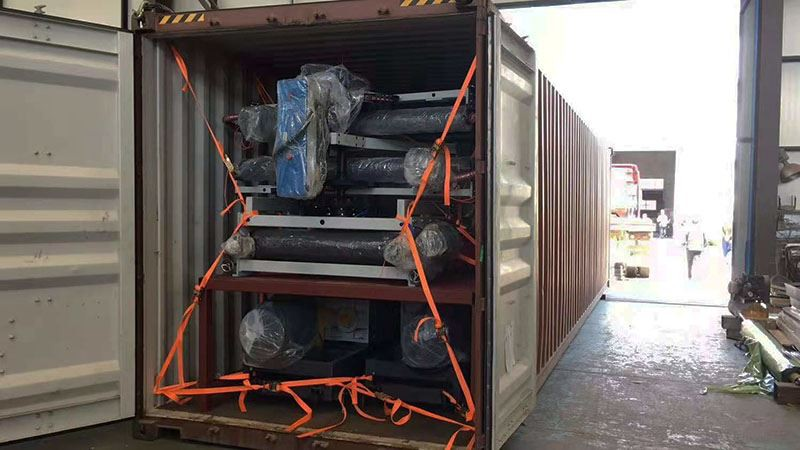

Delivery
