Application of Biodegradable Plastic Film Blowing Machines This biodegradable film blowing machines mainly producing the degradable film from PLA,PBAT,PHA,PSM and filler, the machine is widely applied to producing the packaging bags for foodstuff, clothing,rubbish bag and vest bags,agriculture...
| Quantity: | |
|---|---|

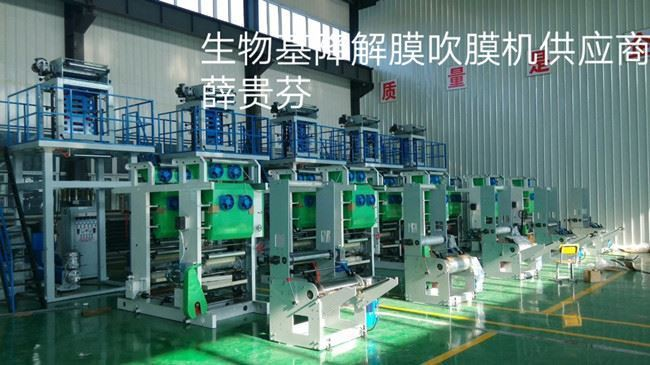

Application of Biodegradable Film Production Lines
This line Biodegradable Film Production Lines from PLA,PBAT,PHA,PSM and filler, the machine is widely applied to producing the packaging bags for foodstuff, clothing,rubbish bag and vest bags,agriculture film etc.
Feature of Biodegradable Film Production Lines
1. The machine plasticates two identicalor different raw substances by two extrudes them to the complex machine head, then produces the co-extruding molded complex film. By this way, it make possible to enhance the film's physical performance, rigidity, good nsulation-proof and impenetrability.
2. The machine entail advanced consecutive rotation machined, ensures smooth and homogeneous products, meets the film's quality requirement during the subsequent working procedure of the packing machine or the printer, also is useable for manufacturing farming film, etc. Its application range is gradually widening to the target of plastic product development.
Parameter of Biodegradable Film Production Lines
Type of the machine | SJM-Z45×32-650 | SJM-Z50×32-850 | SJM-Z55×32-850 | SJM-Z65×32-1600 |
max film width | 500mm | 600mm | 600mm | 1300mm |
thickness of the film | 0.015-0.10mm | 0.015-0.10mm | 0.015-0.10mm | 0.015-0.10mm |
max output | 25kg-40kg/h | 35kg-50kg/h | 40kg-60kg/h | 90kg/h |
Extrusion Unit | ||||
main motor | 15kw | 18.5kw | 22kw | 37kw |
screw diameter | Φ45mm | Φ50mm | Φ55mm | Φ65mm |
screw and barrel material | SACM645(38CrMoA1A) | SACM645(38CrMoA1A) | SACM645(38CrMoA1A) | SACM645(38CrMoA1A) |
screw ratio L/D | 32:1 | 32:1 | 32:1 | 32:1 |
barrel air cooling fans | 0.24kw×5 | 0.24kw×5 | 0.24kw×5 | 0.24kw×5 |
type of screen changer | manuel arm | manuel arm | manuel arm | manuel arm |
Die Unit | ||||
type of the diehead | stationary die or rotary die | stationary die or rotary die | stationary die or rotary die | stationary die or rotary die |
die diameter | Φ80mm Φ120mm | Φ120mm Φ140mm | Φ120mm Φ140mm | Φ250mm |
air blower fan | 4kw | 4kw | 4kw | 7.5kw |
Haul-Off Unit | ||||
type of the tower | Fixed tower | Fixed tower | Fixed tower | Fixed tower |
haul-off roller dia.& width | Φ163×650mm | Φ163×850mm | Φ163×850mm | Φ163×1600mm |
haul-off motor | 1.5kw | 1.5kw | 1.5kw | 1.5kw |
height of the machine | 5m | 5m | 5m | 6m |
Winder Unit | ||||
type of winder | Manuel or Auto | Manuel or Auto | Manuel or Auto | Manuel or Auto |
winder roller dia.& width | Φ300×650mm | Φ300×850mm | Φ300×850mm | Φ300×1600mm |
winder roller motor | 1.5kw | 1.5kw | 1.5kw | 1.5kw |
max roll diameter | Φ1000mm | Φ1000mm | Φ1000mm | Φ1000mm |

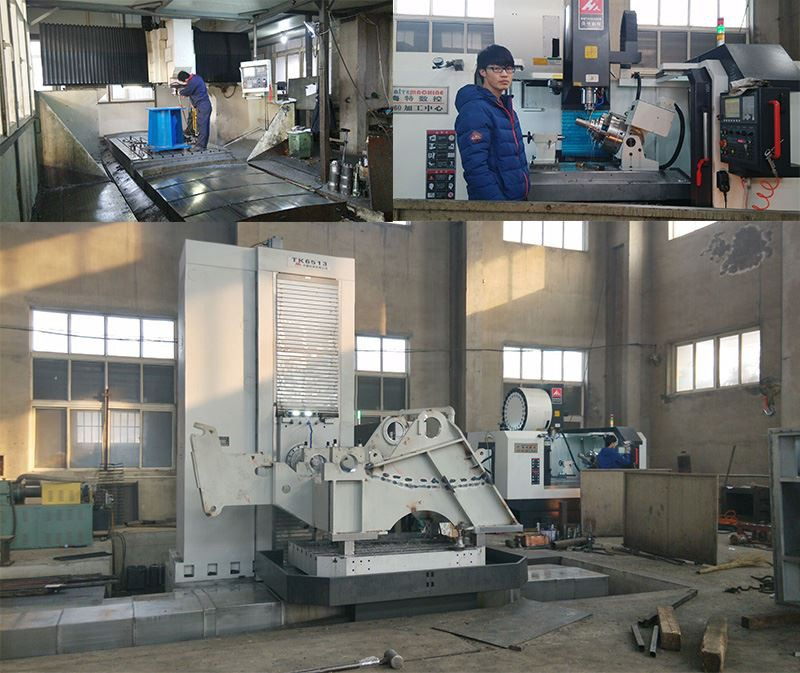

Main machining facilities

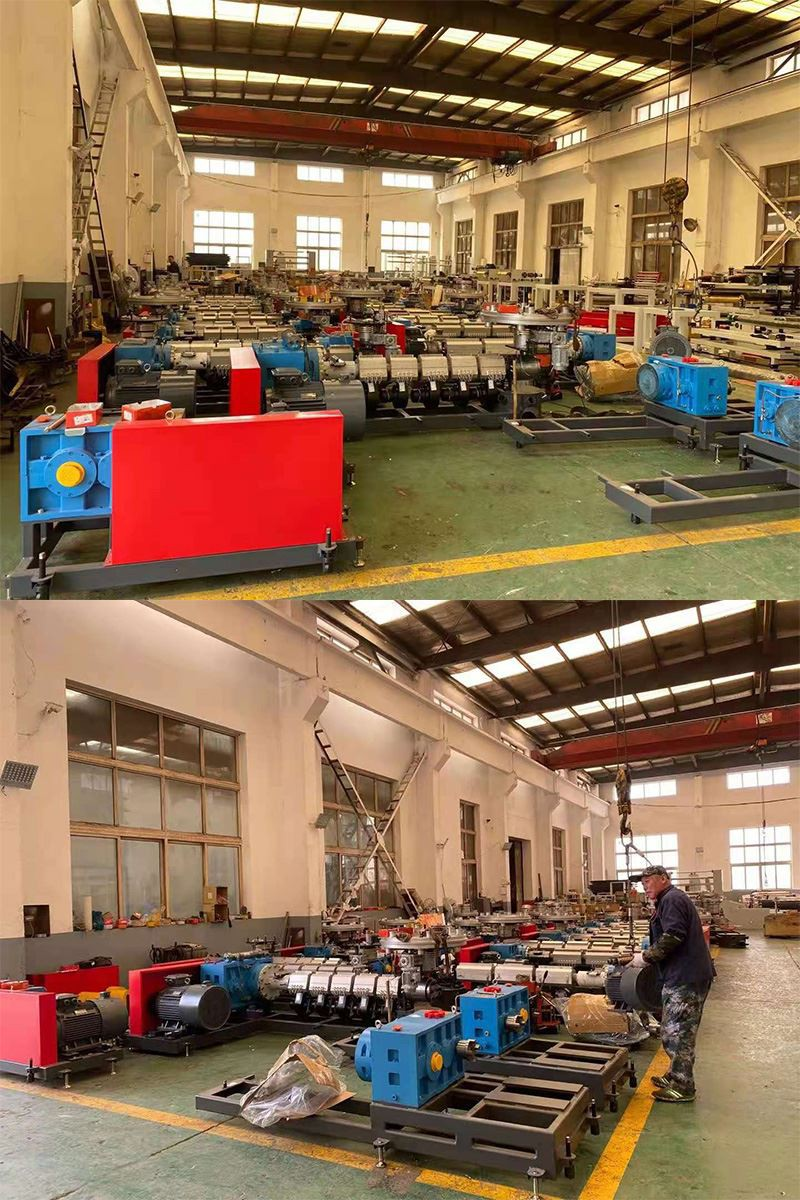

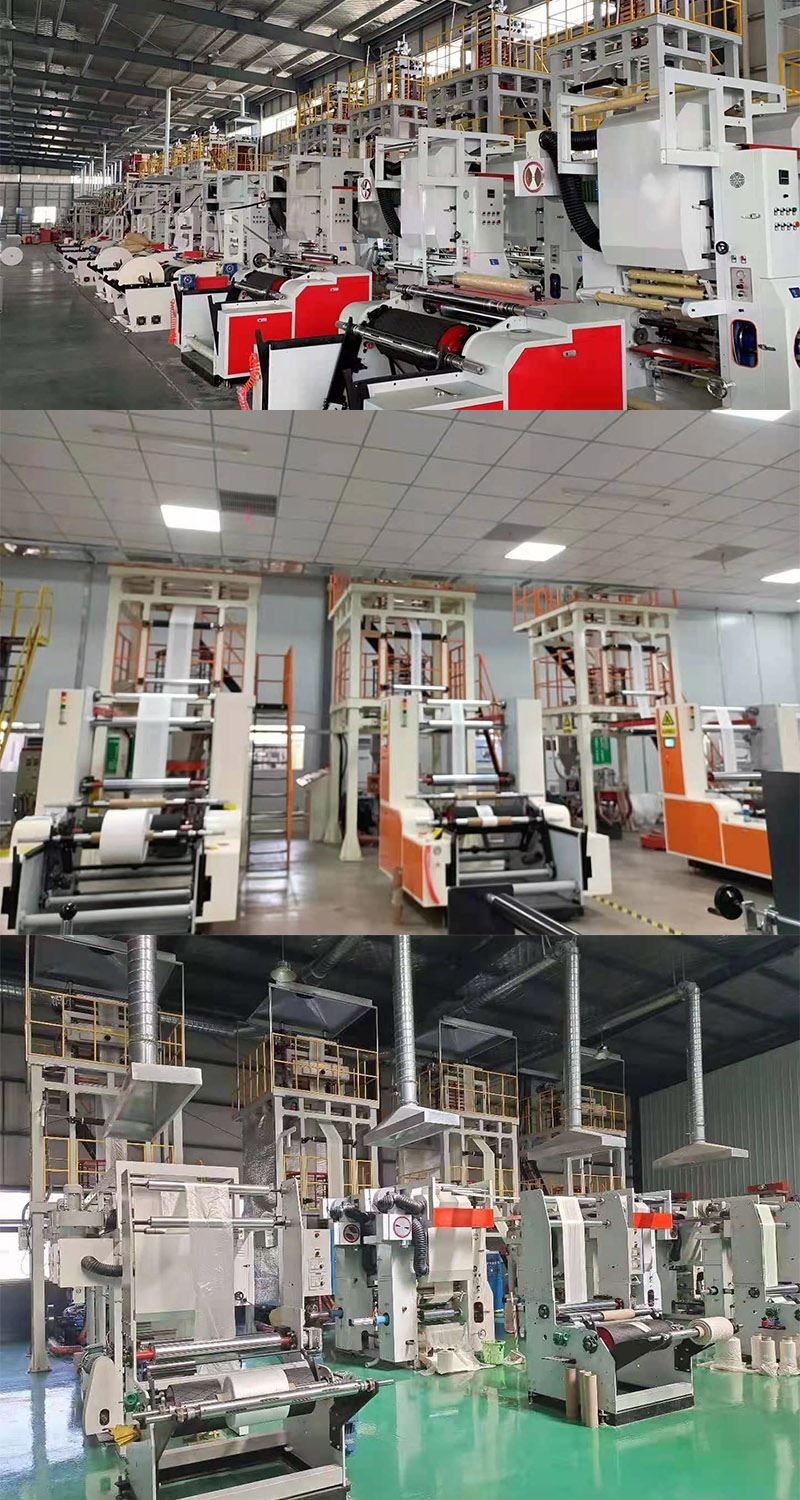

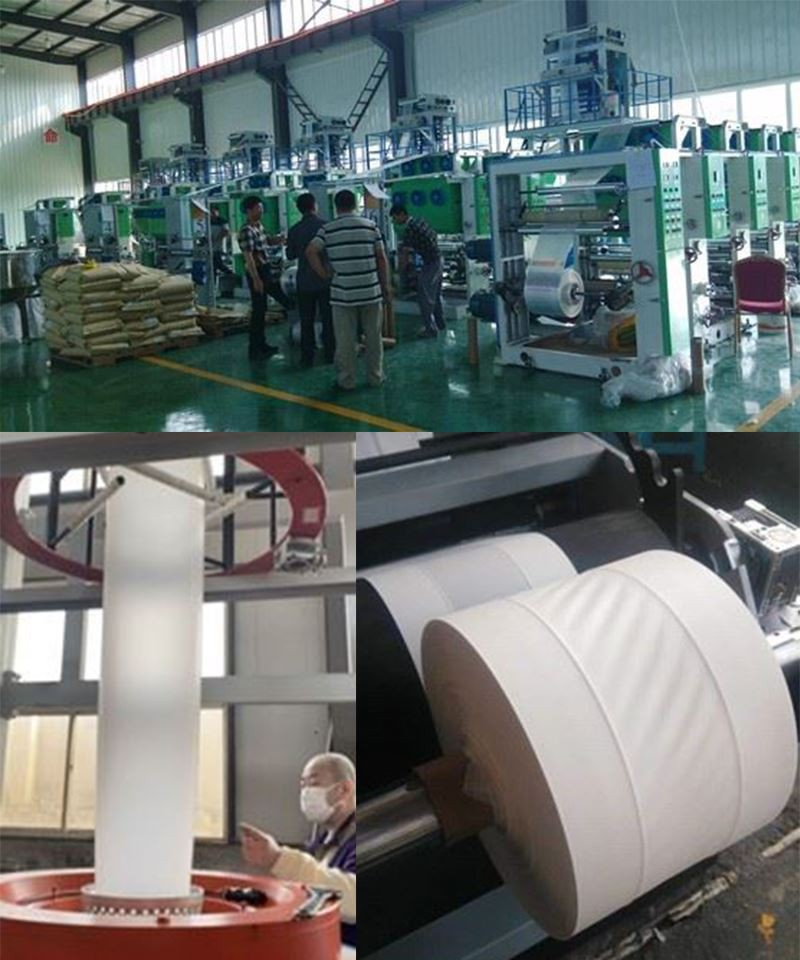

Workshop

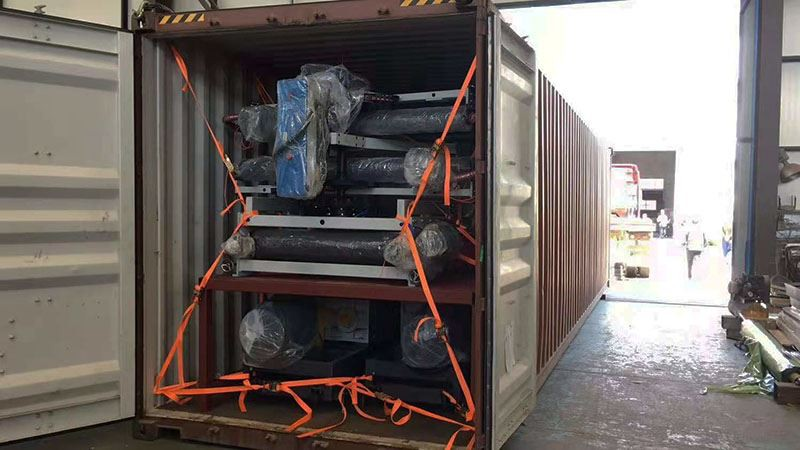

Delivery
