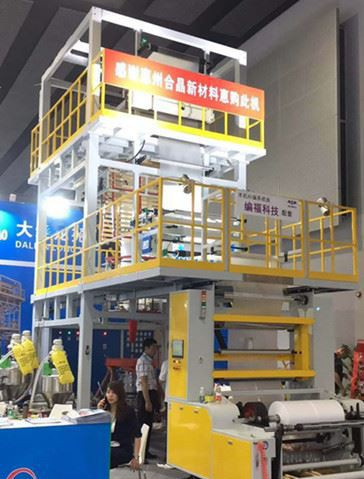

Introduction of HDPE Film Production Lines
It is extruder, cylinder and screw rods are made of quality alloy steel that have been nitrized and processed in a precision way.Hence it is sound in hardness, durable in corrosion resistance. The specially-designed screw is of sound quality in plasticizing,which helps increase the production capacity. It is applied to blowing the LDPE,LLDPE,HDPE,MLLDPE,EVA resin.
Features of LDPE Film Extrusion Machines
1. Improve the physical strength of the film through multi-layer coextrusion
3. The traction frame adopts the lifting type, which can make the film cooling effect reach the best. Produce better quality film for you.
3. The control panel is made of heavy sheet metal and is front opening type. The panel is painted white from inside for clear visibility. An unique feature of this panel is an interlocking mechanism between each temp. controller and the main motor. Unless the actual temp. of each zone is reached, the main drive can not be started, in order to safe guard the screw against damage which can occur due to solidified mass of polymer. In other words, this would act as a cold start preventer. A flasher unit is provided, which would continue flashing till the desired temperature is reached.
Parameter of HDPE Film Production Lines
Type of the machine | SJGM-Z55×30×3-1600 | SJGM-Z55×30×2+65×30×1-1800 | SJGM-Z65×30×2+75×30×1-2200 | SJGM-Z75×30×3-2600 |
max film width | 1400mm | 1600mm | 2000mm | 2400mm |
thickness of the film | 0.02mm-0.15mm | 0.02mm-0.15mm | 0.02mm-0.15mm | 0.02mm-0.15mm |
max output | 120kg-150kg/h | 200kg/h | 300kg/h | 250kg-400kg/h |
Extrusion Unit | ||||
main motor | 30kw×3 | 30kw×2+37kw×1 | 37kw×2+55kw1× | 55kw×3 |
screw diameter | Φ55mm×3 | Φ55mm×2+Φ65mm×1 | Φ65mm×2+Φ75mm×1 | Φ75mm×3 |
screw and barrel material | SACM645(38CrMoA1A) | SACM645(38CrMoA1A) | SACM645(38CrMoA1A) | SACM645(38CrMoA1A) |
screw ratio L/D | 30:1 | 30:1 | 30:1 | 30:1 |
barrel air cooling fans | 0.24kw×3×3 | 0.24kw×3×2+0.37kw×4×1 | 0.37kw×4×2+0.37kw×5×1 | 0.37kw×5×3 |
type of screen changer | Non-disassemble manual screen changer | Non-disassemble manual screen changer | Non-disassemble manual or Hyhraulic screen changer | Non-disassemble manual or Hyhraulic screen changer |
Die Unit | ||||
type of the diehead | stationary die | stationary die | stationary die | stationary die |
die diameter | Φ300mm | Φ400mm | Φ600mm | Φ700mm |
air blower fan | 11kw | 11kw | 15kw | 15kw |
Haul-Off Unit | ||||
type of the tower | Oscillating tower | Oscillating tower | Oscillating tower | Oscillating tower |
haul-off roller dia.& width | Φ210×1600mm | Φ210×1800mm | Φ210×2200mm | Φ210×2600mm |
haul-off motor | 1.5kw | 2.2kw | 2.2kw | 2.2kw |
height of the machine | 9.2m | 10.5m | 12.5m | 12.5m |
Winder Uni | ||||
type of winder | Automatic winder | Automatic winder | Automatic winder | Automatic winder |
winder roller dia.& width | Φ300×1600mm | Φ300×1800mm | Φ300×2200mm | Φ300×2600mm |
winder roller motor | 1.5kw | 2.2kw | 2.2kw | .22kw |
max roll diameter | Φ1000mm | Φ1000mm | Φ1000mm | Φ1000mm |

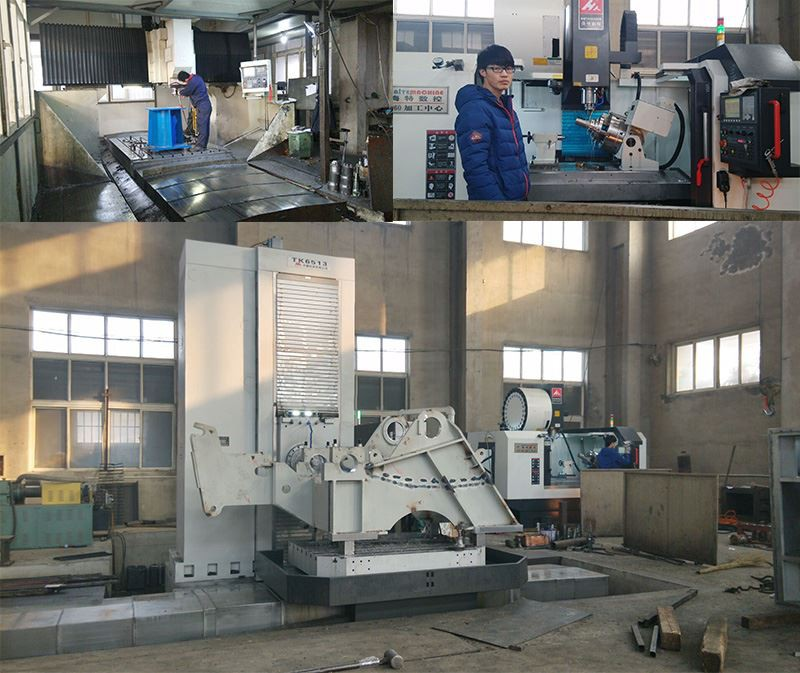

Main machining facilities
Workshop

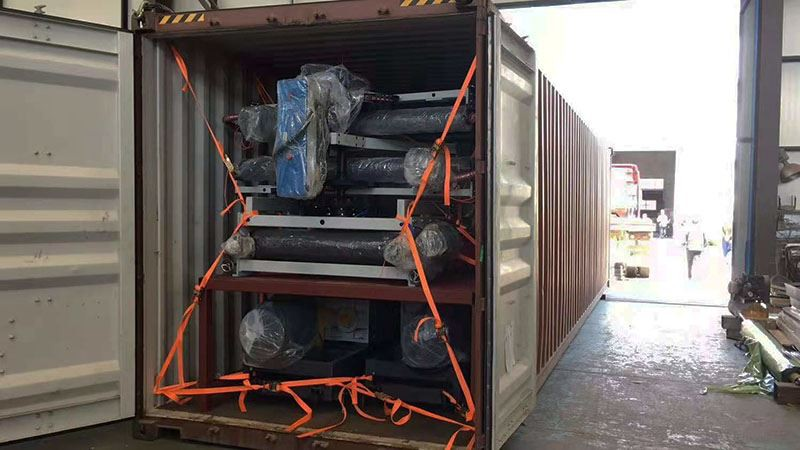

Delivery
1.We welcome the customers to visit the factory and we will pick you up.
2.Our machines use famous brand parts and test every part of the machine in the process of production.
3.Our engineers can install machines for you, and we can also train your employees until they can operate the machine independently. Of course, you can learn and install in our factory
4.We can provide a warranty of 14 months. If the machine has a non-human failure (except for vulnerable parts), we will provide you with a maintenance plan.
5.Welcome to send us an inquire
