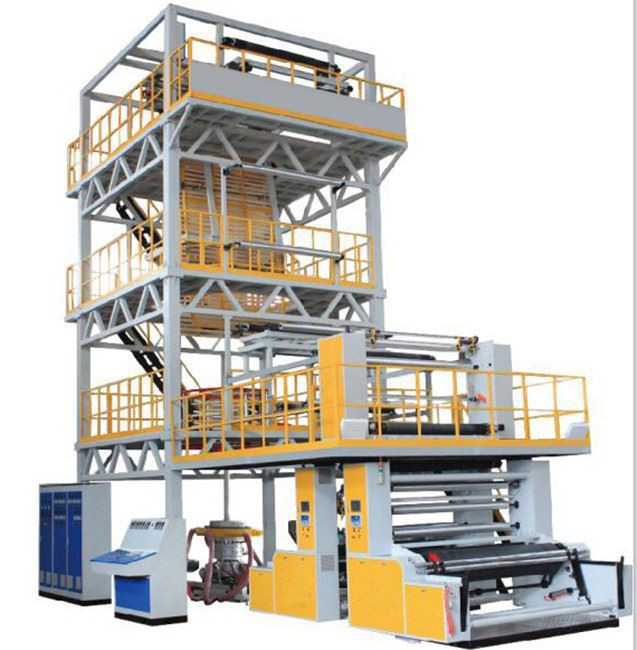

Application of Protective Coat Film Blown Machines This machine mainly produce coated substrate protective film,you can choose three layers machine Parameter of Protective Coat Film Blown Machines
| Quantity: | |
|---|---|
Application of Protective Coat Film Blown Machines
This machine mainly produce coated substrate protective film,you can choose three layers machine
Parameter of Protective Coat Film Blown Machines
Type of the machine | SJM-Z55×30×2+65×30×1-1800mm |
max film width | 1600mm |
thickness of the film | 0.025-0.18mm |
max output | 200kg/h |
Extrusion Unit | |
main motor | 30kw×2+37 kw×1 |
screw diameter | Φ55mm×2+Φ65mm×1 |
screw and barrel material | SACM645 (38CrMoA1A) |
screw ratio L/D | 30:1 |
barrel air cooling fans | 0.37kw×3×3 |
type of screen changer | Manual arm |
Die Unit | |
type of the diehead | stationary die |
die diameter | Φ300mm |
air blower fan | 15kw |
Haul-Off Unit | |
type of the tower | Oscillating tower |
haul-off roller dia.& width | Φ210×1800mm |
haul-off motor | 1.5kw |
height of the machine | 10.5m |
Winder Unit | |
type of winder | Automatic winder |
Other parts | |
IBC system | |
Auto air ring | |
