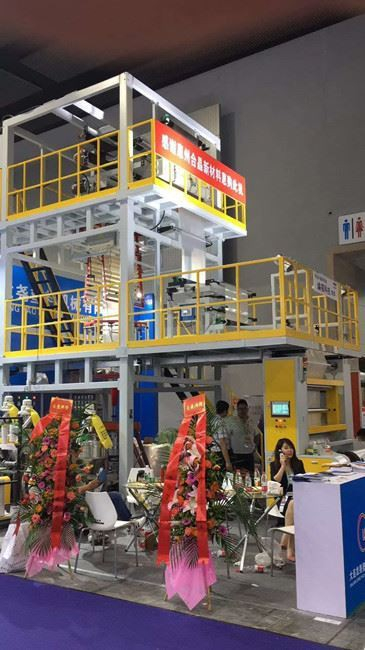

Application of High Speed PE Film Production Lines
1. This unit mainly producing the film from LDPE,LLDPE,HDPE,MLLDPE,EVA resin with with different width and thickness of 0.02-0.15mm , the film is widely used for packaging the fruit,food,textile,industrial product,etc. Such as the high value-added lamination film,FFS heavy duty bag film, no crystal point self-adhesive protective film,etc.
2.Its extruder, cylinder and screw rods are made of quality alloy steel that have been notarized and processed in a precision way. Hence it is hard, durable in corrosion resistance. The specially-designed screw is quality in plasticizing, which helps increase the production capacity. It is applied to blowing
3. It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones.
Features of High Speed PE Film Production Lines
1, We use stronger steel plate for machine body, which make machine more stable
2, Screw and barrel is nitrigened by 72 hours. 38 chromium materials, Bimetal. Taiwan Quality
3, Hard surface gearbox, the life can be more 5 years.
4, Motor with CE standard, more 10 years life, Siemens brand
5, Electric parts is CHINT, best supplier in China.
6, LG Brand Inverter,Omron Brand Temperature
7, Easy to operate and one worker can run 3 sets
8, Ceramic Heater: Heating faster and Keeping warm longer
Parameter of High Speed PE Film Production Lines
Type of the machine | SJGM-Z55×30×3-1600 | SJGM-Z55×30×2+65×30×1-1800 | SJGM-Z65×30×2+75×30×1-2200 | SJGM-Z75×30×3-2600 |
max film width | 1400mm | 1600mm | 2000mm | 2400mm |
thickness of the film | 0.02mm-0.15mm | 0.02mm-0.15mm | 0.02mm-0.15mm | 0.02mm-0.15mm |
max output | 120kg-150kg/h | 200kg/h | 300kg/h | 250kg-400kg/h |
Extrusion Unit | ||||
main motor | 30kw×3 | 30kw×2+37kw×1 | 37kw×2+55kw1× | 55kw×3 |
screw diameter | Φ55mm×3 | Φ55mm×2+Φ65mm×1 | Φ65mm×2+Φ75mm×1 | Φ75mm×3 |
screw and barrel material | SACM645(38CrMoA1A) | SACM645(38CrMoA1A) | SACM645(38CrMoA1A) | SACM645(38CrMoA1A) |
screw ratio L/D | 30:1 | 30:1 | 30:1 | 30:1 |
barrel air cooling fans | 0.24kw×3×3 | 0.24kw×3×2+0.37kw×4×1 | 0.37kw×4×2+0.37kw×5×1 | 0.37kw×5×3 |
Die Unit | ||||
type of the diehead | stationary die | stationary die | stationary die | stationary die |
die diameter | Φ300mm | Φ400mm | Φ600mm | Φ700mm |
air blower fan | 11kw | 11kw | 15kw | 15kw |
Haul-Off Unit | ||||
type of the tower | Oscillating tower | Oscillating tower | Oscillating tower | Oscillating tower |
haul-off roller dia.& width | Φ210×1600mm | Φ210×1800mm | Φ210×2200mm | Φ210×2600mm |
Winder Unit | ||||
type of winder | Automatic winder | Automatic winder | Automatic winder | Automatic winder |
winder roller dia.& width | Φ300×1600mm | Φ300×1800mm | Φ300×2200mm | Φ300×2600mm |
max roll diameter | Φ1000mm | Φ1000mm | Φ1000mm | Φ1000mm |

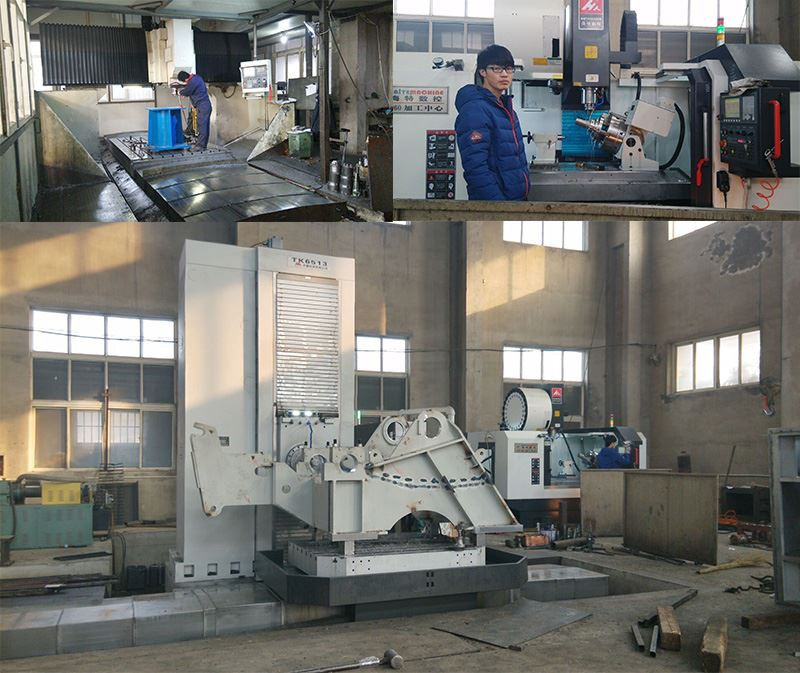

Main machining facilities

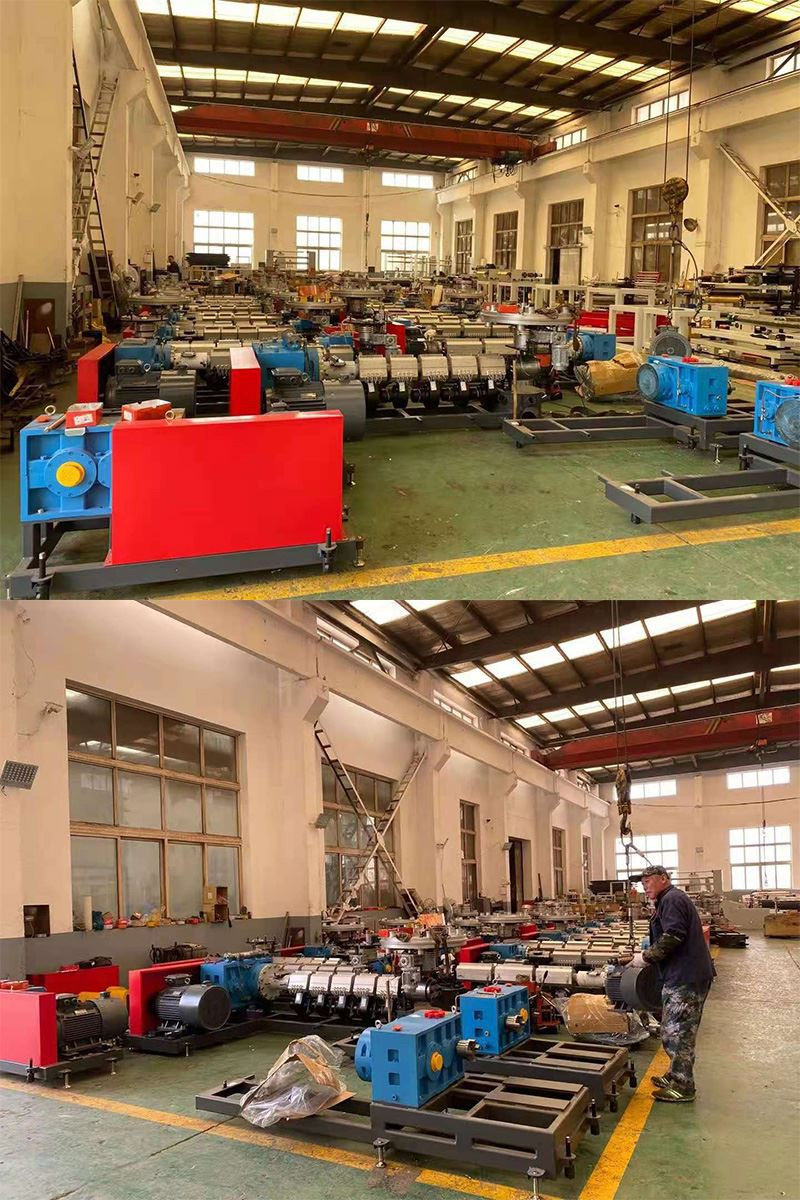

Workshop

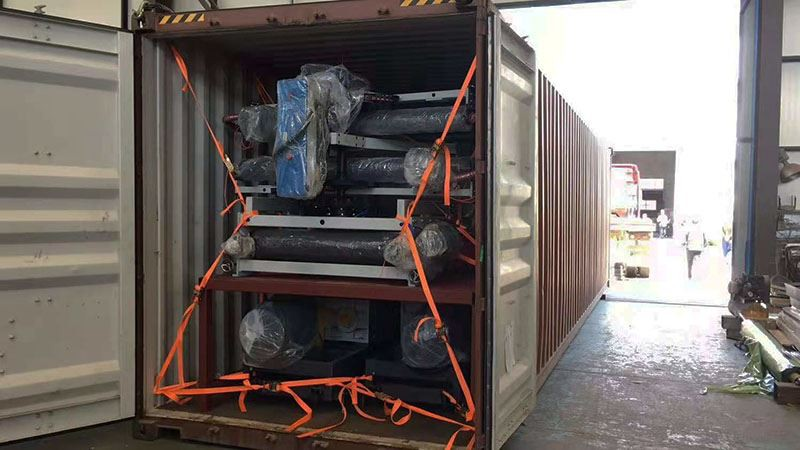

Delivery
