Application of Three Layers Tissues Package Film Blowing Machines This three layers film blown machine mainly produce tissues package film,and package for food,for cosmetics, chemicals,electronics,and so on. you can adopt IBC,auto air ring, chiller, dosing unit,and so on. The configuration list...
| Quantity: | |
|---|---|

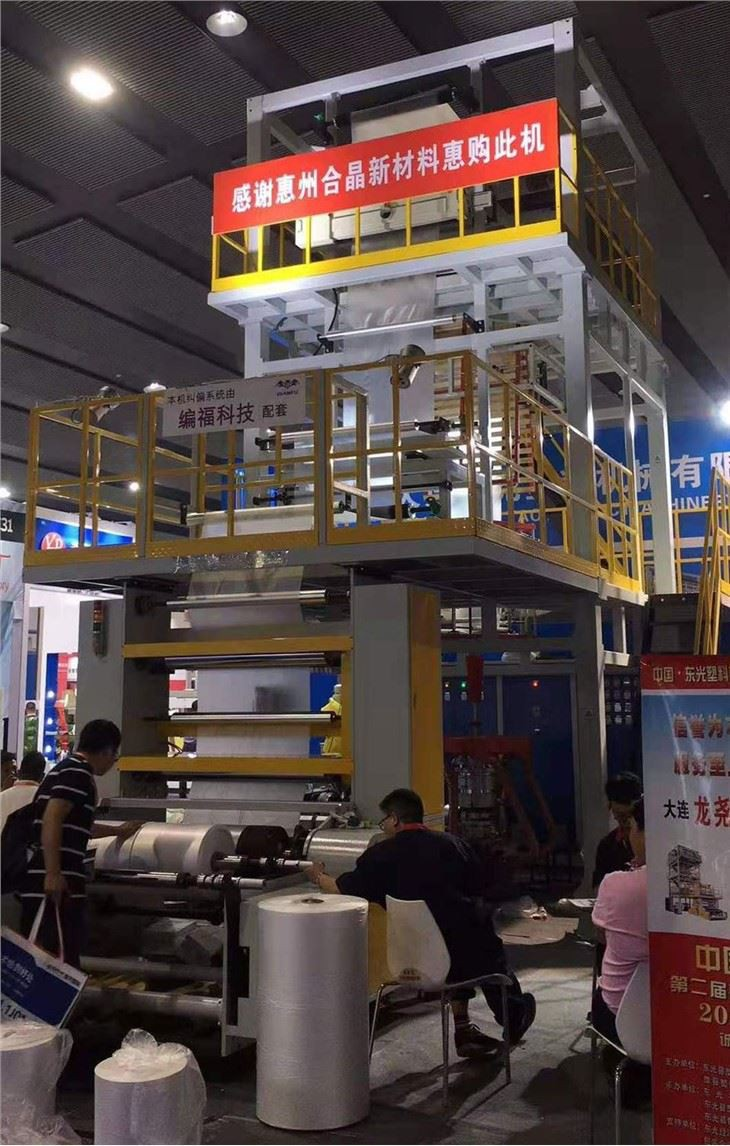

Application of Three Layers Tissues Package Film Blowing Machines

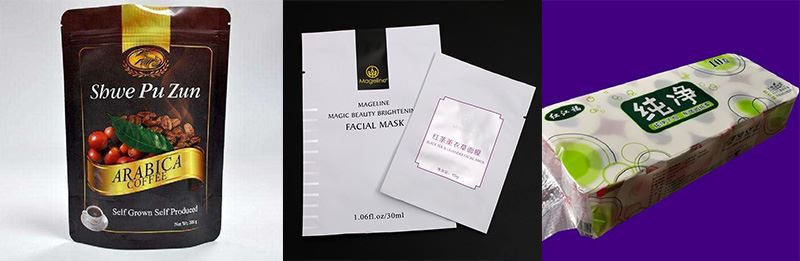

This three layers film blown machine mainly produce tissues package film,and package for food,for cosmetics, chemicals,electronics,and so on.
you can adopt IBC,auto air ring, chiller, dosing unit,and so on.
The configuration list please check the following details
Parameter of Three Layers Tissues Package Film Blowing Machines
Type of the machine | SJM-Z55×30×2+ Z65×30×1-1800mm |
max film width | 1600mm |
thickness of the film | 0.02-0.15mm |
max output | 200kg/h |
Extrusion Unit | |
main motor | 30 kw×2+37 kw×1 |
screw diameter | Φ55mm×2+Φ65mm×1 |
screw and barrel material | SACM645 (38CrMoA1A) |
screw ratio L/D | 30:1 |
barrel air cooling fans | 0.24kw×3×2+0.37kw×4×1 |
type of screen changer | Manual arm or hydraulic |
Die Unit | |
type of the diehead | Stationary Die |
die diameter | Φ400mm |
air blower fan | 11kw |
Haul-Off Unit | |
type of the tower | Oscillating tower |
haul-off roller dia.& width | Φ210×1100mm |
haul-off motor | 1.5kw |
height of the machine | 10.5m |
Winder Unit | |
type of winder | Automatic back to back winder |
Other parts | |
Corona | |
IBC | |
Auto air ring | |
