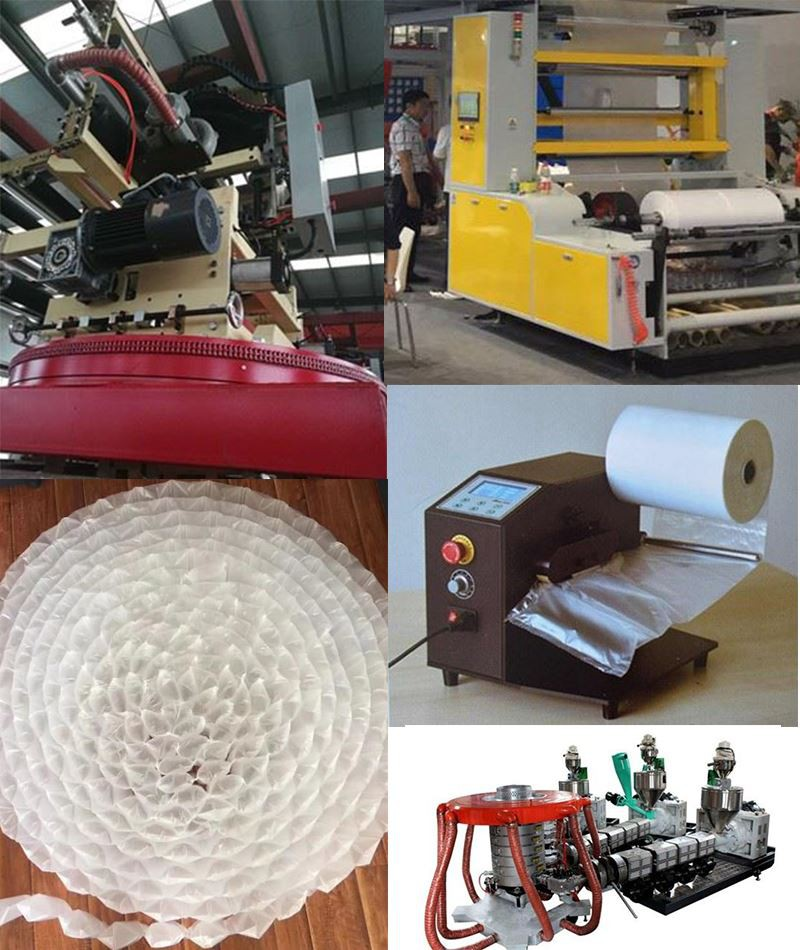

Application of Mini Air Sealed Bag Film Blowing Machines The mini air sealed bag film blowing machine mainly produce the mini air sealing bag film(mini air cushion bag film),the cusion film is widely used in transport packaging. Every day in the world, this film is used in Amazon, tmall, Taobao,...
| Quantity: | |
|---|---|

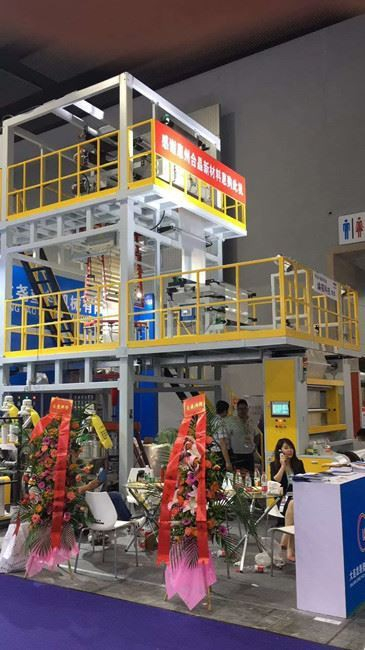

Introduction of HDPE Film Extrusion Machines
1. Machine Introduction
Three layer film extrusion machine cylinder and screw rods are made of quality alloy steel that have been notarized and processed in a precision way. Hence it is hard, durable in corrosion resistance. The specially-designed screw is quality in plasticizing, which helps increase the production capacity. High density polygene(HDPE). It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones.
2. Machine Advantages
1, We use stronger steel plate for machine body, which make machine more stable
2, Screw and barrel is nitrigened by 72 hours. 38 chromium materials, it is very hard.
3, Hard surface gearbox, the life can be more 5 years.
4, Motor with CE standard, more 10 years life
5, Electric parts is CHINT, best supplier in China.
6, Easy to operate and one worker can run 3 sets mproved, the output is increased.
Parameter of HDPE Film Extrusion Machines
Type of the machine | SJGM-Z50×30×2+55×30×1-1300 | SJGM-Z45×30×3-1100 | SJGM-Z55×30×2+ 50×30×1-1300 |
max film width | 800mm/1000mm | 600mm | 800mm/1000mm |
thickness of the film | 0.013mm-0.03mm | 0.013mm-0.03mm | 0.013mm-0.03mm |
max output | 50kg/h - 80kg/h - 50kg/h | 50kg/h-50kg/h-50kg/h | 80kg/h - 50kg/h - 80kg/h |
Extrusion Unit | |||
main motor | 22kw / 30kw / 22kw | 15kw / 18.5kw / 15kw | 30kw / 22kw / 30kw |
screw diameter | Φ50mm-Φ55mm-Φ50mm | Φ45mm-Φ45mm-Φ45mm | Φ55mm-Φ50mm-Φ55mm |
screw and barrel material | SACM645(38CrMoA1A) | SACM645(38CrMoA1A) | SACM645(38CrMoA1A) |
screw ratio L/D | 30:1 | 30:1 | 30:1 |
barrel air cooling fans | 0.24kw×3 | 0.24kw×3 | 0.24kw×3 |
Die Unit | |||
type of the diehead | stationary die | stationary die | stationary die |
die diameter | HDPE Φ80mm / Φ120mm | HDPE Φ80mm | HDPE Φ140mm |
air blower fan | 5.5kw | 4kw | 5.5kw |
Haul-Off Unit | |||
type of the tower | oscillating tower | oscillating tower | oscillating tower |
haul-off roller dia.& width | Φ210×1300mm | Φ210×1100mm | Φ210×1300mm |
haul-off motor | 1.5kw | 1.5kw | Φ213×1100mm |
height of the machine | 7m | 6.2m | 8m |
Winder Unit | |||
type of winder | Auto single winder | Auto single winder | Auto single winder |
winder roller dia.& width | Φ300×1300mm | Φ300×1100mm | Φ300×1300mm |
winder roller motor | 1.5kw | 1.5kw | 1.5kw |
max roll diameter | Φ1000mm | Φ1000mm | Φ1000mm |

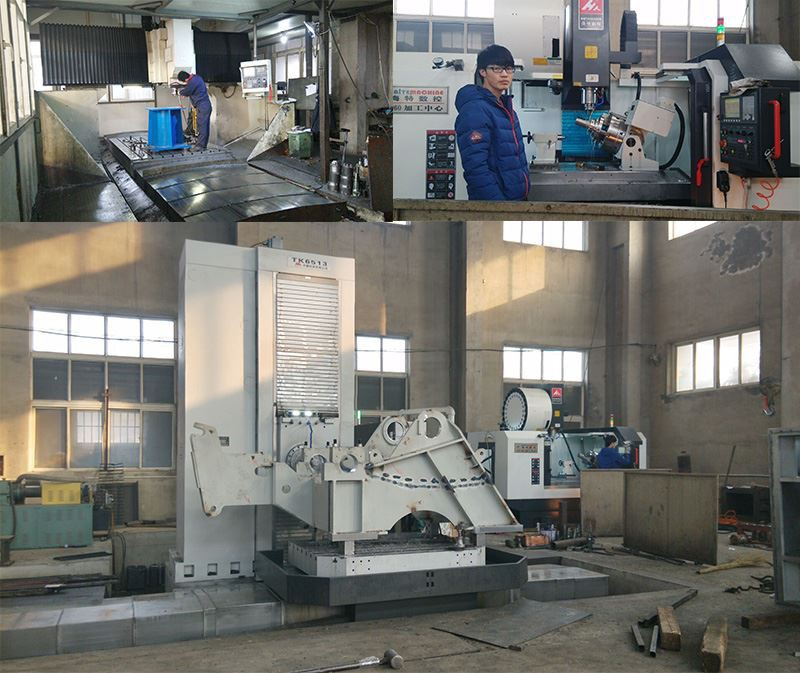

Main machining facilities
Workshop

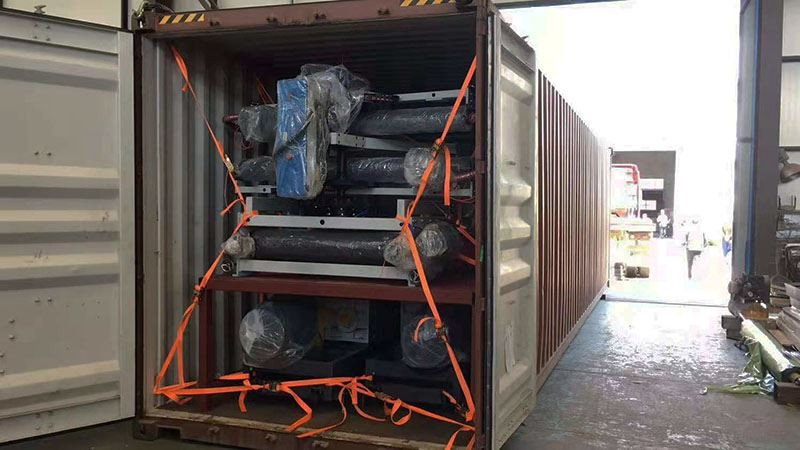

Delivery
