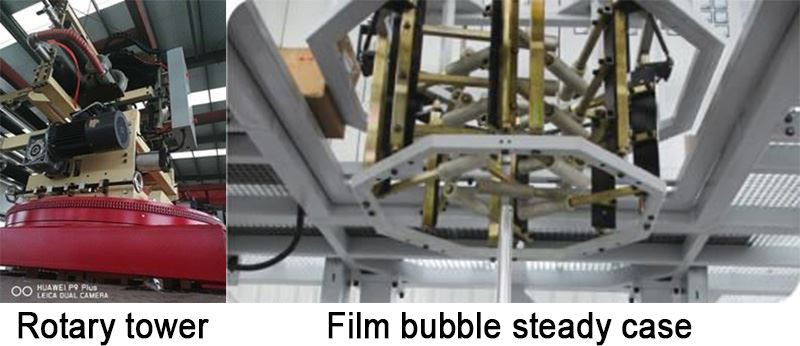

Application of 5 Layer Coextrusion Blown Film Machines This machine are used for producing FFS heavy duty bag film and packaging chemical material film,it is a high performance configuration for this kind of film. The machine is equipped with oscillating tower totary system IBC system,Auto air...
| Quantity: | |
|---|---|

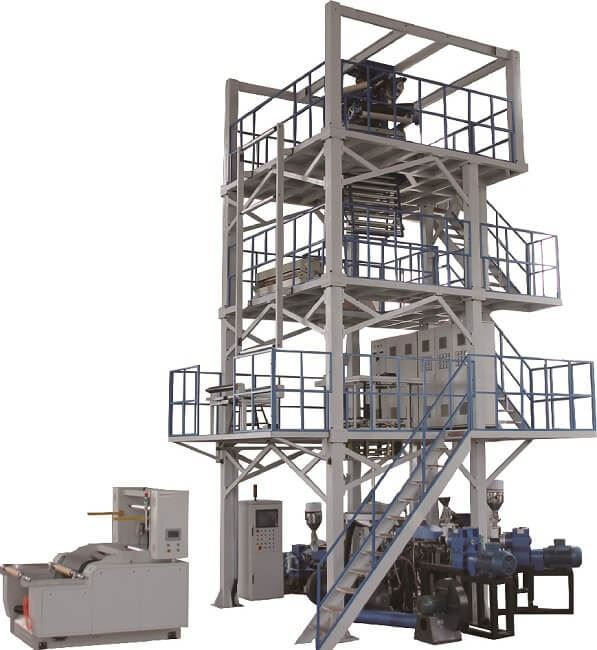

Application of Five Layers Coextrusion Blown Film Lines
1. This machine are used for producing FFS heavy duty bag film and packaging chemical material film,it is a high performance configuration for this kind of film.

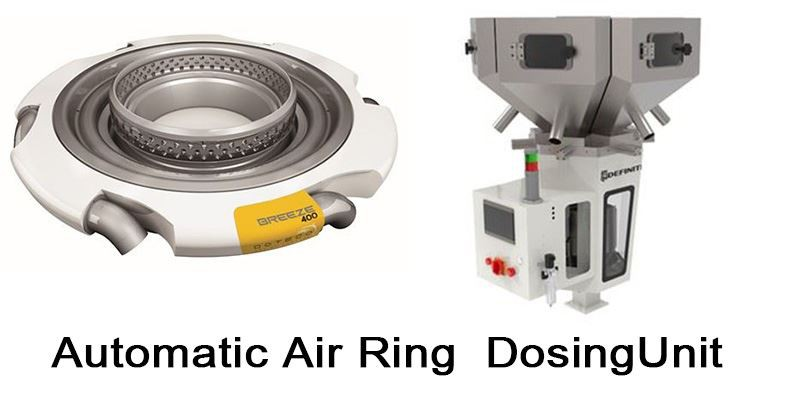

2. Five Layers Coextrusion Blown Film Lines adopt easy batch mixer can mix various raw materials according to the need of the weight proportioning during the extrusion process, and also control the extruder screw speed and traction roller speed to control extrusion amount and per meter weight.
3. The easy batch system can be controlled by remote terminal automatic operation. The touch screen can show all the program data. At the same time the operator can control the entire equipment or each independent part on the main controller panel.
Parameter of Five Layers Coextrusion Blown Film Lines
Type of the machine | SJGM-Z55×30×5-1100 |
max film width | 650mm |
thickness of the film | 0.1mm-0.2mm |
extrusion output | 70kg/h - 70kg/h - 70kg/h |
Extrusion Unit | |
main motor | 30kw |
screw diameter | Φ55mm×5 |
screw and barrel material | SACM645(38CrMoA1A) |
screw ratio L/D | 30:1 |
barrel air cooling fans | 0.24kw×3/0.24kw×3/0.24kw×3/0.24kw×3/0.24kw×3 |
type of screen changer | Non-disassemble manuel screen changer or hydraulic screen changer |
Die Unit | |
type of the diehead | stationary die |
die diameter | Φ200mm |
air blower fan | 4kw |
Haul-Off Unit | |
type of the tower | oscillating tower |
haul-off roller dia.& width | Φ210×1100mm |
haul-off motor | 1.5kw |
height of the machine | 14.5m |
Winder Unit | |
type of winder | Auto single winder |
winder roller dia.& width | Φ400×1100mm |
winder roller motor | 1.5kw |
max roll diameter | Φ1500mm |

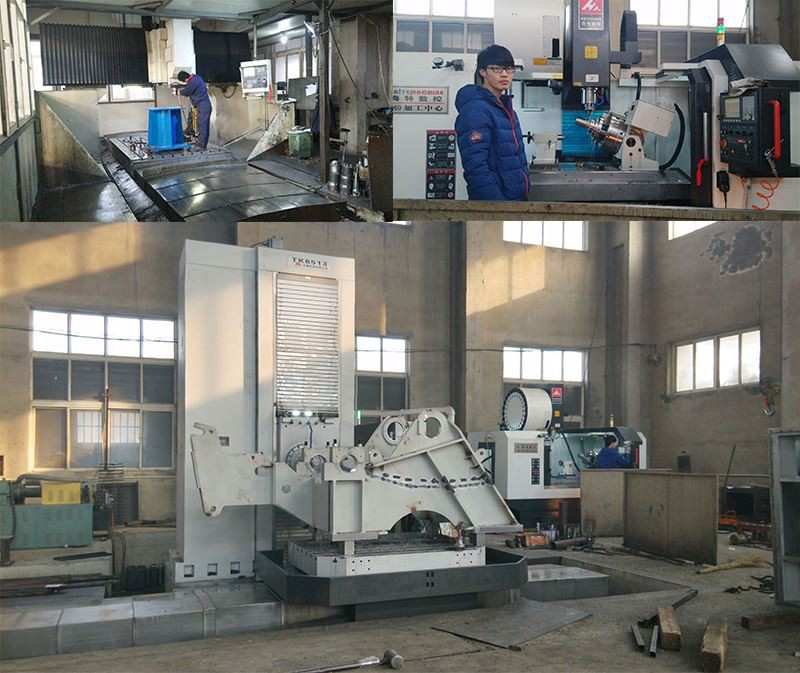

Main machining facilities
Workshop

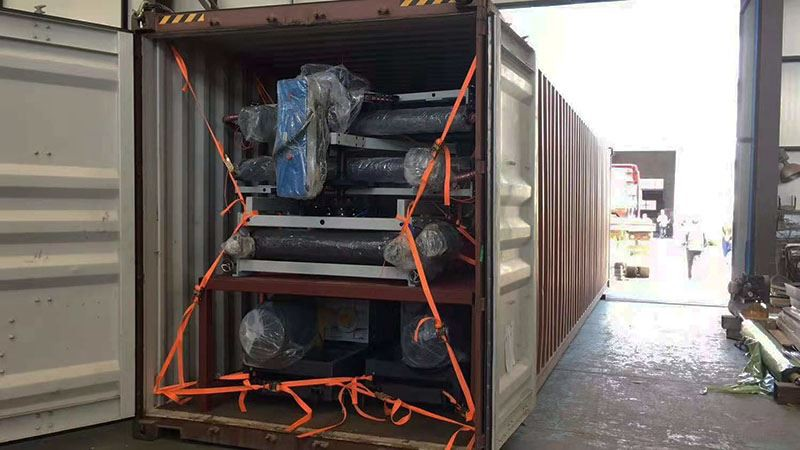

Delivery
