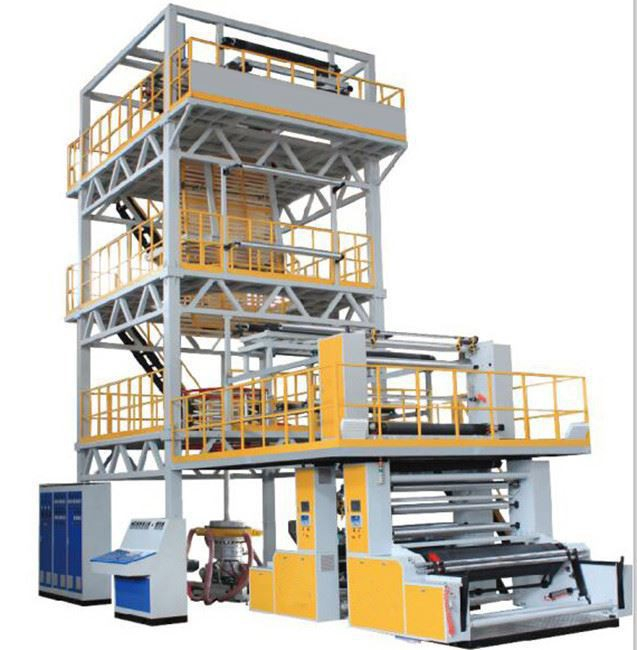

High Transparent Film Blowing Machines

Customer over 60 nation around world

Quantity:
facebook sharing button
wechat sharing button
linkedin sharing button
sharethis sharing button

Application of High Transparent Film Blowing Machines

Specifications are subject to change without notice for improvement 1400-2400mm LDPE,LLDPE,HDPE,MLLDPE,EVA plastic resin film extruder are standard typeblown film machine.

Main Features of High Transparent Film Blowing Machines

1) Simple structure with automatic device, easy installation, and maintenance.
2) High output and stable running machine, maxoutput: 120-400kg/h.
3) use virgin material, the machine can make a thin film, the thickness: 0.02-0.15mm.
4) loss-in-weight gravimetric system, control extruding output, and thickness. gram/meter.
5) winding roller can handle a heavy film roller. the max film roller can be 1100mm in diameter.
6) easy change film roller design, when the film roller full, just move the arm to change the airshaft. and easy to cut.

Parameter of High Transparent Film Blowing Machines

Type of the machine

SJGM-Z55×30×3-1600

SJGM-Z55×30×2+65×30×1-1800

SJGM-Z65×30×2+75×30×1-2200

SJGM-Z75×30×3-2600

max film width

1400mm

1600mm

2000mm

2400mm

thickness of the film

0.02mm-0.15mm

0.02mm-0.15mm

0.02mm-0.15mm

0.02mm-0.15mm

max output

120kg-150kg/h

200kg/h

300kg/h

250kg-400kg/h

Extrusion Unit

main motor

30kw×3

30kw×2+37kw×1

37kw×2+55kw1×

55kw×3

screw diameter

Φ55mm×3

Φ55mm×2+Φ65mm×1

Φ65mm×2+Φ75mm×1

Φ75mm×3

screw and barrel material

SACM645(38CrMoA1A)

SACM645(38CrMoA1A)

SACM645(38CrMoA1A)

SACM645(38CrMoA1A)

screw ratio L/D

30:1

30:1

30:1

30:1

barrel air cooling fans

0.24kw×3×3

0.24kw×3×2+0.37kw×4×1

0.37kw×4×2+0.37kw×5×1

0.37kw×5×3

type of screen changer

Non-disassemble manual screen changer

Non-disassemble manual screen changer

Non-disassemble manual or Hyhraulic screen changer

Non-disassemble manual or Hyhraulic screen changer

Die Unit

type of the diehead

stationary die

stationary die

stationary die

stationary die

die diameter

Φ300mm

Φ400mm

Φ600mm

Φ700mm

air blower fan

11kw

11kw

15kw

15kw

Haul-Off Unit

type of the tower

Oscillating tower

Oscillating tower

Oscillating tower

Oscillating tower

haul-off roller dia.& width

Φ210×1600mm

Φ210×1800mm

Φ210×2200mm

Φ210×2600mm

haul-off motor

1.5kw

2.2kw

2.2kw

2.2kw

height of the machine

9.2m

10.5m

12.5m

12.5m

Winder Uni

type of winder

Automatic winder

Automatic winder

Automatic winder

Automatic winder

winder roller dia.& width

Φ300×1600mm

Φ300×1800mm

Φ300×2200mm

Φ300×2600mm

winder roller motor

1.5kw

2.2kw

2.2kw

.22kw

max roll diameter

Φ1000mm

Φ1000mm

Φ1000mm

Φ1000mm

-1

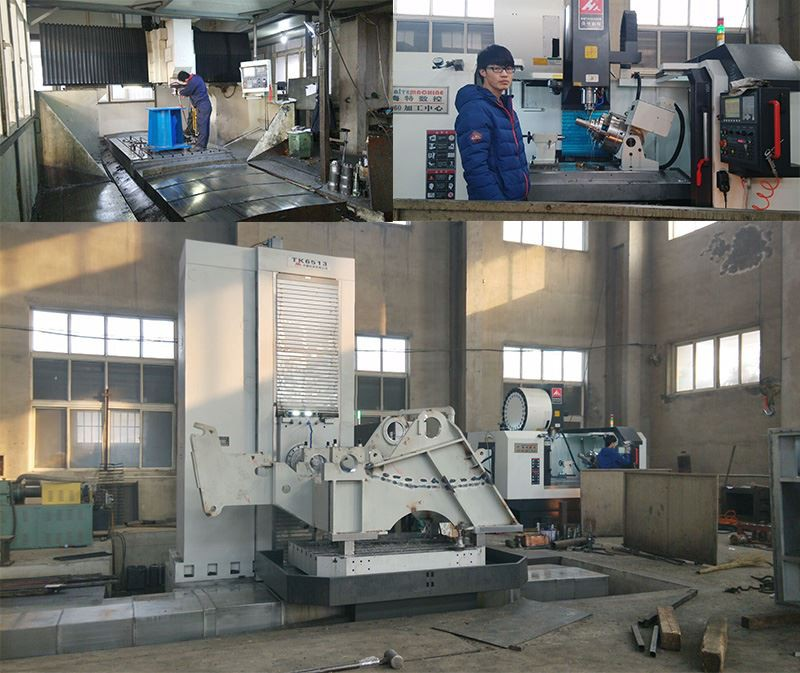

Main machining facilities

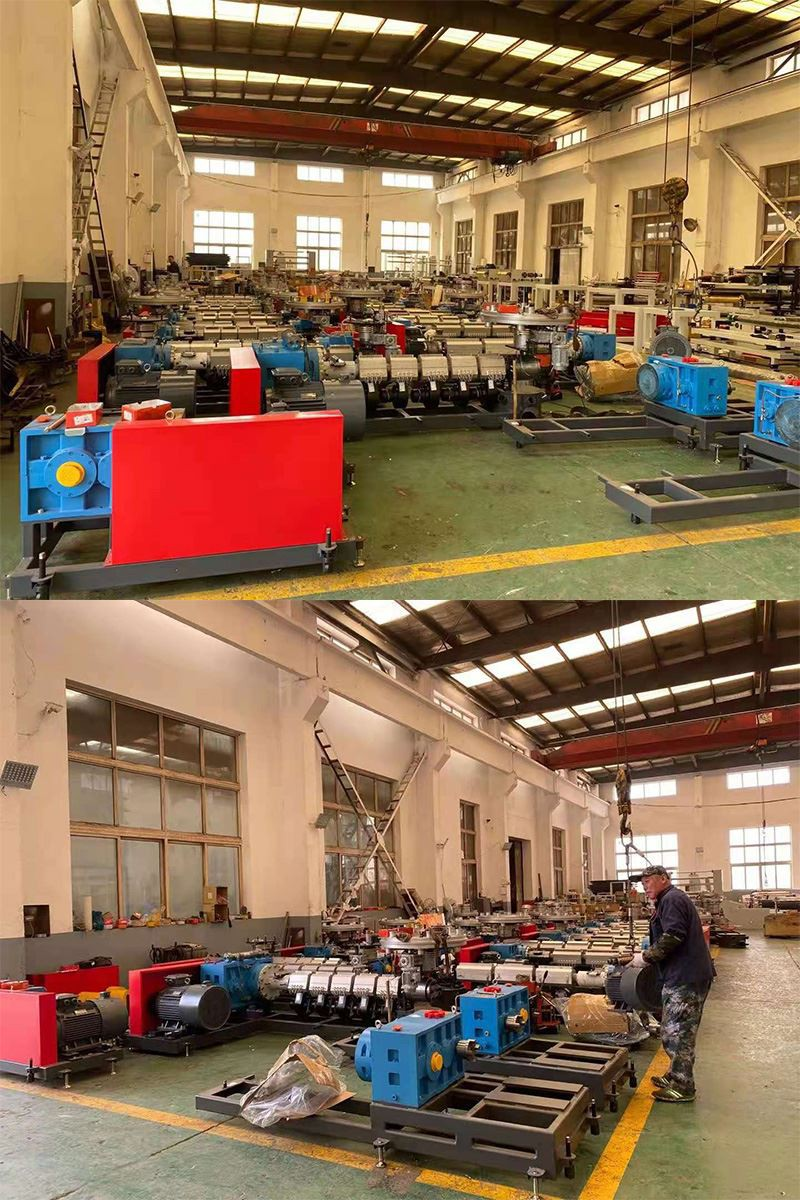

workshop

Workshop

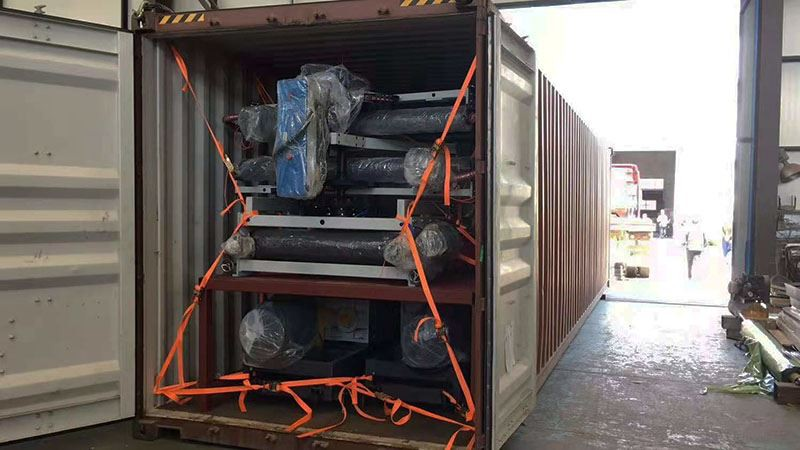

Delivery

_202107041627521

Question 1. Why should buy from us not from other suppliers?

We are repute and professional blown film machines factory from China. we have very well experiences can ensure our machine is quality controlled and reliable. we also have our own CNC center for making die head for machine.

Question 2. What certificates do your blown film machines have?
Our factory fully implements the ISO9001:2015 quality management system EU safety CE certification, which can meet the safety requirements of most countries in the world.

Question 3. What are the main markets of your blown film machines?

As of December 2019, our blown film machines had been sold to 60 countries around the world, mainly including China, Europe, the Middle East, Southeast Asian, the United States, Canada and Latin American countries.


Question 4. What is the general delivery time of blown film machines?

The production of a blown film machine usually takes about 30 to 45 working days, depending on the size and configuration of the machine.


Question 5. How long is the warranty period of blown film machines?
All our blown film machines have a 14 month warranty, starting from the date of machine arrives at customer's factory and finished commissioning. During this period, we will provide a fully free warranty for the whole machine, except consumables.

Question 6. Can I visit the blown film machine production plant and watch the commissioning process?
Of course you can. we welcome you to visit us at any time. We will pick you up at Dalian Airport

Question 7. Where is the blown film machine factory?
Our factory is located in Dalian, China, A well known and repute coast city. We will pick you up at the airport.

Question 8. What kind of after-sales service do you provide if the blown film machines encounter technical problems or part damage?
We will remotely communicate with you via video to tell you how to solve technical problems of blown film machines. If the problem can't resolve, we will send engineer to your factory. If the damaged part (non-consumable part) is within the warranty period, we will provide you with another one free of charge, with the transportation charges paid by our factory.

Question 9. What is the payment method for blown film machine orders?
We will start production when we received the 30% deposit of the order. After we finished the production and received the last 70% payment, we will arrange shipment and send machine to customer.
