Application of 5 Layer Coextrusion Blown Film Machines This machine are used for producing FFS heavy duty bag film and packaging chemical material film,it is a high performance configuration for this kind of film. The machine is equipped with oscillating tower totary system IBC system,Auto air...
| Quantity: | |
|---|---|

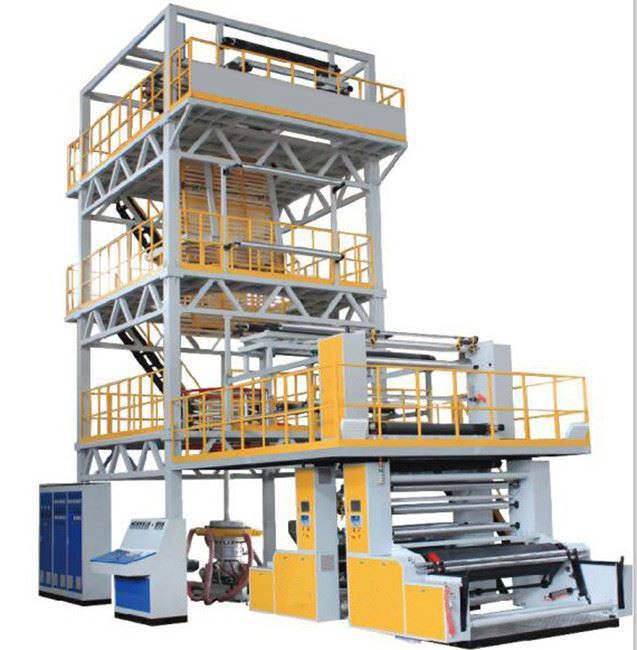

Application of Heavy Duty Blown Film Machines
This heavy duty film blowing machine are used for producing heavy duty bag film and packaging chemical material film.
The machine is equipped with oscillating tower totary system and IBC system,max output 4200kg/24h,and is equipped with inner embossing roller, it is easy for piling up,prevent from slipping.
Parameter of Heavy Duty Blown Film Machines
Type of the machine | SJGM-Z55×30×3-850 | SJGM-Z65×30×3-850 |
max film width | 650mm | 650mm |
thickness of the film | 0.1mm-0.2mm | 0.1mm-0.2mm |
extrusion output | 70kg/h - 70kg/h - 70kg/h | 110kg/h-110kg/h-110kg/h |
Extrusion Unit | ||
main motor | 30kw / 30kw / 30kw | 37kw / 37kw / 37kw |
screw diameter | Φ55mm-Φ55mm-Φ55mm | Φ65mm-Φ65mm-Φ65mm |
screw and barrel material | SACM645(38CrMoA1A) | SACM645(38CrMoA1A) |
screw ratio L/D | 30:1 | 30:1 |
barrel air cooling fans | 0.24kw×3 | 0.24kw×3 |
type of screen changer | Non-disassemble manuel screen changer | m Non-disassemble manuel screen changer anuel arm |
Die Unit | ||
type of the diehead | Stationary die | stationary die |
die diameter | Φ200mm | Φ200mm |
air blower fan | 3kw | 3kw |
Haul-Off Unit | ||
type of the tower | oscillating tower | oscillating tower |
haul-off roller dia.& width | Φ210×850mm | Φ210×850mm |
haul-off motor | 1.5kw | 1.5kw |
height of the machine | 10.5m | 12.5m |

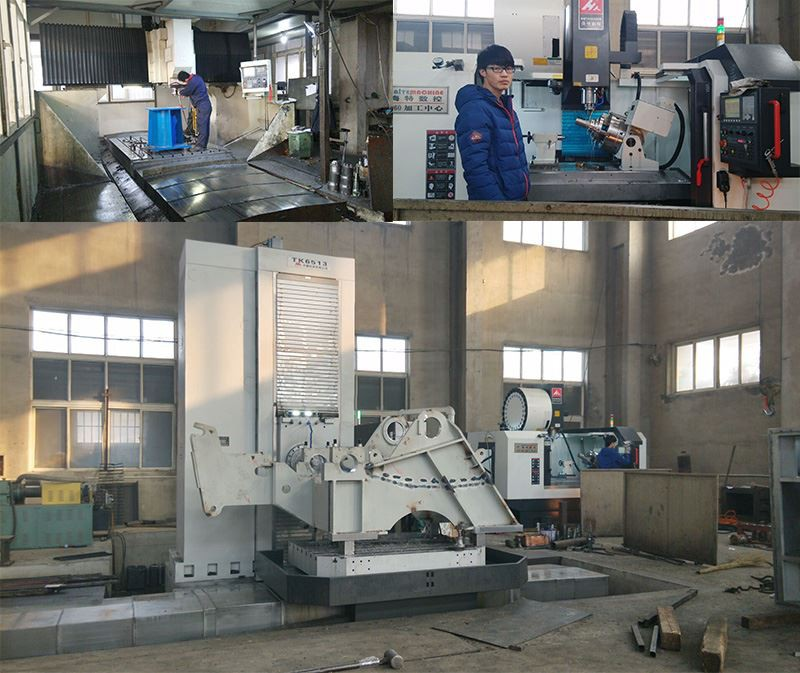

Main machining facilities
Workshop
