Application of Self Adhesive Film Blown Machines For tyre isolating film blown machine,it should be three layers co-extrusion machine,with the Oscillating tower, you can choose high configuration for auto air ring or chiller,or dosing unit. The tyre isolating film produced by our machine each...
| Quantity: | |
|---|---|

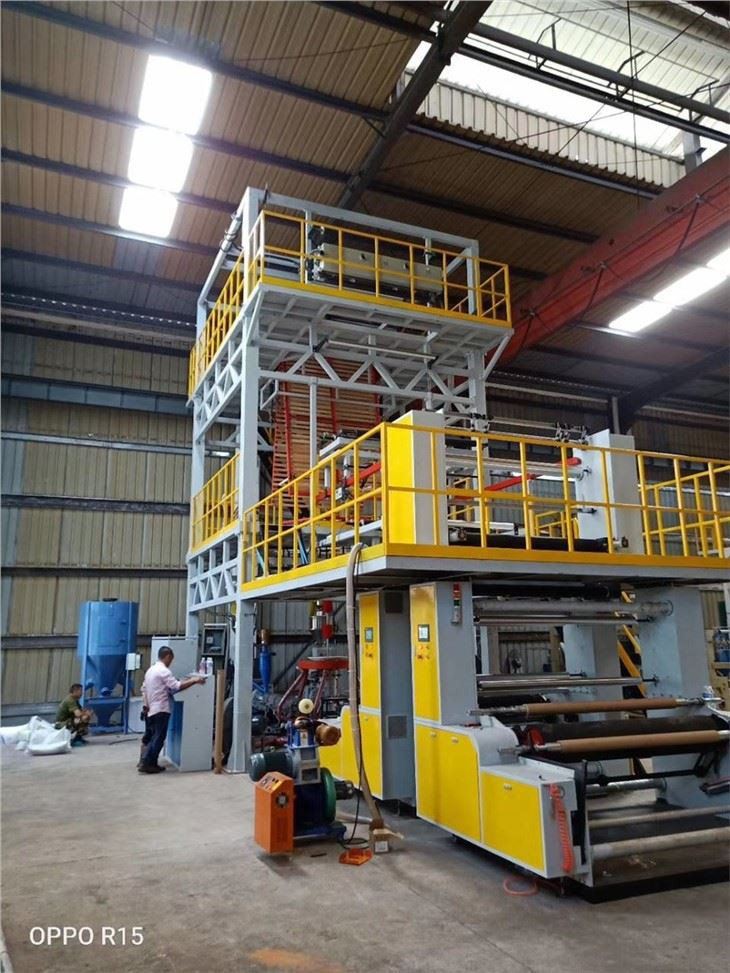

Application of Self Adhesive Film Blown Machines
For tyre isolating film blown machine,it should be three layers co-extrusion machine,with the Oscillating tower, you can choose high configuration for auto air ring or chiller,or dosing unit. The tyre isolating film produced by our machine each performance index achieves the standard
Alao,this machine can blow HDPE and LDPE film for different isolating and industry film.
Parameter of Self Adhesive Film Blown Machines
Type of the machine | SJM-Z65×30×2+75×30×1-2200mm |
max film width | 2000mm |
thickness of the film | 0.05-0.15mm |
max output | 300kg/h |
Extrusion Unit | |
main motor | 37 kw×2+55kw×1 |
screw diameter | Φ65mm×2+Φ75mm×1 |
screw and barrel material | SACM645 (38CrMoA1A) |
screw ratio L/D | 30:1 |
barrel air cooling fans | 0.37kw×4×2+ 0.37kw×5×1 |
type of screen changer | hydraulic |
Die Unit | |

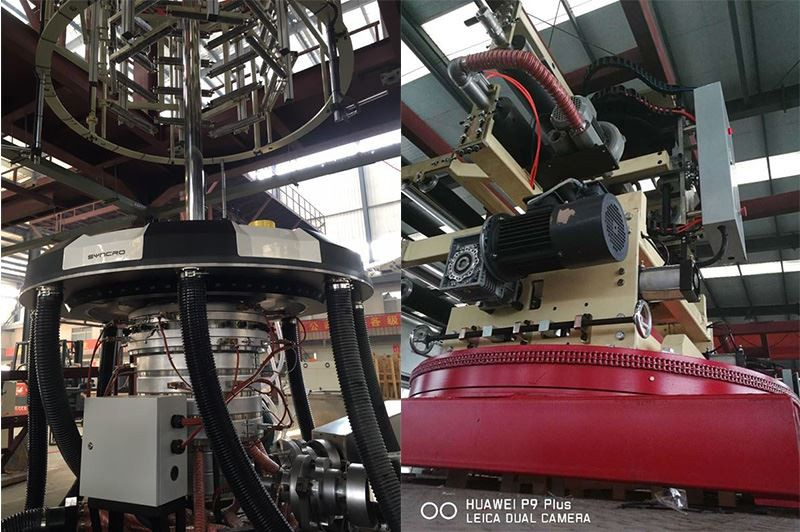

type of the diehead | stationary die |
die diameter | Φ600mm |
air blower fan | 15kw |
Haul-Off Unit | |
type of the tower | Oscillating tower |
haul-off roller dia.& width | Φ210×2200mm |
haul-off motor | 2.2kw |
height of the machine | 12.5m |
Winder Unit | |
type of winder | Automatic winder |
Other parts | |
Auto air ring | |
Dosing unit | |
Chiller | |
Delivery
Delivery
