Application of Plastic Film Extruder Machines This plastic film extruder machine mainly produce lamination film or complex film from LDPE,LLDPE,MLLDPE,HDPE,EVA resin,and used for high-value film This unit equipped with IBC system, automatic air wing, dosing unit,chiller unit,Oscillating...
| Quantity: | |
|---|---|

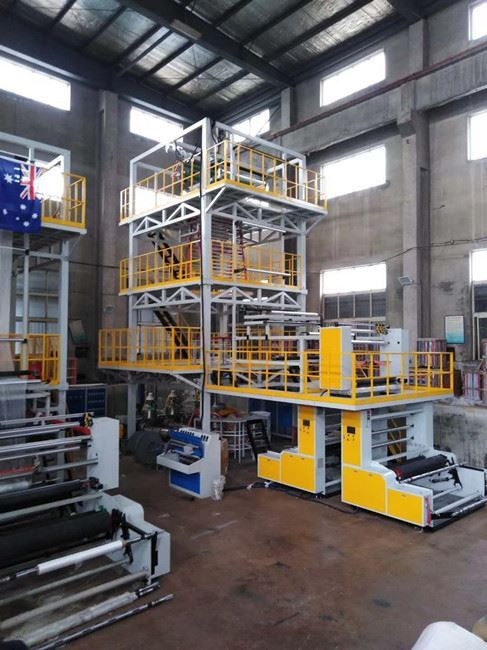

Application of Intelligent Package Film Blowing Machines
This professional intelligent package film blowing machine mainly produce liquid packing film.This unit equipped with IBC system, automatic air wing, dosing unit,chiller unit,Oscillating tower,automatic winder,etc, can meet your requirements.
This unit mainly producing the film from LDPE,LLDPE,MLLDPE,HDPE,EVA resin, the film widely use for packaging of the food,fruit and many kinds of high-value film.
This unit dopts automatic air ring,dosing gravimetric,chiller unit,IBC system,and waste film recycle system,
This machine adopts the oscillating system,so the film is much easier to laminate in high speed and print in multicolors
This unit adopts auto air ring and IBC system,so the film has a excellent transparency and has excellent higher output.
Parameter of Intelligent Package Film Blowing Machines`
Type of the machine | SJM- Z65×30×2+Z85×30×1-2200mm |
max film width | 《2000mm |
thickness of the film | 0.03-0.10mm |
max output | 300kg/h |
Extrusion Unit | |
main motor | 37kw×2+75kw×1 |
screw diameter | Φ65mm×2+Φ85mm×1 |
screw and barrel material | SACM645 (38CrMoA1A) |
screw ratio L/D | 30:1 |
barrel air cooling fans | 0.37kw×4×2+0.37kw×6×1 |
type of screen changer | Hydraulic screen changer |
Die Unit | |
type of the diehead | stationary die |
die diameter | Φ550mm-Φ600mm |
air blower fan | 11kw |
Haul-Off Unit | |
type of the tower | Oscillating tower |
haul-off roller dia.& width | Φ210×2200mm |
haul-off motor | 2.2kw |
height of the machine | 11.5m |
Winder Unit | |
type of winder | Automatic back to back winder |
Other parts | |
IBC system | |

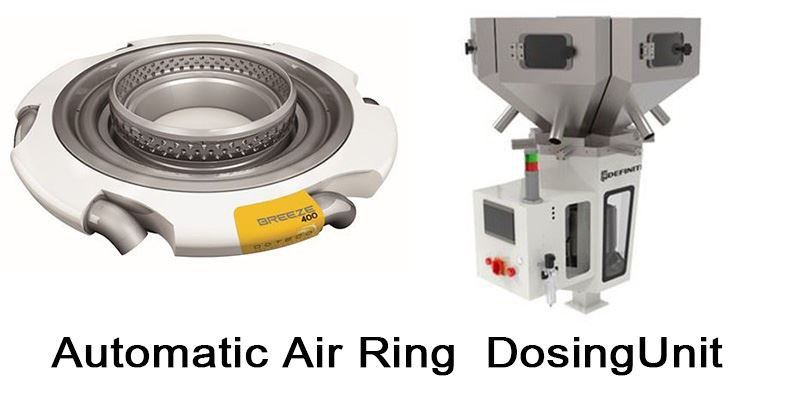

Automatic air ring | |
Dosing unit | |
Chiller | |
Delivery
Application of Intelligent Package Film Blowing Machines
This professional intelligent package film blowing machine mainly produce liquid packing film.This unit equipped with IBC system, automatic air wing, dosing unit,chiller unit,Oscillating tower,automatic winder,etc, can meet your requirements.
This unit mainly producing the film from LDPE,LLDPE,MLLDPE,HDPE,EVA resin, the film widely use for packaging of the food,fruit and many kinds of high-value film.
This unit dopts automatic air ring,dosing gravimetric,chiller unit,IBC system,and waste film recycle system,
This machine adopts the oscillating system,so the film is much easier to laminate in high speed and print in multicolors
This unit adopts auto air ring and IBC system,so the film has a excellent transparency and has excellent higher output.
Parameter of Intelligent Package Film Blowing Machines`
Type of the machine | SJM- Z65×30×2+Z85×30×1-2200mm |
max film width | 《2000mm |
thickness of the film | 0.03-0.10mm |
max output | 300kg/h |
Extrusion Unit | |
main motor | 37kw×2+75kw×1 |
screw diameter | Φ65mm×2+Φ85mm×1 |
screw and barrel material | SACM645 (38CrMoA1A) |
screw ratio L/D | 30:1 |
barrel air cooling fans | 0.37kw×4×2+0.37kw×6×1 |
type of screen changer | Hydraulic screen changer |
Die Unit | |
type of the diehead | stationary die |
die diameter | Φ550mm-Φ600mm |
air blower fan | 11kw |
Haul-Off Unit | |

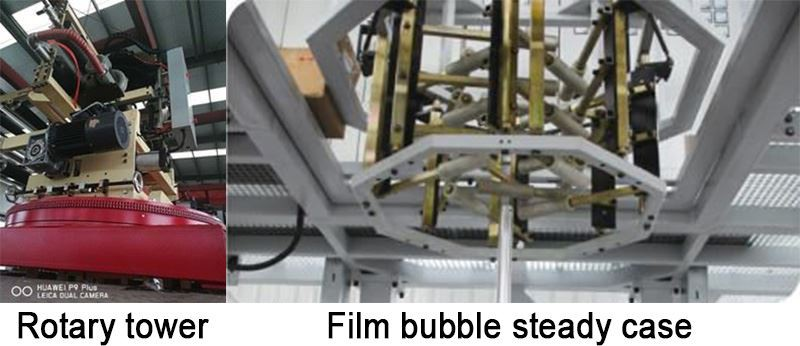

type of the tower | Oscillating tower |
haul-off roller dia.& width | Φ210×2200mm |
haul-off motor | 2.2kw |
height of the machine | 11.5m |
Winder Unit | |
type of winder | Automatic back to back winder |
Other parts | |
IBC system | |
Automatic air ring | |
Dosing unit | |
Chiller | |
Delivery
