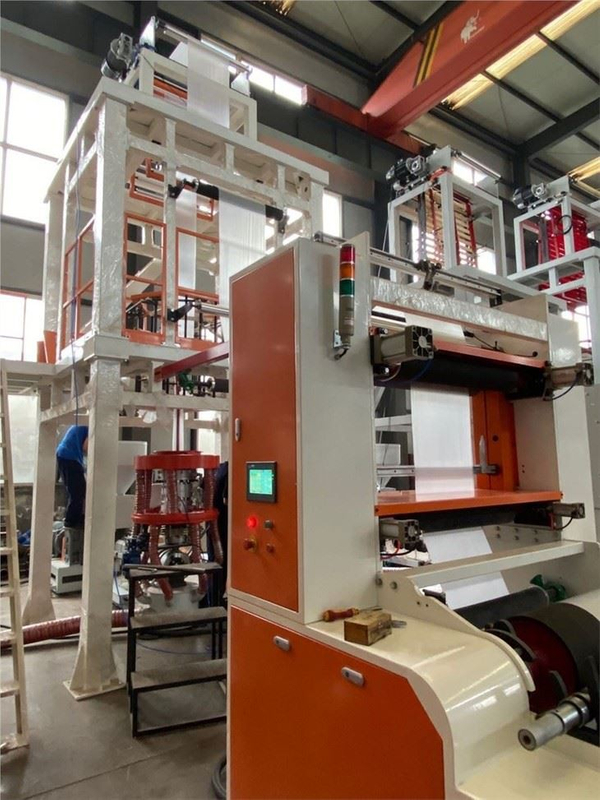

Application of Plastic Bag Blown Film Extrusions
This line mainly produce the film from HDPE resin,the machine is widely applied to produce the rubbish bag, packaging bags for food,clothing, vest bags and industrial packaging, etc.
Features of Plastic Bag Blown Film Extrusions
1: The line adopts the profession HDPE screw and barrel and the HDPE die head comes from Taiwan,the output is much higher,the plasticizing is better,stiffness excellent;
2: the screw and barrel are made of quality alloy steel that have been nitrized and processed in a precision way, then spray the alloy powder again,hence it is sound in hardness,durable in corrosion resistance,the service life will be longer;
3: If producing rubbish bag,when the tube film width less than 700mm, mainly adopt single layer with Φ45mm or Φ50mm extruder and ABA type extruder,and can be with the gusset device and eight-fold device.
4: If producing rubbish bag,when the tube film width more than 700mm, mainly adopt ABA type with Φ55mm×2 extruder and can be with the gusset device
Parameter of Plastic Bag Blown Film Extrusions
Type of the machine | SJM-Z65×30×1 -1600 | SJM-Z75×30×1 -2400 | SJM-Z90×30×1 -2800 | SJM-Z50×30×2 +55×30×1-1600 | SJM-Z65×30×3 -2200 |
max film width | 450mm | 550mm | 1000mm | ||
thickness of the film | 0.008-0.03mm | 0.008-0.03mm | 0.008-0.03mm | ||
max output | 50kg/h | 65kg/h | 90kg/h | ||
Extrusion Unit | |||||
main motor | 11kw×2 | 15kw×2 | 22kw×2 | ||
screw diameter | Φ40mm | Φ45mm | Φ55mm | ||
screw and barrel material | SACM645 (38CrMoA1A) | SACM645 (38CrMoA1A) | SACM645 (38CrMoA1A) | ||
screw ratio L/D | 30:1 | 30:1 | 30:1 | ||
barrel air cooling fans | 0.24kw×3 | 0.24kw×3 | 0.24kw×3 | ||
type of screen changer | manual arm | manual arm | manual arm | ||
Die Unit | |||||
type of the diehead | stationary die | stationary die | stationary die | ||
die diameter | Φ50mm | Φ60mm | Φ80mm-Φ100mm | ||
air blower fan | 3kw | 3kw | 4kw | ||
Haul-Off Unit | |||||
type of the tower | Fixed tower | Fixed tower | Fixed tower | ||
haul-off roller dia.& width | Φ163×550mm | Φ163×650mm | Φ163×1100mm | ||
haul-off motor | 1.5kw | 1.5kw | 1.5kw | ||
height of the machine | 4.5m | 5m | 6m | ||
Winder Unit | |||||
type of winder | Manuel winder | Manuel winder | Manuel winder | ||
winder roller dia.& width | Φ300×550mm | Φ300×650mm | Φ300×1100mm | ||
winder roller motor | 1.5kw | 1.5kw | 1.5kw | ||
max roll diameter | Φ1000mm | Φ1000mm | Φ1000mm | ||
Other Parts | |||||

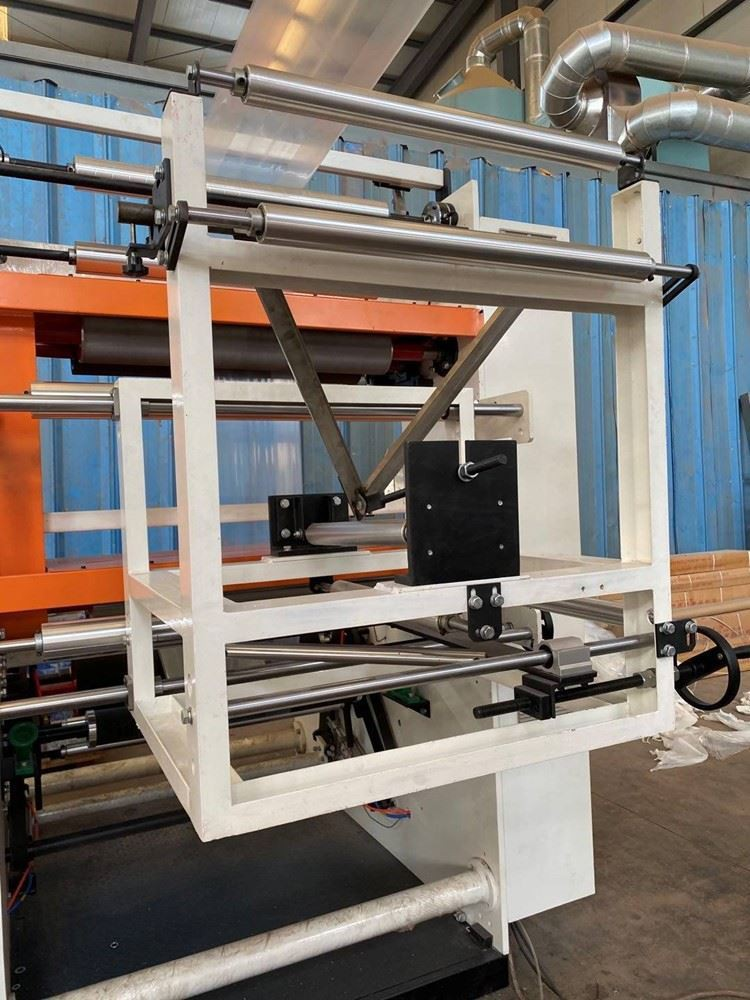

Gusset device | |||||
Eight-fold device | |||||
