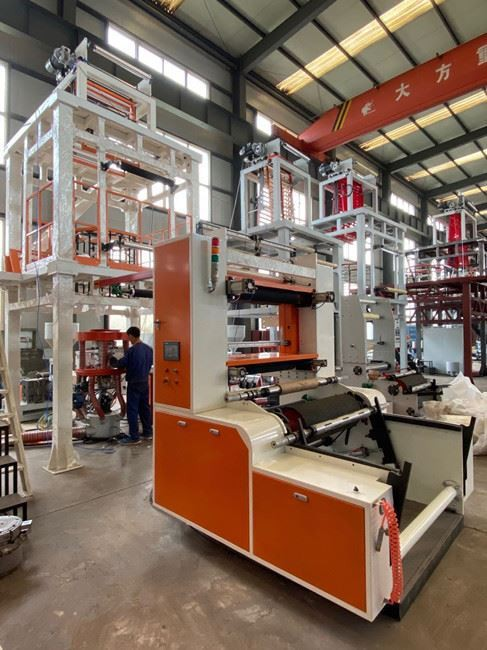

Application of Biodegradable Plastic Film Blowing Machines This biodegradable film blowing machines mainly producing the degradable film from PLA,PBAT,PHA,PSM and filler, the machine is widely applied to producing the packaging bags for foodstuff, clothing,rubbish bag and vest bags,agriculture...
| Quantity: | |
|---|---|
Feature of Mulch Film Making Machines
1. Durable, tear-resistant, anti-corruption
The raw material of landscape fabric is polypropylene, which has good heat resistance, non-toxic, odorless, tasteless, environmentally safe, chemically stable, and corrosion-resistant. It can be used for a long time, and it is very strong, not easy to tear.
2. Weed Control
Normally, the color of the landscape fabric is black. After being covered on the ground, it can effectively inhibit the penetration of ultraviolet rays through the soil. Although the water can penetrate, there is no sunlight, therefore, weeds will not grow.
3. Good Permeability
Allow water and air to penetrate, which is beneficial to the growth of plants. The landscape fabric can ensure that there is no water accumulated at the roots, so that the air in the roots area has a certain degree of fluidity, and it will not affect the water permeability of the soil, and can effectively prevent the occurrence of retting.
4. Save Costs
Using landscape fabric can save a lot of manual weeding costs and fertilizer costs. It can not only maintain the stability of soil moisture, but also more effectively solve the problems of soil microorganisms, soil compaction, and crop growth. One investment can take several years, and it is the best choice for weed control.
Parameter of Mulch Film Making Machines
Type of the machine | SJM-Z45×32-650 | SJM-Z50×32-850 | SJM-Z55×32-850 | SJM-Z65×32-1600 |
max film width | 500mm | 600mm | 600mm | 1300mm |
thickness of the film | 0.015-0.10mm | 0.015-0.10mm | 0.015-0.10mm | 0.015-0.10mm |
max output | 25kg-40kg/h | 35kg-50kg/h | 40kg-60kg/h | 90kg/h |
Extrusion Unit | ||||
main motor | 15kw | 18.5kw | 22kw | 37kw |
screw diameter | Φ45mm | Φ50mm | Φ55mm | Φ65mm |
screw and barrel material | SACM645(38CrMoA1A) | SACM645(38CrMoA1A) | SACM645(38CrMoA1A) | SACM645(38CrMoA1A) |
screw ratio L/D | 32:1 | 32:1 | 32:1 | 32:1 |
barrel air cooling fans | 0.24kw×5 | 0.24kw×5 | 0.24kw×5 | 0.24kw×5 |
type of screen changer | manuel arm | manuel arm | manuel arm | manuel arm |
Die Unit | ||||
type of the diehead | stationary die or rotary die | stationary die or rotary die | stationary die or rotary die | stationary die or rotary die |
die diameter | Φ80mm Φ120mm | Φ120mm Φ140mm | Φ120mm Φ140mm | Φ250mm |
air blower fan | 4kw | 4kw | 4kw | 7.5kw |
Haul-Off Unit | ||||
type of the tower | Fixed tower | Fixed tower | Fixed tower | Fixed tower |
haul-off roller dia.& width | Φ163×650mm | Φ163×850mm | Φ163×850mm | Φ163×1600mm |
haul-off motor | 1.5kw | 1.5kw | 1.5kw | 1.5kw |
height of the machine | 5m | 5m | 5m | 6m |
Winder Unit | ||||
type of winder | Manuel or Auto | Manuel or Auto | Manuel or Auto | Manuel or Auto |
winder roller dia.& width | Φ300×650mm | Φ300×850mm | Φ300×850mm | Φ300×1600mm |
winder roller motor | 1.5kw | 1.5kw | 1.5kw | 1.5kw |
max roll diameter | Φ1000mm | Φ1000mm | Φ1000mm | Φ1000mm |

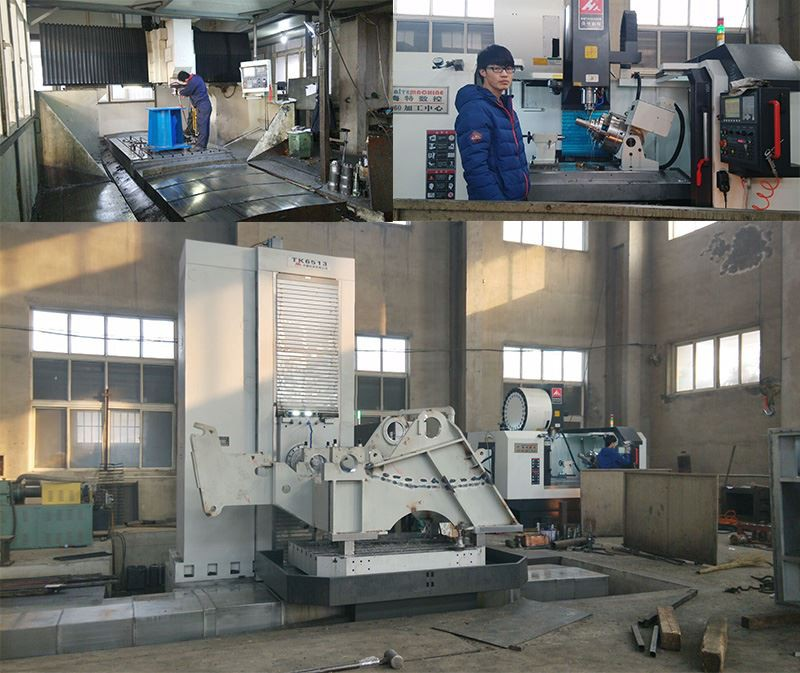

Main machining facilities

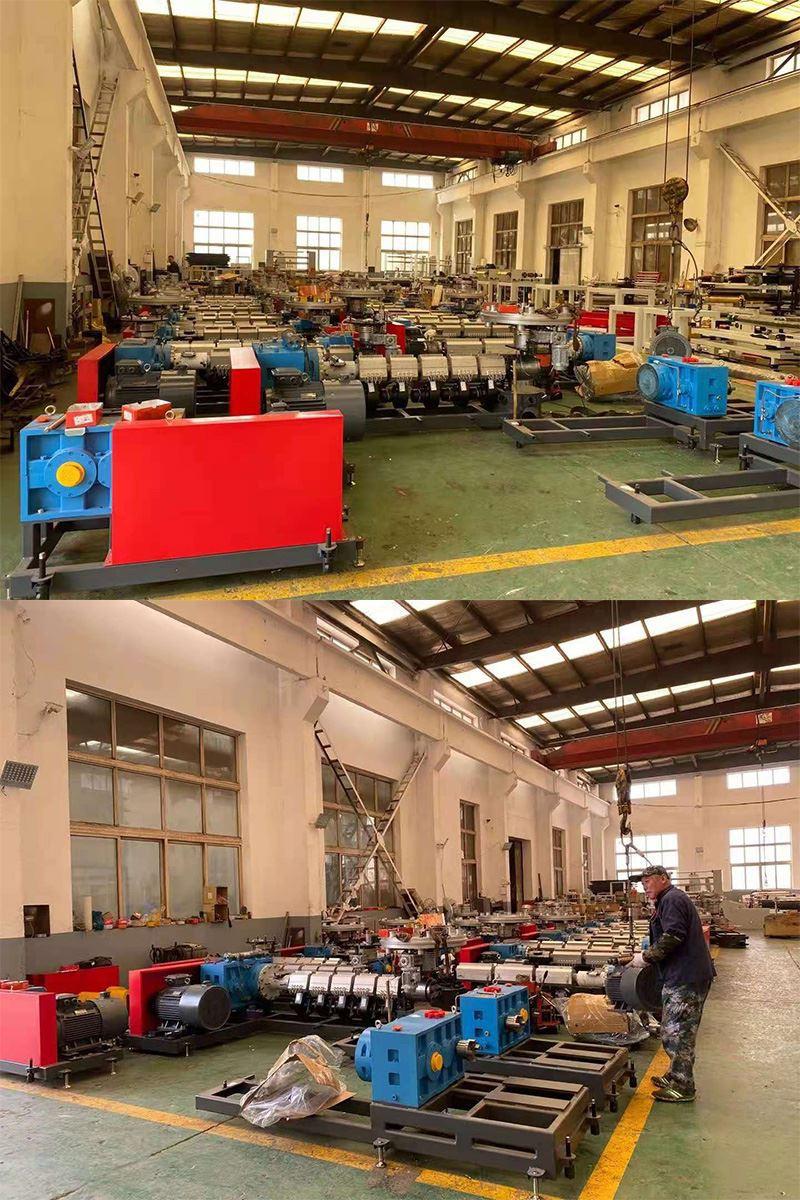

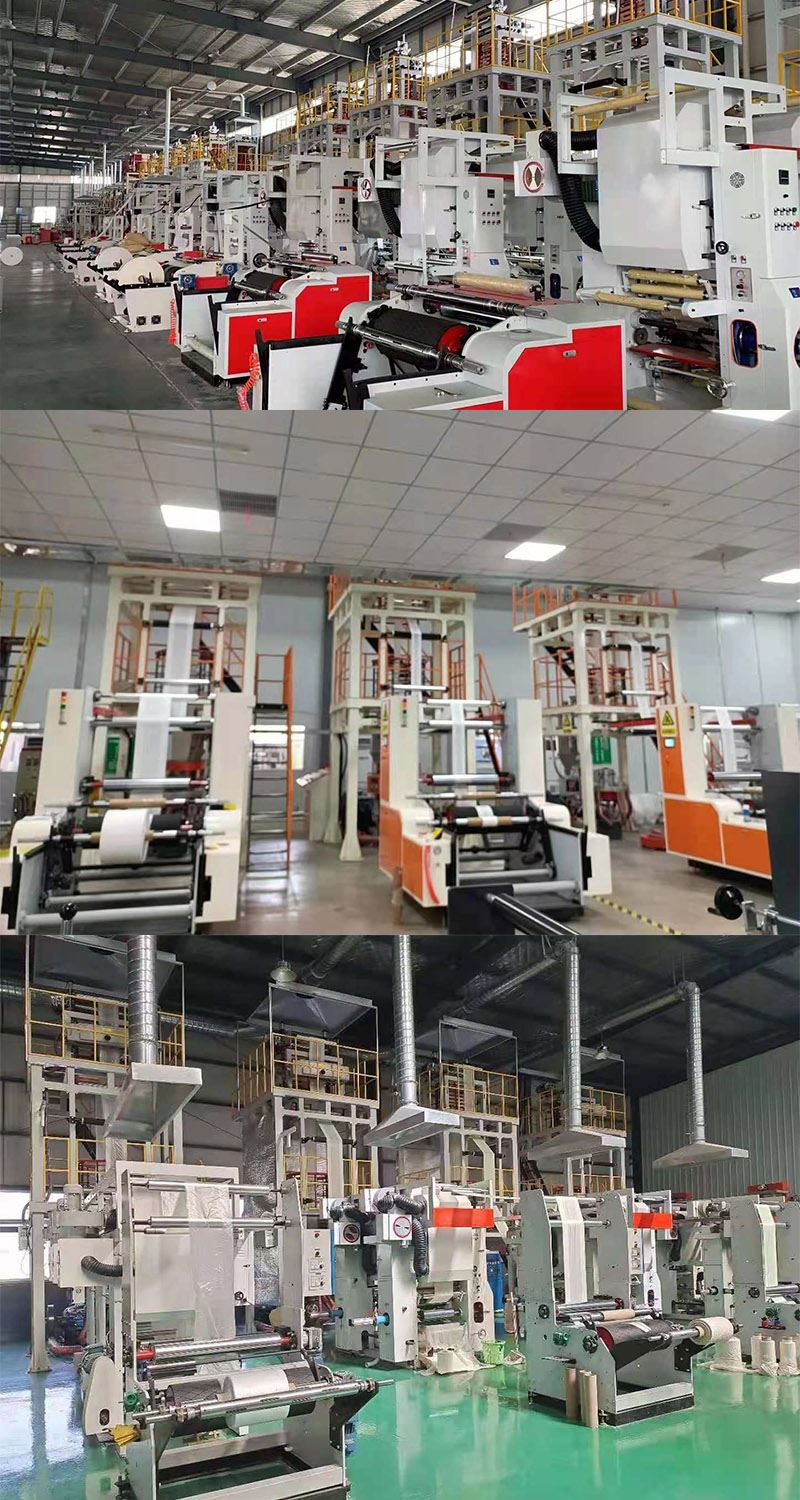

Workshop

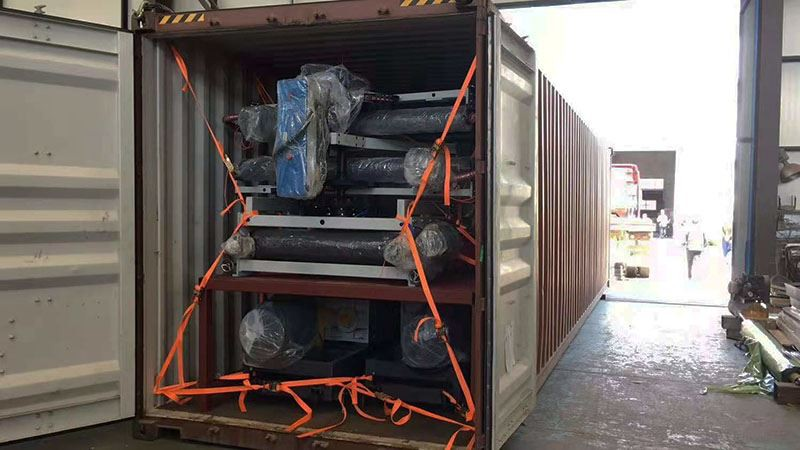

Delivery
Feature of Mulch Film Making Machines
1. Durable, tear-resistant, anti-corruption
The raw material of landscape fabric is polypropylene, which has good heat resistance, non-toxic, odorless, tasteless, environmentally safe, chemically stable, and corrosion-resistant. It can be used for a long time, and it is very strong, not easy to tear.
2. Weed Control
Normally, the color of the landscape fabric is black. After being covered on the ground, it can effectively inhibit the penetration of ultraviolet rays through the soil. Although the water can penetrate, there is no sunlight, therefore, weeds will not grow.
3. Good Permeability
Allow water and air to penetrate, which is beneficial to the growth of plants. The landscape fabric can ensure that there is no water accumulated at the roots, so that the air in the roots area has a certain degree of fluidity, and it will not affect the water permeability of the soil, and can effectively prevent the occurrence of retting.
4. Save Costs
Using landscape fabric can save a lot of manual weeding costs and fertilizer costs. It can not only maintain the stability of soil moisture, but also more effectively solve the problems of soil microorganisms, soil compaction, and crop growth. One investment can take several years, and it is the best choice for weed control.
Parameter of Mulch Film Making Machines
Type of the machine | SJM-Z45×32-650 | SJM-Z50×32-850 | SJM-Z55×32-850 | SJM-Z65×32-1600 |
max film width | 500mm | 600mm | 600mm | 1300mm |
thickness of the film | 0.015-0.10mm | 0.015-0.10mm | 0.015-0.10mm | 0.015-0.10mm |
max output | 25kg-40kg/h | 35kg-50kg/h | 40kg-60kg/h | 90kg/h |
Extrusion Unit | ||||
main motor | 15kw | 18.5kw | 22kw | 37kw |
screw diameter | Φ45mm | Φ50mm | Φ55mm | Φ65mm |
screw and barrel material | SACM645(38CrMoA1A) | SACM645(38CrMoA1A) | SACM645(38CrMoA1A) | SACM645(38CrMoA1A) |
screw ratio L/D | 32:1 | 32:1 | 32:1 | 32:1 |
barrel air cooling fans | 0.24kw×5 | 0.24kw×5 | 0.24kw×5 | 0.24kw×5 |
type of screen changer | manuel arm | manuel arm | manuel arm | manuel arm |
Die Unit | ||||
type of the diehead | stationary die or rotary die | stationary die or rotary die | stationary die or rotary die | stationary die or rotary die |
die diameter | Φ80mm Φ120mm | Φ120mm Φ140mm | Φ120mm Φ140mm | Φ250mm |
air blower fan | 4kw | 4kw | 4kw | 7.5kw |
Haul-Off Unit | ||||
type of the tower | Fixed tower | Fixed tower | Fixed tower | Fixed tower |
haul-off roller dia.& width | Φ163×650mm | Φ163×850mm | Φ163×850mm | Φ163×1600mm |
haul-off motor | 1.5kw | 1.5kw | 1.5kw | 1.5kw |
height of the machine | 5m | 5m | 5m | 6m |
Winder Unit | ||||
type of winder | Manuel or Auto | Manuel or Auto | Manuel or Auto | Manuel or Auto |
winder roller dia.& width | Φ300×650mm | Φ300×850mm | Φ300×850mm | Φ300×1600mm |
winder roller motor | 1.5kw | 1.5kw | 1.5kw | 1.5kw |
max roll diameter | Φ1000mm | Φ1000mm | Φ1000mm | Φ1000mm |
Main machining facilities
Workshop
Delivery
