Application of 5 Layer Coextrusion Blown Film Machines This machine are used for producing FFS heavy duty bag film and packaging chemical material film,it is a high performance configuration for this kind of film. The machine is equipped with oscillating tower totary system IBC system,Auto air...
| Quantity: | |
|---|---|

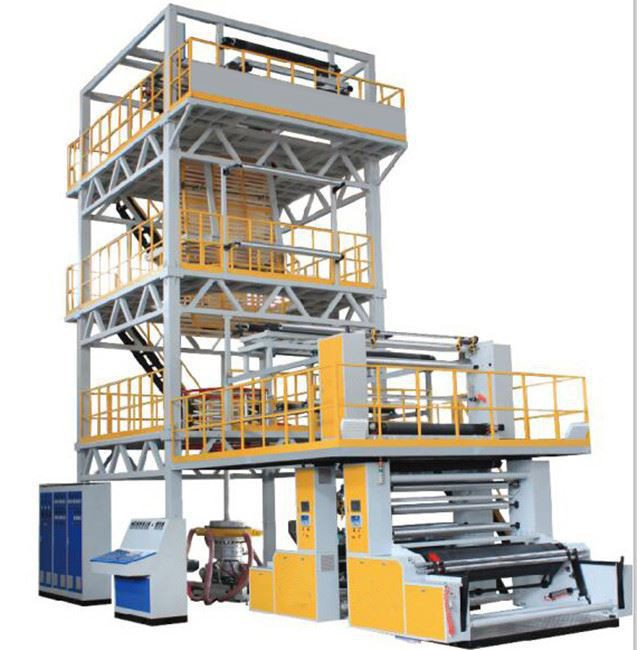

Application of Plastic Film Making Machines ABC
This plastic film making machines abc are used for producing heavy duty bag film and packaging chemical material film,it is a high performance configuration for this kind of film.
The machine is equipped with oscillating tower totary system, IBC system,auto air ring,dosing unit, and chiller,and is equipped with inner embossing roller, it is easy for piling up,prevent from slipping
Parameter of Plastic Film Making Machines ABC
Type of the machine | SJGM-Z55×30×3-850 | SJGM-Z65×30×3-850 |
max film width | 650mm | 650mm |
thickness of the film | 0.10mm-0.20mm | 0.10mm-0.20mm |
extrusion output | 70kg/h - 70kg/h - 70kg/h | 110kg/h-110kg/h-110kg/h |
Extrusion Unit | ||
main motor | 30kw / 30kw / 30kw | 37kw / 37kw / 37kw |
screw diameter | Φ55mm-Φ55mm-Φ55mm | Φ65mm-Φ65mm-Φ65mm |
screw and barrel material | SACM645(38CrMoA1A) | SACM645(38CrMoA1A) |
screw ratio L/D | 30:1 | 30:1 |
barrel air cooling fans | 0.24kw×3 | 0.24kw×3 |
type of screen changer | manuel arm | manuel arm |
Die Unit | ||
type of the diehead | stationary die | stationary die |
die diameter | Φ200mm | Φ200mm |
air blower fan | Non-disassemble manuel screen changer | Non-disassemble manuel screen changer |
Haul-Off Unit | ||

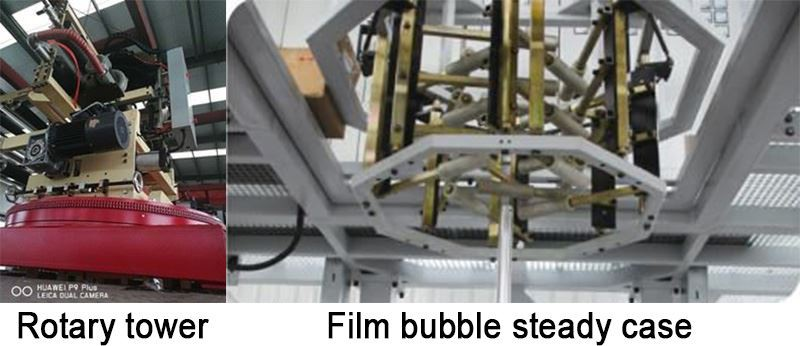

type of the tower | oscillating tower | oscillating tower |
haul-off roller dia.& width | Φ210×850mm | Φ210×850mm |
haul-off motor | 1.5kw | 1.5kw |
height of the machine | 10.5m | 12.5m |
Winder Unit | ||
type of winder | Auto single winder | Auto single winder |
winder roller dia.& width | Φ400×850mm | Φ400×850mm |
winder roller motor | 1.5kw | 1.5kw |
max roll diameter | Φ1500mm | Φ1500mm |
Other Parts | ||

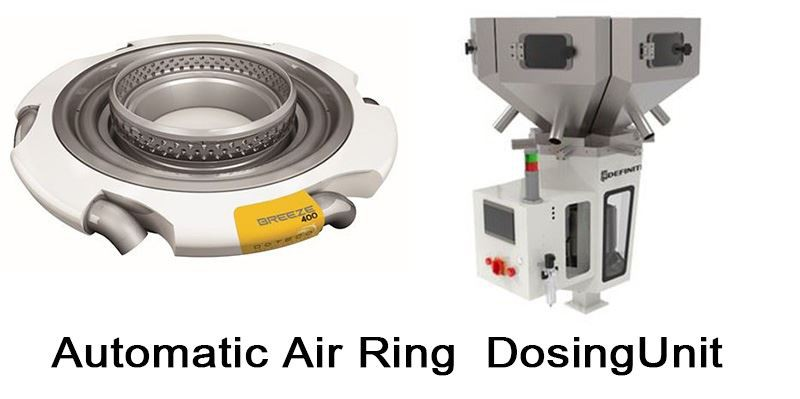

Automatic Air Ring | Imported from Italy | |
Dosing unit | ||
Chiller | 25P | |
IBC system | Germany P+F system | |
EPC system | EPC auto edge position control system | |
Tension control system | Auto | |

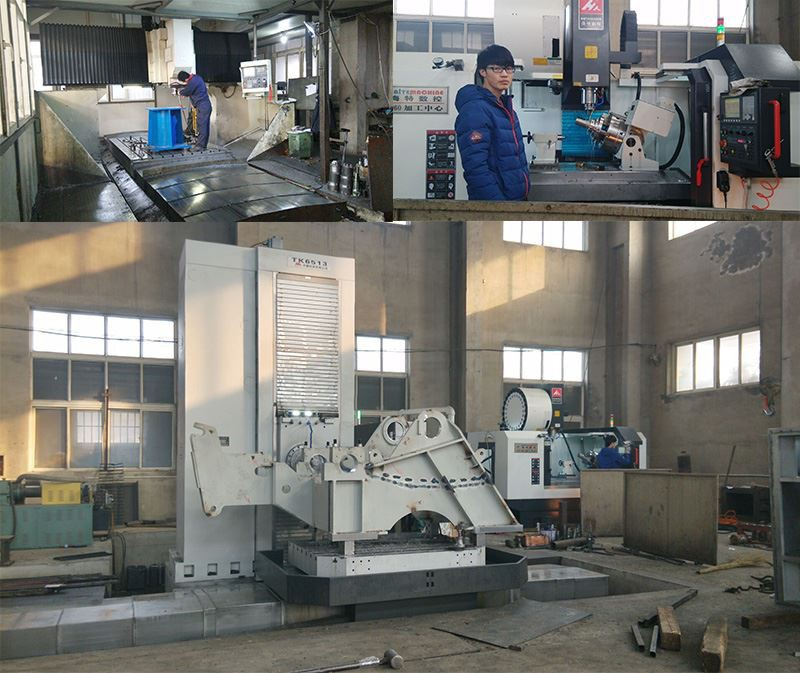

Main machining facilities
Workshop

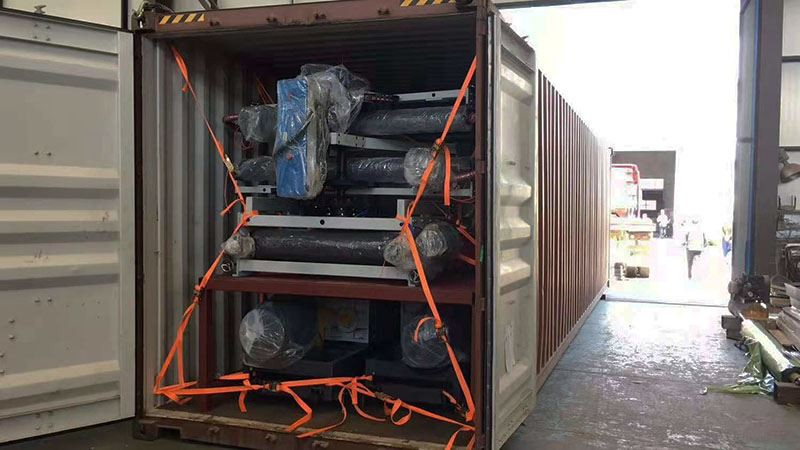

Delivery
