Application of Polymer Adhesive Film Blown Machine This Polymer adhesive film blown machine mainly produce polymer adhesive film and other protective film, and some functional film. The following configuration list is high speed type machine for this film, if you would like to choose standard...
| Quantity: | |
|---|---|
Application of Polymer Adhesive Film Blown Machines
This Polymer adhesive film blown machine mainly produce polymer adhesive film and other protective film, and some functional film.
The following configuration list is high speed type machine for this film, if you would like to choose standard type, please check aother configuration lists.
Parameter of Polymer Adhesive Film Blown Machines
Type of the machine | SJM- Z65×30×2+Z55×30×1-1800mm |
max film width | 1000-1800mm |
thickness of the film | 0.015-0.055mm |
max output | 280kg/h |
Extrusion Unit | |
main motor | 37kw×2+30kw×1 |
screw diameter | Φ65mm×2+Φ55mm×1 |
screw and barrel material | SACM645 (38CrMoA1A) |
screw ratio L/D | 30:1 |
barrel air cooling fans | 0.37kw×4×2+0.24×3×1 |
type of screen changer | Manual arm |
Die Unit | |
type of the diehead | stationary die |
die diameter | Φ450mm |
air blower fan | 7.5kw/11kw |
Haul-Off Unit | |
type of the tower | Oscillating tower |
haul-off roller dia.& width | Φ210×1800mm |
haul-off motor | 1.5kw |
height of the machine | 11.5m |
Winder Unit | |
type of winder | Automatic back to back winder |

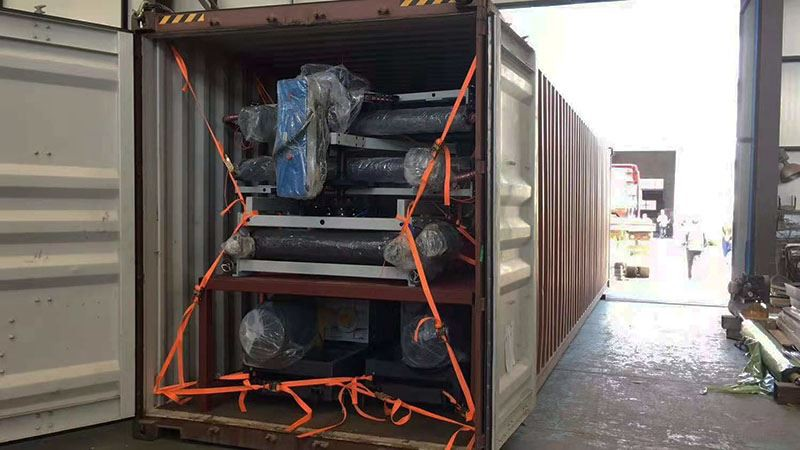

Delivery
