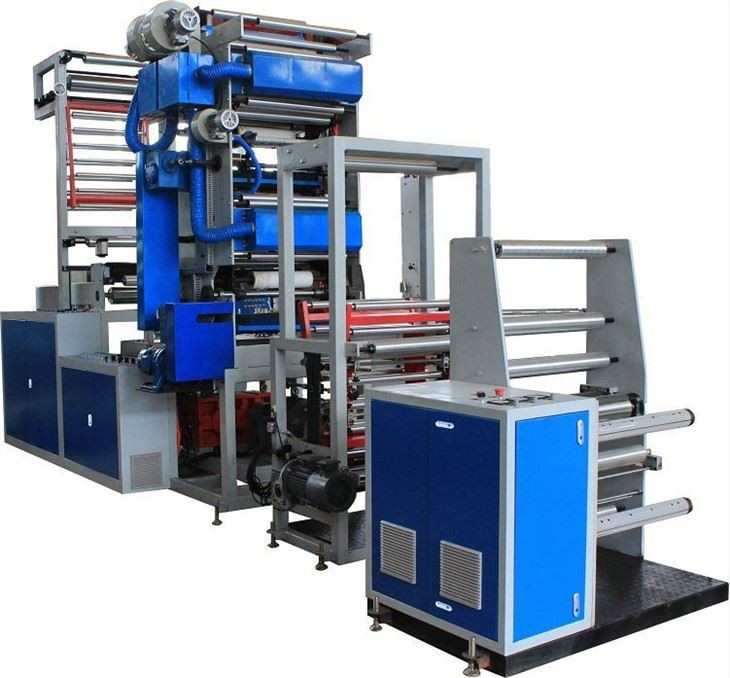

Application of Water Soluble Film Blowing Film Machines
This water soluble film blowing film machine mainly producing the degradable film from PVA and filler,the machine is widely applied to producing the packaging bags for foodstuff,clothing,rubbish bag and vest bags film
Parameter of Water Soluble Film Blowing Film Machines
Type of the machine | SJM-Z75×30-1600mm |
Material | PVA |
max film width | 1300mm |
thickness of the film | 0.015-0.10mm |
max output | 80-100kg/h |
Extrusion Unit | |
main motor | 45 kw |
screw diameter | Φ75mm |
screw and barrel material | SACM645 (38CrMoA1A) |
screw ratio L/D | |
barrel air cooling fans | 0.37kw×5 |
type of screen changer | Manual arm |
Die Unit | |
type of the diehead | Stationary Die |
die diameter | Φ250mm / Φ300mm |
air blower fan | 7.5kw |
Haul-Off Unit | |
type of the tower | Fixed tower |
haul-off roller dia.& width | Φ163×1600mm |
haul-off motor | 1.5kw |
height of the machine | 6m |
Winder Unit | |
type of winder | Center winding |
Delivery
