Application of Plastic Film Extruder Machines This plastic film extruder machine mainly produce lamination film or complex film from LDPE,LLDPE,MLLDPE,HDPE,EVA resin,and used for high-value film This unit equipped with IBC system, automatic air wing, dosing unit,chiller unit,Oscillating...
| Quantity: | |
|---|---|

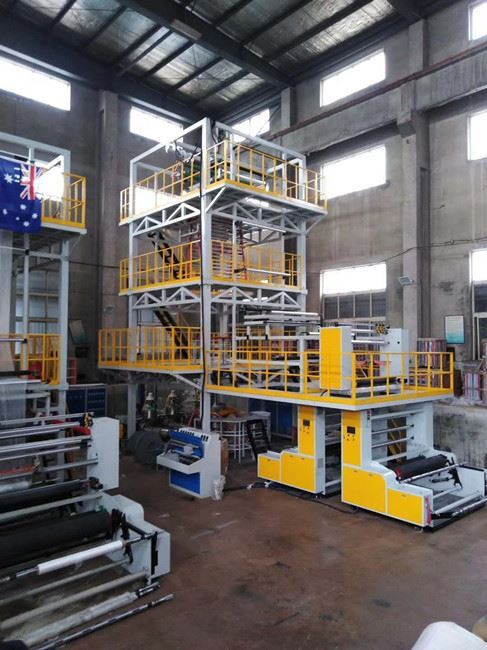

Application of Plastic Film Blowing Machines
This plastic film blowing machine mainly produce complex film with different width and thickness of 0.02-0.15mm from LDPE,LLDPE,MLLDPE,HDPE,EVA resin,and used for high-value film

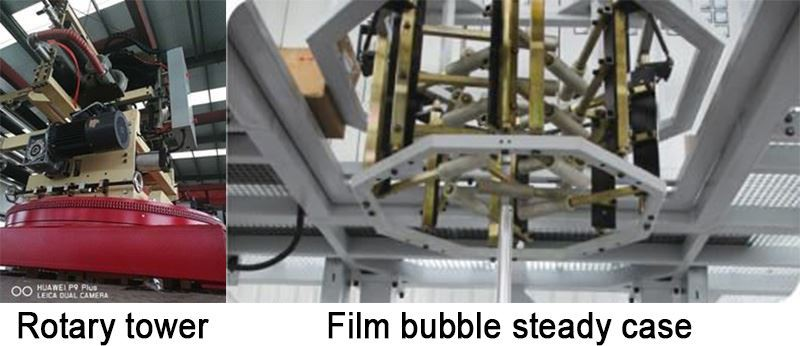

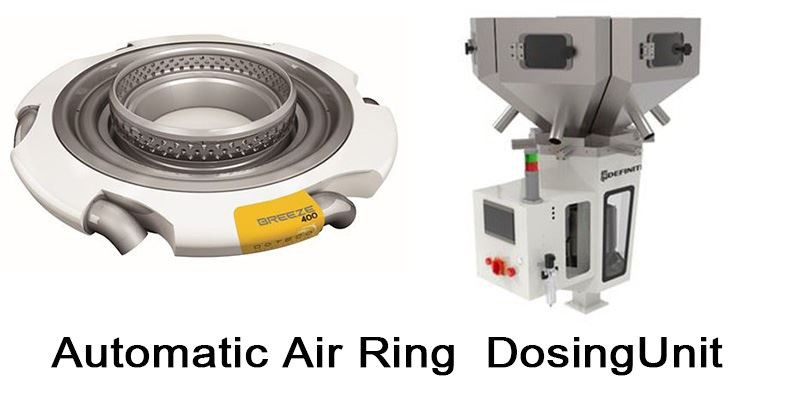

This unit equipped with IBC system, automatic air wing, dosing unit,chiller unit,Oscillating tower,automatic winder,etc, oscillating system,can meet your requirements. it has a excellent transparency and has excellent higher output.
It can be widely used in heavy packaging, such as fruits, meat dishes, pickles, fresh milk, liquid beverages, etc.
Parameter of Plastic Film Blowing Machines
Type of the machine | SJGM-Z55×30×3-1600 |
max film width | 1400mm |
thickness of the film | 0.02mm-0.15mm |
max output | 120kg-150kg/h |
Extrusion Unit | |
main motor | 30kw×3 |
screw diameter | Φ55mm×3 |
screw and barrel material | SACM645 (38CrMoA1A) |
screw ratio L/D | 30:1 |
barrel air cooling fans | 0.24kw×3×3 |
type of screen changer | Non-disassemble manual screen changer |
Die Unit | |
type of the diehead | stationary die |
die diameter | Φ300mm |
air blower fan | 11kw |
Haul-Off Unit | |
type of the tower | Oscillating tower |
haul-off roller dia.& width | Φ210×1600mm |
haul-off motor | 1.5kw |
height of the machine | 9m |

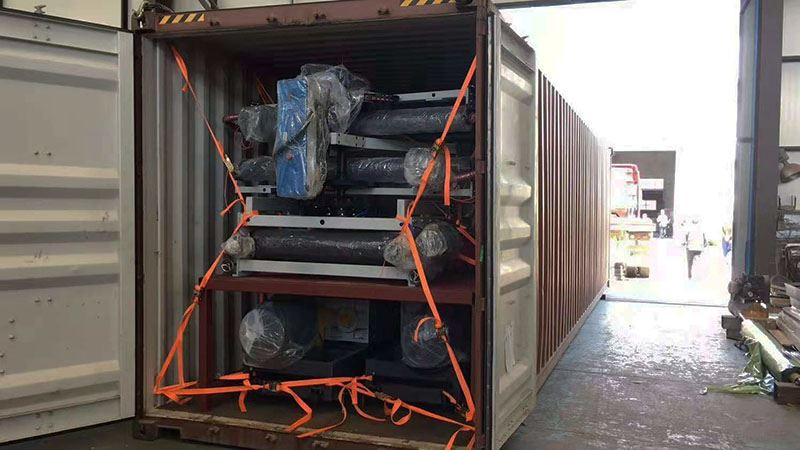

Delivery
Why Choose Us
1.Best component
Almost all components of machine tools come from Germany, Japan, America and well-know China manufacturer.
2.Customers
We have reference customer in over 40 nations, Such as Siemens, ITT, Hanwha, CRRC, Bombardier ....
3.The Steady Technology
What we own is the steady technology to manufacture machine tools, which guarantee steady and have longer work life.
4.Strictly Quality Detection
Our machine tools’quality and accuracy is strictly guaranteed by CMM, Dial indicator etc. and our experienced workers.
5. Our poeple
Our people are professional, kind and hardworking to our customers.
