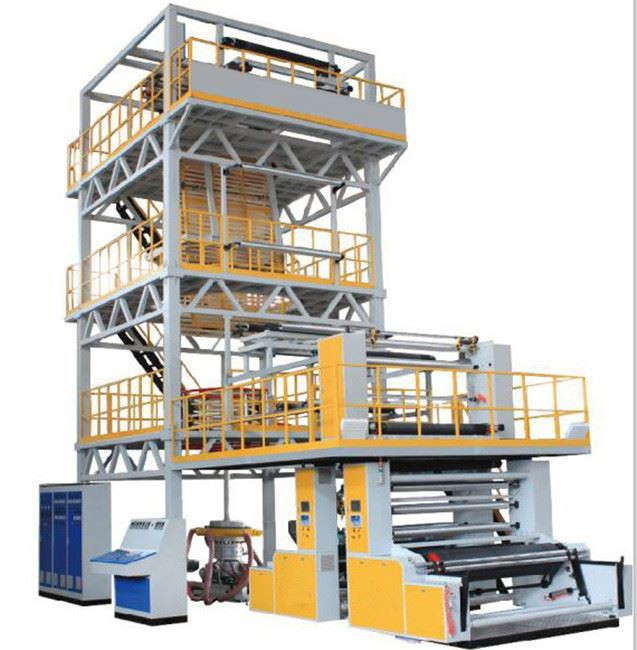

Application of Coextrusion PE Film Machines
This unit mainly producing the film from LDPE,LLDPE,HDPE,MLLDPE,EVA resin with with different width and thickness of 0.02-0.15mm , the film is widely used for packaging the fruit,food,textile,industrial product,etc. Such as the high value-added lamination film,FFS heavy duty bag film, no crystal point self-adhesive protective film,etc.
Features of Coextrusion PE Film Machines
1, this unit adopts the oscillating tower, which completely eliminates the phenomenon of large and small ends of film roll, and the film is more conducive to laminate in high-speed and multi-color overprint;
2, this unit adopts IBC system(inner bubble cooling system), greatly improve the film output and film transparency;
3, this unit adopts automatic winder, it can automatically change the roll, automatically cut the film, automatically load the roll,is intelligent, save time and labor;
4, this unit also can be equipped with automatic air ring,dosing unit,automatic loader,corona,waste film recycle system on line,and so on,according to your needs.
Parameter of Coextrusion PE Film Machines
Type of the machine | SJGM-Z55×30×3-1600 | SJGM-Z55×30×2+65×30×1-1800 | SJGM-Z65×30×2+75×30×1-2200 | SJGM-Z75×30×3-2600 |
max film width | 1400mm | 1600mm | 2000mm | 2400mm |
thickness of the film | 0.02mm-0.15mm | 0.02mm-0.15mm | 0.02mm-0.15mm | 0.02mm-0.15mm |
max output | 120kg-150kg/h | 200kg/h | 300kg/h | 250kg-400kg/h |
Extrusion Unit | ||||
main motor | 30kw×3 | 30kw×2+37kw×1 | 37kw×2+55kw1× | 55kw×3 |
screw diameter | Φ55mm×3 | Φ55mm×2+Φ65mm×1 | Φ65mm×2+Φ75mm×1 | Φ75mm×3 |
screw and barrel material | SACM645(38CrMoA1A) | SACM645(38CrMoA1A) | SACM645(38CrMoA1A) | SACM645(38CrMoA1A) |
screw ratio L/D | 30:1 | 30:1 | 30:1 | 30:1 |
barrel air cooling fans | 0.24kw×3×3 | 0.24kw×3×2+0.37kw×4×1 | 0.37kw×4×2+0.37kw×5×1 | 0.37kw×5×3 |
type of screen changer | Non-disassemble manual screen changer | Non-disassemble manual screen changer | Non-disassemble manual or Hyhraulic screen changer | Non-disassemble manual or Hyhraulic screen changer |
Die Unit | ||||
type of the diehead | stationary die | stationary die | stationary die | stationary die |
die diameter | Φ300mm | Φ400mm | Φ600mm | Φ700mm |
air blower fan | 11kw | 11kw | 15kw | 15kw |
Haul-Off Unit | ||||
type of the tower | Oscillating tower | Oscillating tower | Oscillating tower | Oscillating tower |
haul-off roller dia.& width | Φ210×1600mm | Φ210×1800mm | Φ210×2200mm | Φ210×2600mm |
haul-off motor | 1.5kw | 2.2kw | 2.2kw | 2.2kw |
height of the machine | 9.2m | 10.5m | 12.5m | 12.5m |
Winder Uni | ||||
type of winder | Automatic winder | Automatic winder | Automatic winder | Automatic winder |
winder roller dia.& width | Φ300×1600mm | Φ300×1800mm | Φ300×2200mm | Φ300×2600mm |
winder roller motor | 1.5kw | 2.2kw | 2.2kw | .22kw |
max roll diameter | Φ1000mm | Φ1000mm | Φ1000mm | Φ1000mm |
Other Parts | ||||

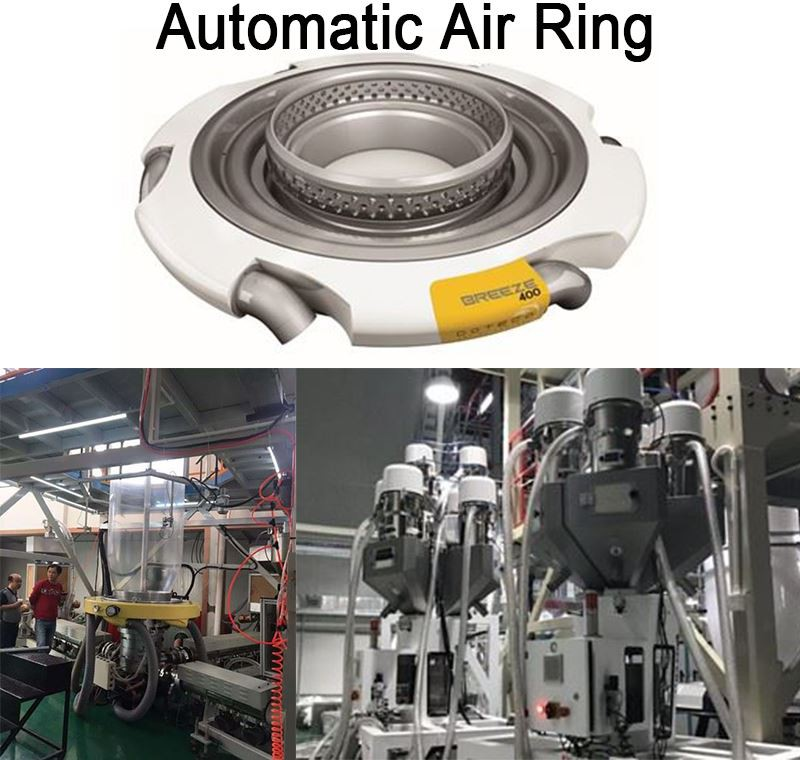

Automatic air ring | Imported from Italy | |||
IBC system | Germany P+F | |||
Dosing unit | Imported from Italy | |||
Chiller | ||||
Waste film recycle system | ||||
EPC system | EPC auto edge position control system | |||
Tension control system | Auto tension control system | |||

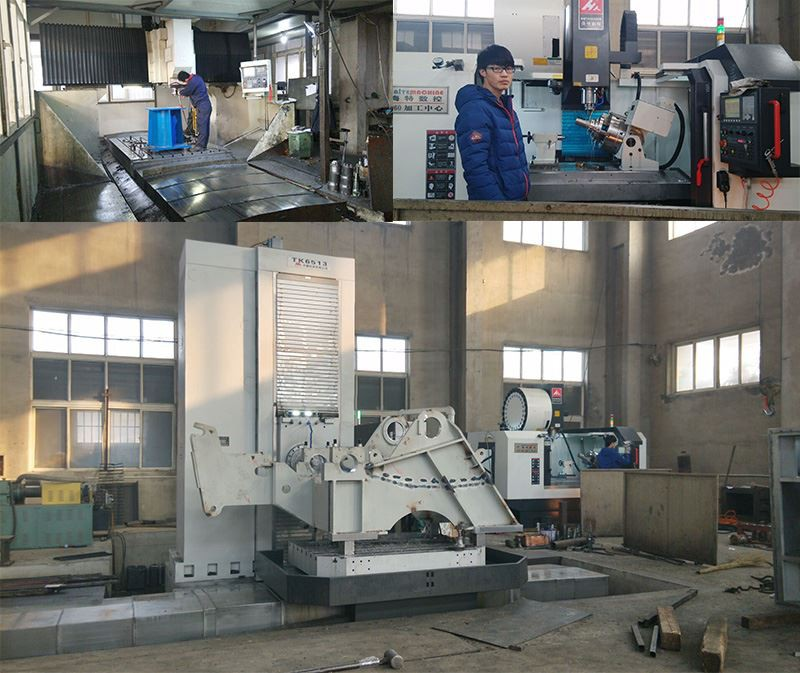

Main machining facilities
Workshop

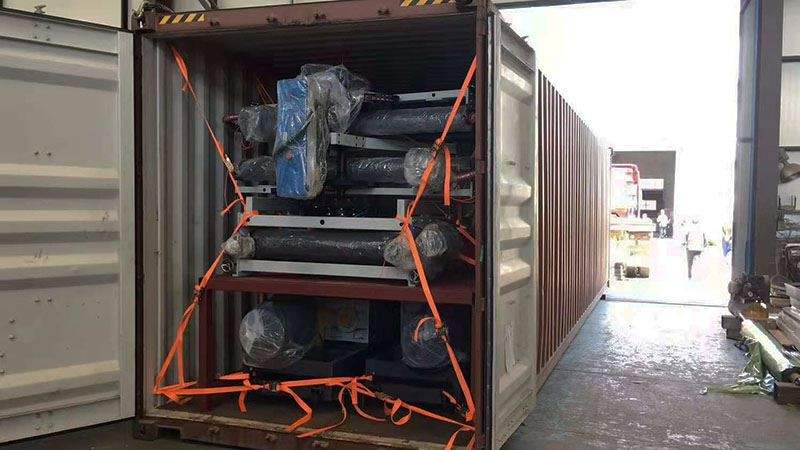

Delivery
