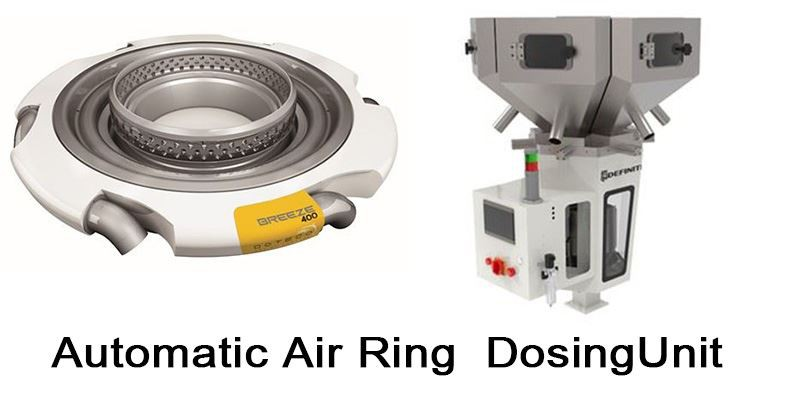

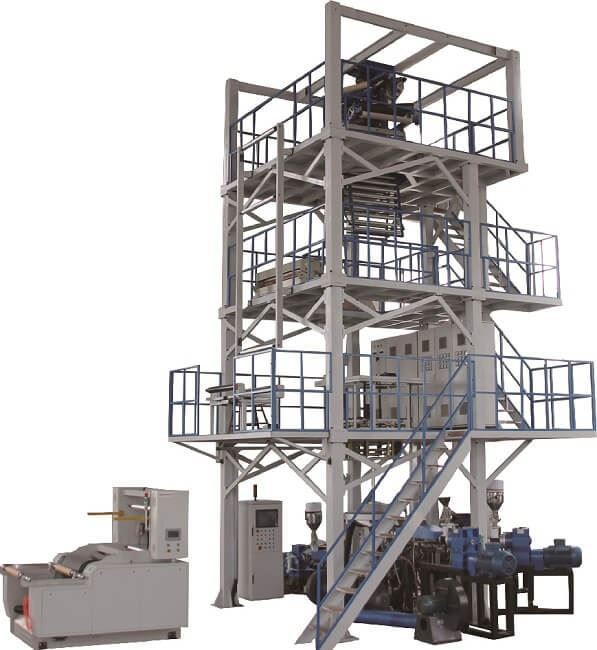

Application of 5 Layer Coextrusion Blown Film Machines This machine are used for producing FFS heavy duty bag film and packaging chemical material film,it is a high performance configuration for this kind of film. The machine is equipped with oscillating tower totary system IBC system,Auto air...
| Quantity: | |
|---|---|
Parameter of Blown Film Machines for Package
Type of the machine | SJGM-Z55×30×5-1100 |
max film width | 650mm |
thickness of the film | 0.1mm-0.2mm |
extrusion output | 70kg/h - 70kg/h - 70kg/h |
Extrusion Unit | |
main motor | 30kw / 30kw / 30kw / 30kw / 30kw |
screw diameter | Φ55mm×5 |
screw and barrel material | SACM645(38CrMoA1A) |
screw ratio L/D | 30:1 |
barrel air cooling fans | 0.24kw×3/0.24kw×3/0.24kw×3/0.24kw×3/0.24kw×3 |
type of screen changer | Non-disassemble manuel screen changer or hydraulic screen changer |
Die Unit | |
type of the diehead | stationary die |
die diameter | Φ200mm |
air blower fan | 4kw |
Haul-Off Unit | |

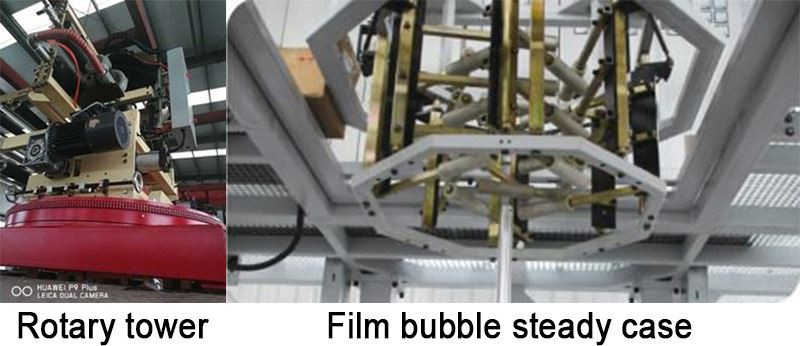

type of the tower | oscillating tower |
haul-off roller dia.& width | Φ210×1100mm |
haul-off motor | 1.5kw |
height of the machine | 14.5m |
Winder Unit | |
type of winder | Auto single winder |
winder roller dia.& width | Φ400×1100mm |
winder roller motor | 1.5kw |
max roll diameter | Φ1500mm |
Service Commitment
Product Quality
All products are guaranteeded for one year, if any problems happen in guarantee period.our company will maintain for free.
Spare Part Replacement
First mold for free,more than 50% discount if more order.
Technical Service
We can provide design, installation and debugging services or remote maintanance teaching.
Delivery The Cargo To Nearest Port
We will arrange the shipment and delivery the cargo to your nearest port,save time and cost.
Detail Product Information
Provide picture,video,instruction and product brochure.
24 hours hot line ,we will reply email within 12 hours.
Main parts from world well known manufacture.
They are made in Italy

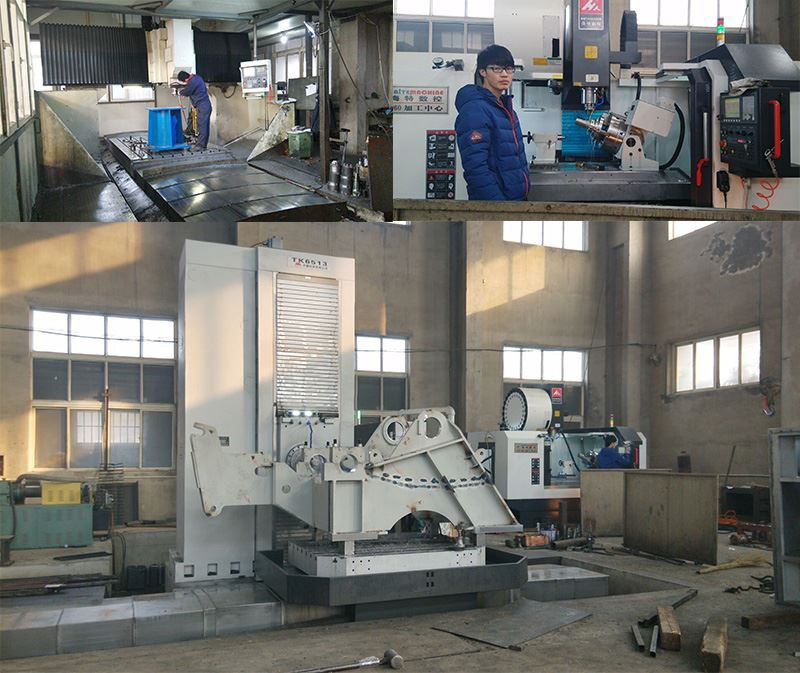

Main machining facilities

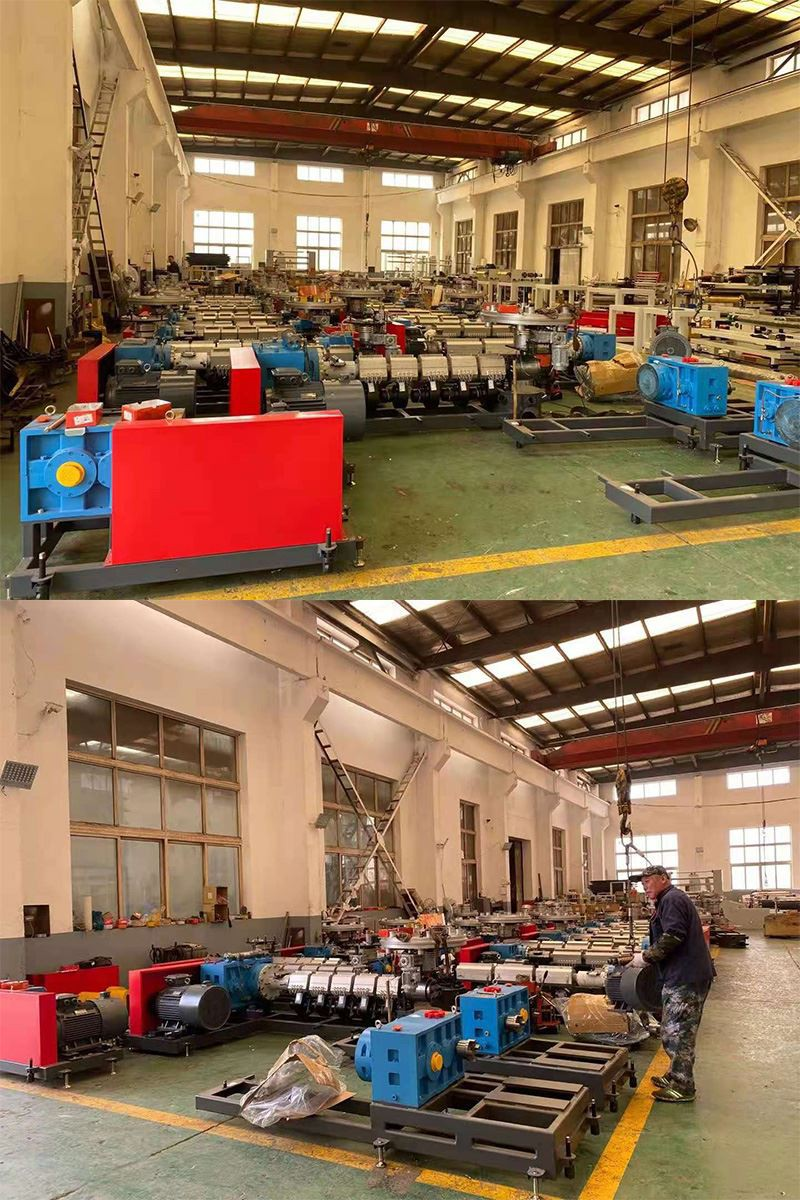

Workshop

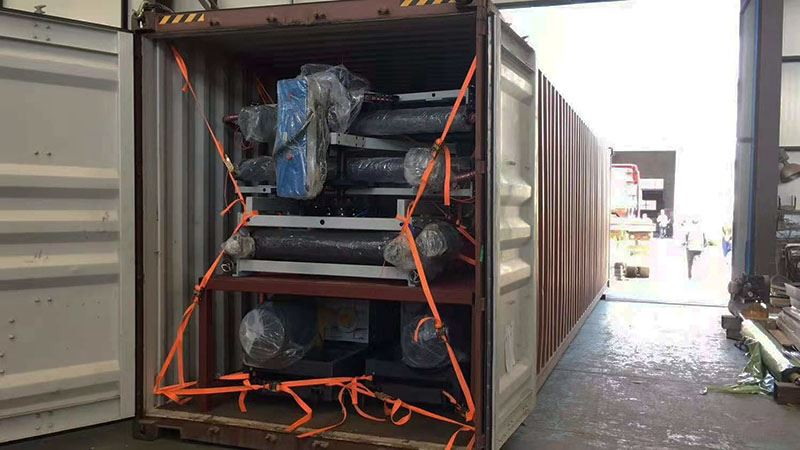

Delivery
