Application of Biodegradable Plastic Film Blowing Machines This biodegradable film blowing machines mainly producing the degradable film from PLA,PBAT,PHA,PSM and filler, the machine is widely applied to producing the packaging bags for foodstuff, clothing,rubbish bag and vest bags,agriculture...
| Quantity: | |
|---|---|
Application of Blown Film Extruder
This fully automatic plastic bag making machine mainly producing the degradable film from PLA,PBAT ,PHA,PSM and filler, the machine is widely applied to producing the packaging bags for foodstuff, clothing,rubbish bag and vest bags, express bag film,mulch film and agriculture film, etc.
Feature of Blown Film Extruder
1. Safety first, quality first .
2. Strict and advanced workshop management system .
3. The human production, people-oriented .
4. High quality products to provide high quality environment
5. Warranty period is 14 month from date of B/L
Use:
PE Film Blowing Machine is used for plastic film blowing, like low density polyethylene(LDPE), high density polyethylene(HDPE), linear low density polyethylene(LLDPE). It is widely used for producing the packing bags for foodstuff, clothing, rubbish bag,vest bags and etc.
Parameter of Blown Film Extruder
Type of the machine | SJM-Z45×32-650 | SJM-Z50×32-850 | SJM-Z55×32-850 | SJM-Z65×32-1600 |
max film width | 500mm | 600mm | 600mm | 1300mm |
thickness of the film | 0.015-0.10mm | 0.015-0.10mm | 0.015-0.10mm | 0.015-0.10mm |
max output | 25kg-40kg/h | 35kg-50kg/h | 40kg-60kg/h | 90kg/h |
Extrusion Unit | ||||
main motor | 15kw | 18.5kw | 22kw | 37kw |
screw diameter | Φ45mm | Φ50mm | Φ55mm | Φ65mm |
screw and barrel material | SACM645(38CrMoA1A) | SACM645(38CrMoA1A) | SACM645(38CrMoA1A) | SACM645(38CrMoA1A) |
screw ratio L/D | 32:1 | 32:1 | 32:1 | 32:1 |
barrel air cooling fans | 0.24kw×5 | 0.24kw×5 | 0.24kw×5 | 0.24kw×5 |
type of screen changer | manuel arm | manuel arm | manuel arm | manuel arm |
Die Unit | ||||
type of the diehead | stationary die or rotary die | stationary die or rotary die | stationary die or rotary die | stationary die or rotary die |
die diameter | Φ80mm Φ120mm | Φ120mm Φ140mm | Φ120mm Φ140mm | Φ250mm |
air blower fan | 4kw | 4kw | 4kw | 7.5kw |
Haul-Off Unit | ||||
type of the tower | Fixed tower | Fixed tower | Fixed tower | Fixed tower |
haul-off roller dia.& width | Φ163×650mm | Φ163×850mm | Φ163×850mm | Φ163×1600mm |
haul-off motor | 1.5kw | 1.5kw | 1.5kw | 1.5kw |
height of the machine | 5m | 5m | 5m | 6m |
Winder Unit | ||||
type of winder | Manuel or Auto | Manuel or Auto | Manuel or Auto | Manuel or Auto |
winder roller dia.& width | Φ300×650mm | Φ300×850mm | Φ300×850mm | Φ300×1600mm |
winder roller motor | 1.5kw | 1.5kw | 1.5kw | 1.5kw |
max roll diameter | Φ1000mm | Φ1000mm | Φ1000mm | Φ1000mm |
Other Parts | ||||
Gusset device | ||||
Corona | ||||
Eight-Fold device | ||||
Printing machine | ||||
1. Machine characteristics and performance
A, Main motor and take-up motor are controlled by frequency inverter adjust
B, Material of screw and barrel: 38CrMoAlA Polished with Nitride Treatment
C. Hardness of heat treatment: screw HV≥740, barrel HV≥900
Hardening depth: : 0.6-0.7mm:
Brittleness grade: ≤2 grade≤2 grade
D. Gearbox: 200 involute cylindrical helical gears, alloy cast steel. Brand: (hangzhou, Hangzhou Xiaoshan Shuguang)
E. Die material: 45#/ high carbon steel
F. Dual digital display automatic temperature control meter temperature control
Screw barrel: Brand: ( Zhoushan)
2. Extrusion part:
Material: LDPE, LLDPE, HDPE.
Film max folding width: 600mm
Main Engine power: 22kw
Inverter: Brand: (Nengshi, Guangdong Kewo)
Breaker : Zhengtai ,made in china
Power: 380V, 3Phase, 50HZ
Head Rotating model: continuous rotation (optional)
Dia head : 50mm
Diameter gap : 2mm
Dia head spec: :60mm 100mm
Screw ratio L/D : 28:1
Screw Speed : 10-100rpm
Film thickness : 0.01-0.10mm
Main Output : 25-35kg/h
Outer size (L*W*H) M: 4.5*1.8*3.5M
SCREEN: Manual Screen Change (1 set) 170mm
3: Barrel Heating: three-zone Heating Power About 16kw (double digital display automatic temperature control meter temperature control)
Head heating: Power about 3.5 kw, thermocouple and digital temperature control meter, stainless steel heater
4: Winding device
Length of rewinding rod: 700mm
Effective film width: 600mm
Motor of Rewinding (KW): 1.5 KW
Speed of Rewinding (M/minute): 0-60
AIR compressor : 1pcs
Rotate wind ring : 1set
Fan : 1.1KW
Traction Roll tensioning: Manual adjustment
Structure Type of Foam stabilizer: Squirrel cage type
HERRINGBONE SPLINT: Manual adjustment
5. Double take-up device: fully automatic roll changing and single take-up (optional)
Roll length (mm):700
Effective film width: (mm): 600
Rewinding Motor: adjustable speed
Rewind speed (M/min): Max 60
Take-up with paper Tube
Winding Mode: rotating single winding, with friction tension control
6. Parts List
Heating ring: 4Pcs
Temperature Controller: 4pcs
Voltmeter: 4pcs
Thermocouple: 4pcs
Filter: 4 meter
Tools: 1set
Operation Manual: 1pcs

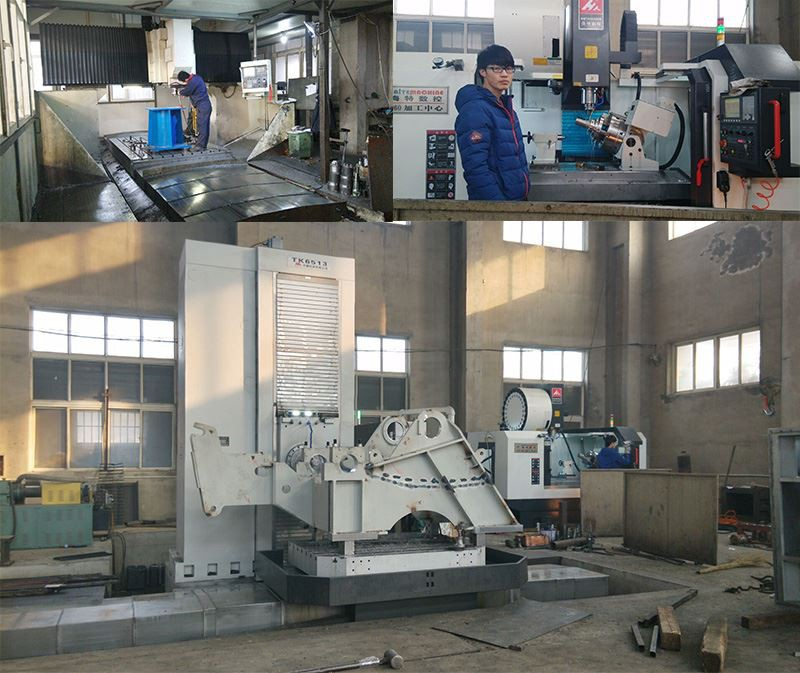

Main machining facilities

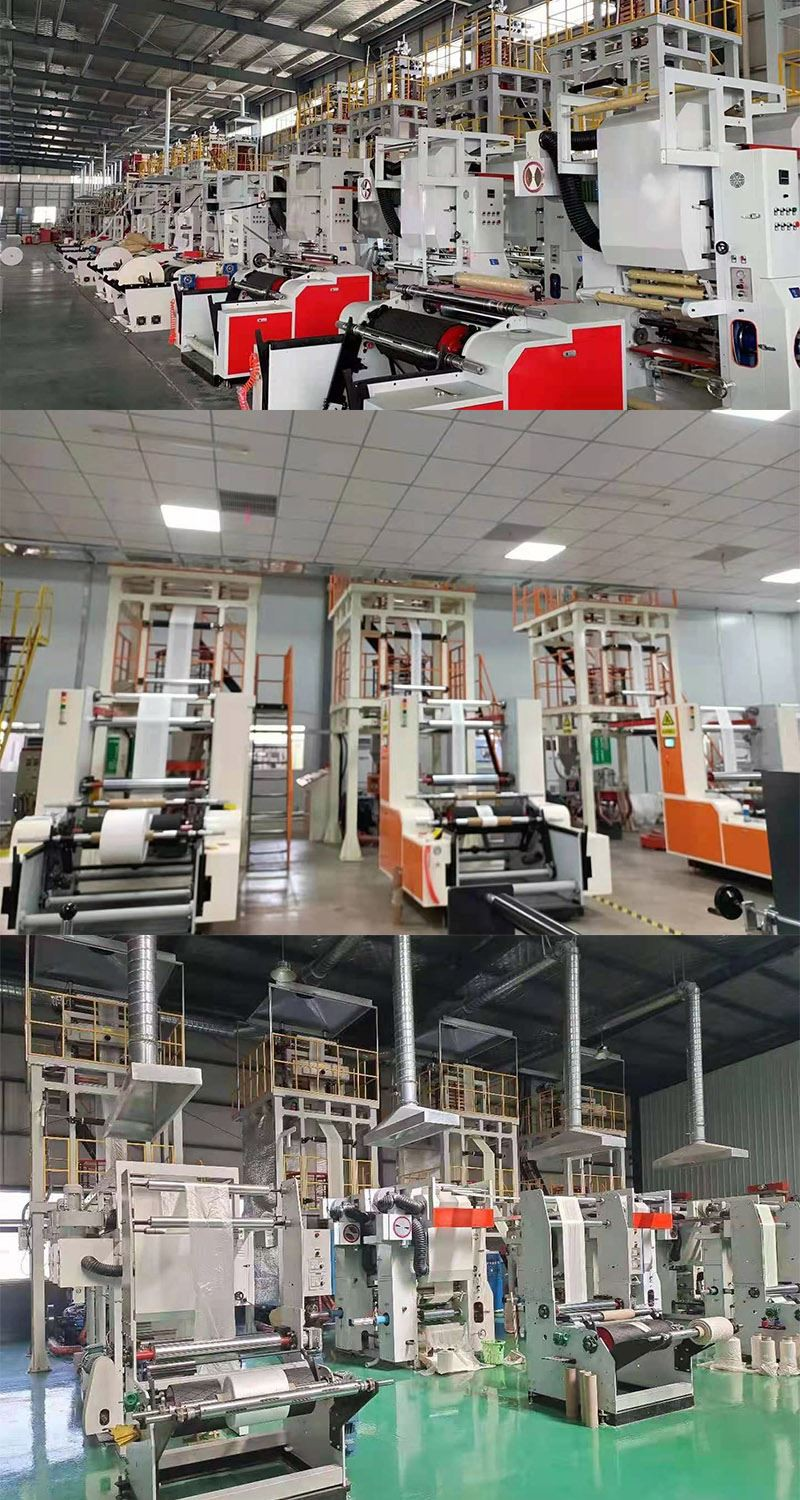

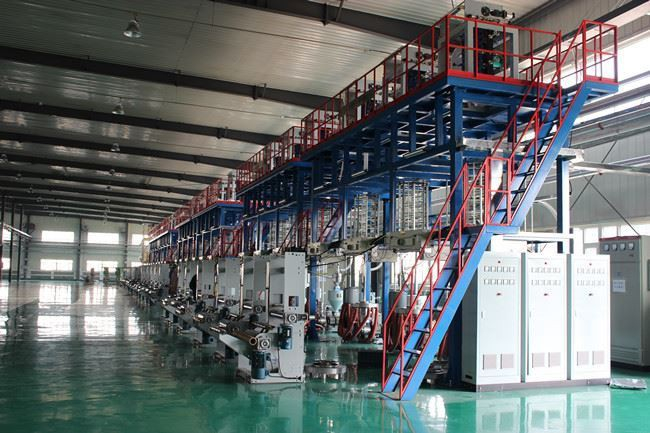

Workshop

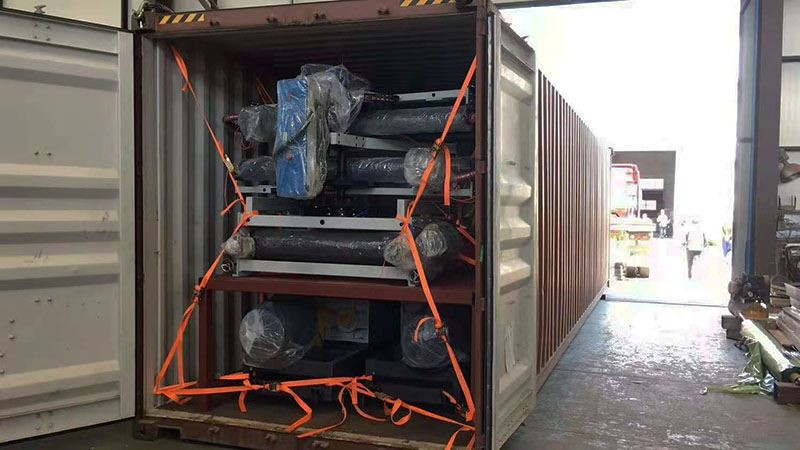

Delivery
