This unit mainly producing the film from LDPE,LLDPE,HDPE,MLLDPE,EVA resin with with different width and thickness of 0.02-0.15mm , the film is widely used for packaging the fruit,food,textile,industrial product,etc. Such as the high value-added lamination film,FFS heavy duty bag film, no crystal point self-adhesive protective film,etc.
| Quantity: | |
|---|---|

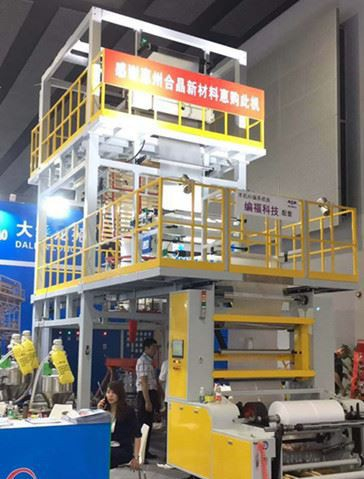

Introduction of Low Pressure Film Blowing Machines
Cylinder and screw rods are made of quality alloy steel that have been notarized and processed
in a precision way. Hence it is hard, durable in corrosion resistance. The specially-designed screw is quality in plasticizing, which helps increase the production capacity. It is applied to blowing the plastic films like low density polygene (LDPE), high density polygene(HDPE) and linear low density polygene (LLDPE).
It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones.
Machine Advantages
1, We use stronger steel plate for machine body, which make machine more stable
2, Screw and barrel is nitrigened by 72 hours. 38 chromium materials, it is very hard.
3, Hard surface gearbox, the life can be more 5 years.
4, Motor with CE standard, more 10 years life
5, Electric parts is CHINT, best supplier in China.
6, Easy to operate and one worker can run 3 sets

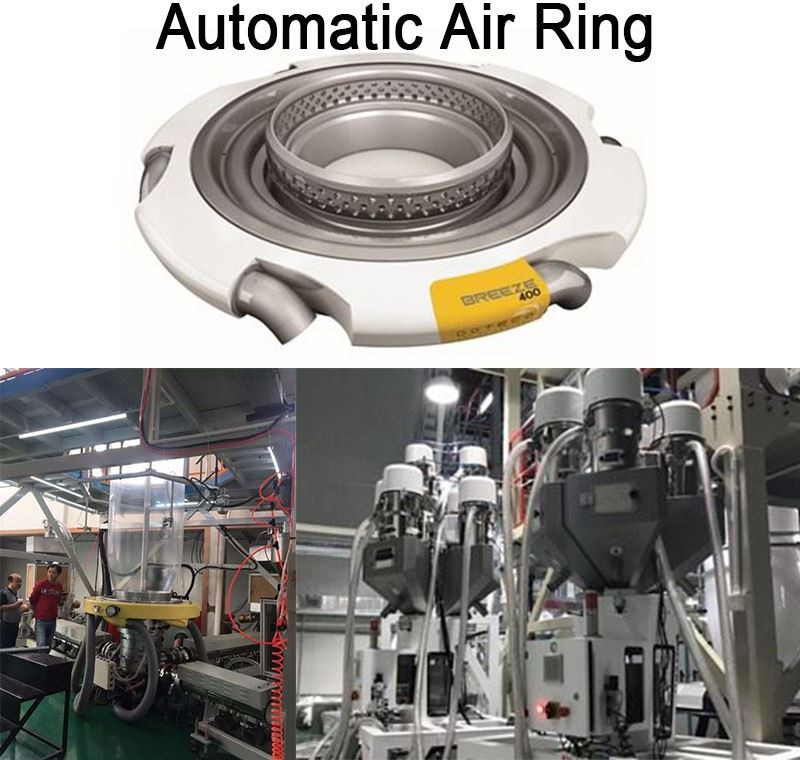

7. Key parts such as Automatic air ring, Dosing unit made in Italy, IBC system made in Germany.
Parameter of Low Pressure Film Blowing Machines
Type of the machine | SJGM-Z55×30×3-1600 | SJGM-Z55×30×2+65×30×1-1800 | SJGM-Z65×30×2+75×30×1-2200 | SJGM-Z75×30×3-2600 |
max film width | 1400mm | 1600mm | 2000mm | 2400mm |
thickness of the film | 0.02mm-0.15mm | 0.02mm-0.15mm | 0.02mm-0.15mm | 0.02mm-0.15mm |
max output | 120kg-150kg/h | 200kg/h | 300kg/h | 250kg-400kg/h |
Extrusion Unit | ||||
main motor | 30kw×3 | 30kw×2+37kw×1 | 37kw×2+55kw1× | 55kw×3 |
screw diameter | Φ55mm×3 | Φ55mm×2+Φ65mm×1 | Φ65mm×2+Φ75mm×1 | Φ75mm×3 |
screw and barrel material | SACM645(38CrMoA1A) | SACM645(38CrMoA1A) | SACM645(38CrMoA1A) | SACM645(38CrMoA1A) |
screw ratio L/D | 30:1 | 30:1 | 30:1 | 30:1 |
barrel air cooling fans | 0.24kw×3×3 | 0.24kw×3×2+0.37kw×4×1 | 0.37kw×4×2+0.37kw×5×1 | 0.37kw×5×3 |
type of screen changer | Non-disassemble manual screen changer | Non-disassemble manual screen changer | Non-disassemble manual or Hyhraulic screen changer | Non-disassemble manual or Hyhraulic screen changer |
Die Unit | ||||
type of the diehead | stationary die | stationary die | stationary die | stationary die |
die diameter | Φ300mm | Φ400mm | Φ600mm | Φ700mm |
air blower fan | 11kw | 11kw | 15kw | 15kw |
Haul-Off Unit | ||||
type of the tower | Oscillating tower | Oscillating tower | Oscillating tower | Oscillating tower |
haul-off roller dia.& width | Φ210×1600mm | Φ210×1800mm | Φ210×2200mm | Φ210×2600mm |
haul-off motor | 1.5kw | 2.2kw | 2.2kw | 2.2kw |
height of the machine | 9.2m | 10.5m | 12.5m | 12.5m |
Winder Uni | ||||
type of winder | Automatic winder | Automatic winder | Automatic winder | Automatic winder |
winder roller dia.& width | Φ300×1600mm | Φ300×1800mm | Φ300×2200mm | Φ300×2600mm |
winder roller motor | 1.5kw | 2.2kw | 2.2kw | .22kw |
max roll diameter | Φ1000mm | Φ1000mm | Φ1000mm | Φ1000mm |
Other Parts | ||||
EPC system | EPC auto edge position control system | |||
Tension control system | Auto tension control system | |||

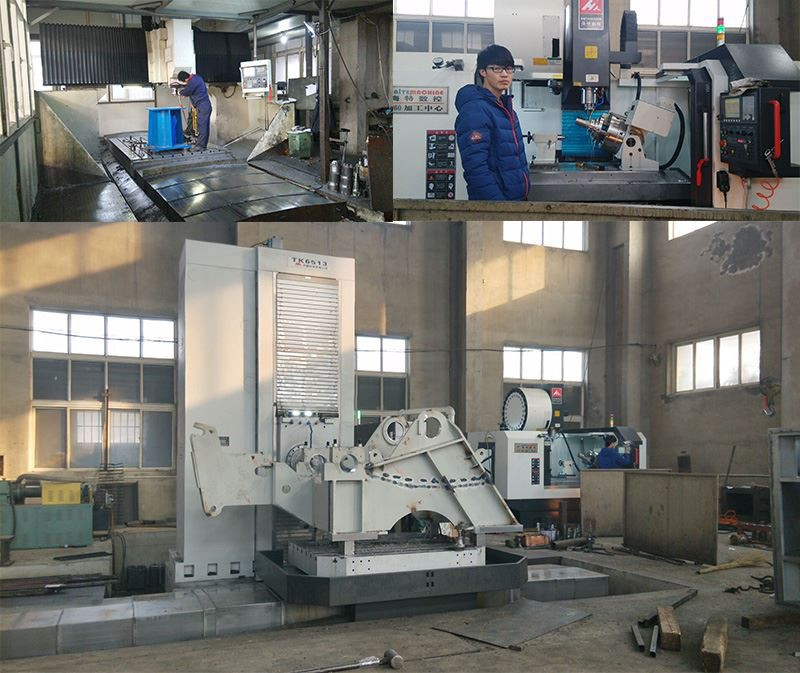

Main machining facilities
Workshop

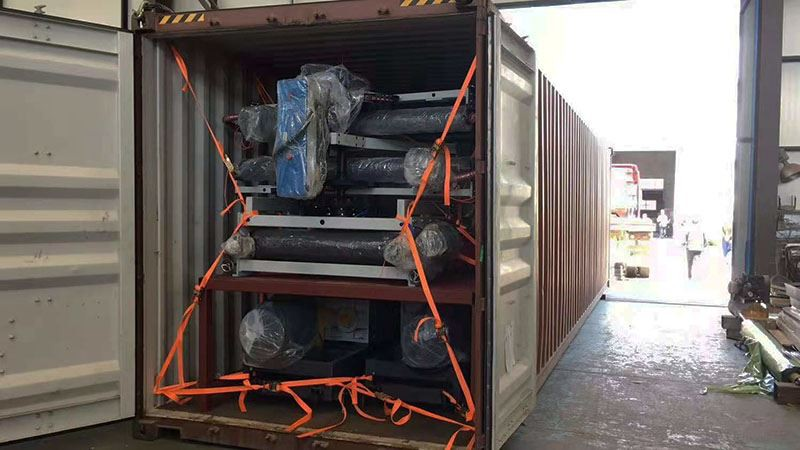

Delivery
