Feature of CNC Double Column Vertical Lathe
1. Gear Box
Gear made of 40 Cr through High-frequency Quenching treatment, the Hardness reaches HRC40-45，gear grinder，Precision can reach level 6.Thereby reduce the vibration and noise of Vertical lathes, improved efficiency and reliability.
2. Gantry frame
The CNC Vertical Double Column Vertical Lathe gantry is composed of left and right columns and beams. The cross beam is located on the upper part of the gantry. In order to be suitable for strong cutting, the cross beam guide adopts high hardness and hardened hard guide, which can maintain the precision of the guide for a long time under rough machining heavy duty cutting) conditions.
3. Cross beam
The contact surface of the beam and the column guideway is glued with PTFE wear-resistant guideway soft belt, which has a small friction coefficient, which greatly extends the service life of the CNC Vertical Double Column Vertical Lathe.
4. Working table
In order to reduce the influence of thermal deformation of the worktable and the worktable base on the machining accuracy, the worktable and the worktable base are made of high-strength cast iron, and the gear ring is made of cast steel and quenched and tempered.
5. Vertical Tool Post
The vertical feed of the right tool post is controlled by the numerical control system and driven by a high-precision servo. The planetary reducer drives the large-diameter ball screw to rotate to drive the ram to move vertically.
6. Hydraulic system:
The hydraulic system includes: hydraulic station hydraulic system, worktable static pressure system, main drive transmission system, beam clamping hydraulic system, vertical tool rest ram hydraulic balance system.
7. The electrical components are marked with clear and durable writing.
The wiring of the whole machine is neat, the wire number is complete, and the writing is clear and durable.
8. Electric parts: Schneider, SIEMENS, FANUC...
Products Specification of CNC Double Column Vertical Lathe
The vertical lathe can be equipped with C axis
Item | Unit | CK5225 | CK5235 | CK5240 | CK5250 | CK5263 | CK5280 | CK52100 | CK52125 | CA52160 |
Max. Turning diameter | mm | 2500 | 3500 | 4000 | 5000 | 6300 | 8000 | 10000 | 12500 | 16000 |
Max. Workpiece height | mm | 1600/2000 /2200 | 1600/2000/ 2200 | 1600/2000/ 2200 | 4000 | 4000 | 4000 | 4000 | 5500 | 10000 |
Worktable diameter | mm | 2250 | 2850 | 3150 | 4500 | 5700 | 7100 | 7500 | 7500 | 5500 /6000/7000 |
Max. Worktable weight | t | 10/16 | 10/16/20/32 | 10/16/32 /40/50/63 | 32/40/50 /63150 | 63/80 /100/150 | 100/125/150 | 150/250 | 250 | 400 |
Worktable rotation step | stepless | stepless | stepless | stepless | stepless | stepless | stepless | stepless | stepless | |
Worktable rotation speed | r/min | 2~63 | 2~63 | 2~63 | 0.32~32 | 0.32~32 | 0.32~32 | 0.2~20 | 0.16～16 | 0.1-10 |
Max. Worktable torque | KN·m | 63 | 63 | 63 | 150 | 150 | 150 | 640 | 640 | 1000 |
Max. Turning Torque of Tool post | KN | 53 | 53 | 53 | 63 | 63 | 63 | 125 | - | |
Right tool feeding range | mm/min | 0.25~90 | 0.25~90 | 0.25~90 | 0.10~500 | 0.10~500 | 0.10~500 | - | 0.10~500 | - |
Right tool post rapid movement | mm/min | 1550 | 1550 | 1550 | 4000 | 4000 | 4000 | 4000 | 4000 | - |
Left tool post rapid movement | mm/min | 5000 | 5000 | 5000 | 4000 | 4000 | 4000 | 4000 | 4000 | - |
Left tool post feeding range | mm/min | 1-2000 | 1-2000 | 1-2000 | 0.10~500 | 0.10~500 | 0.10~500 | - | 0.10~1000 | - |
Swing angle of tool post | ±30º | ±30º | ±30º | - | - | - | - | - | - | |
Tool section | mm | 40×50 | 40×50 | 40×50 | 280x280 | 280x280 | 280x280 | 80x80 | 100x100（Max） | - |
Ram section | mm | - | - | - | - | - | - | 320x320 | 400x400 | 400/500 |
Beam travel | mm | 1250/1650/1850 | 1250/1650/1850/2150/2800 | 1250/1650/1850/2150/2800/3500 | 2150/2800/3000/4500 | 3000/3500/4500 | 3000/3500/4500/5000 | 3250/3750/4500/5000 | 4000/4500/5000 | 4000/5000/5500 |
Beam lifting speed | mm/min | 350 | 350 | 350 | 410 | 410 | 410 | 300 | 300 | |
Main motor power | kW | 55 | 55 | 55 | 75/90 | 90 | 90/132 | 132 | 132 | 160 |
Weight | t | 41 | 45 | 47 | 200 | 215 | - | - | 465 |
Production details of CNC Double Column Vertical Lathe
The key parts which is used for 20 years, they match very well.
Ballscrew is strengthen and steady working.
Guideway is very strenthen and straight.
Adavantage:
1. Our company adopts the international advanced resin sand casting process. The castings are made of HT300 and HT250 and then tempered twice. The castings are tempered once before processing. The castings are subjected to secondary tempering after rough machining. The tempering is tempered to the greatest extent in the tempering kiln. Reduce the internal stress of the casting, and perform vibration aging before finishing to prevent the casting from deforming, thereby improving the accuracy of the machine tool.
2. FANUC and Siemens system, it make process workpiece easily and precisely.
3. Much strenghen structure which will guarantee working steadily for a long run.
4. Whole production supervision will guarantee no defects of production.
5. Serious installation service, training, and free consultant in whole work life.

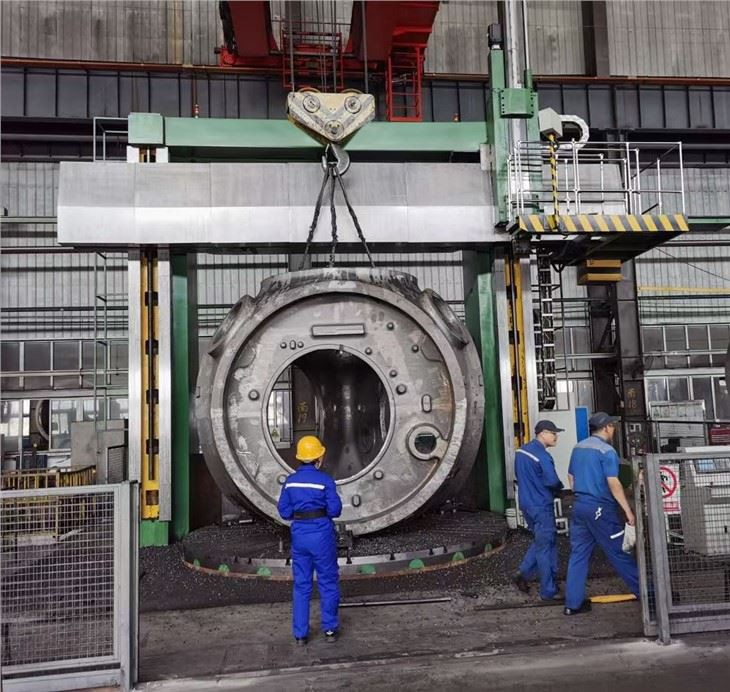

Customers

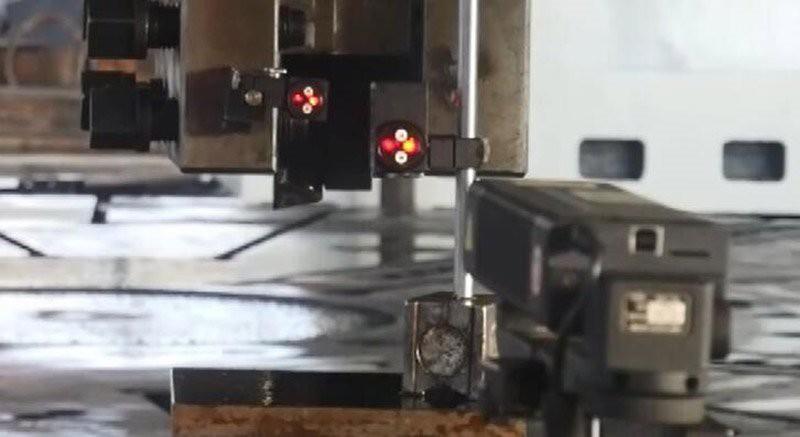

Serious and professional testing
Customer

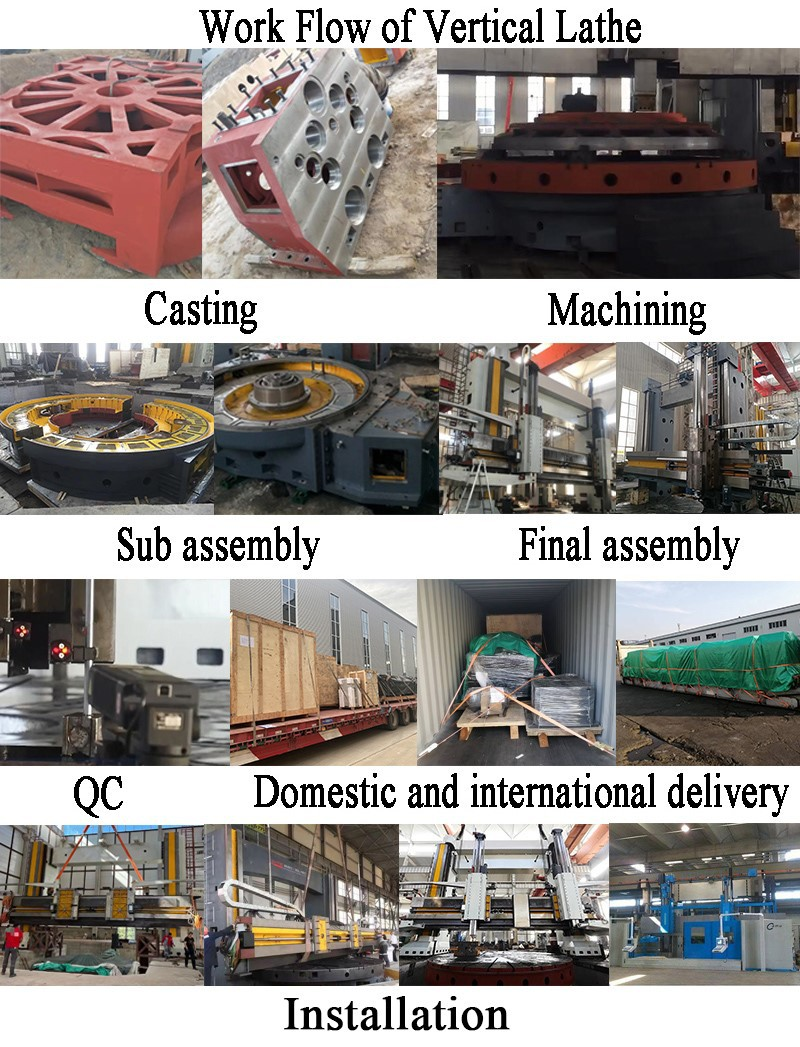

Work flow

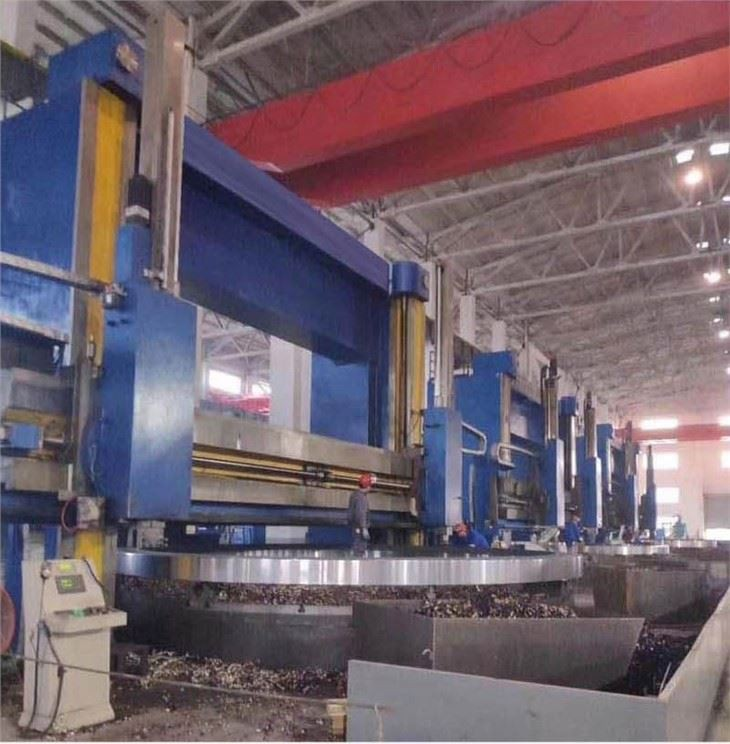

Customers

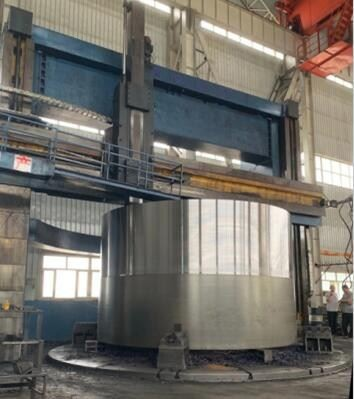

Various size can be provided to meet various size of workpiece
Aftersales: Every parts of the vertical lathe with one year guarantee, within one year, we will change parts if every parts defects because the quality problem.
We will assign professional engineer to be your place for installation, English interpreter service is free
The installation period of time is 10 days, testing more on your parts during stay in your factory.
Call me and email me anytime after we leaving from your factory, we will do our best to help you to solve problems.
