The CNC vertical lathe GCV series machine tool is a large-scale moving beam and fixed beam CNC vertical lathe developed by our company by introducing all the technology of Japan. In order to ensure the smooth progress of the technology introduction of GCV series products, our company has long-term hired Japanese technical experts from Honma to provide technical guidance in our company. This series of machine tool numerical control system, main electrical parts, main bearings, ball screws, main hydraulic parts and other key supporting parts are selected from domestic and foreign famous brand manufacturers, the introduction of mature technology, the selection of imported supporting parts, and the advanced equipment of key parts Processing, advanced detection methods, fully consider the processing requirements of adapting to heavy cutting and high productivity, to ensure that the machine tool has high processing accuracy, rigidity and reliability, and has the characteristics of reasonable layout, convenient operation, and high degree of automation.
| Quantity: | |
|---|---|

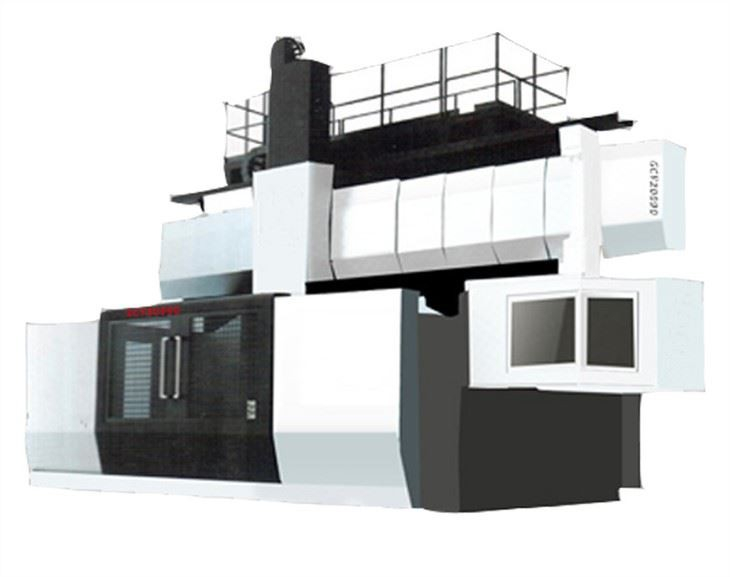

Introduction of High Speed CNC Vertical Lathes
1. The High Speed CNC Vertical Lathes GCV series machine tool is a large-scale moving beam and fixed beam CNC vertical lathe developed by our company by introducing all the technology of Japan. In order to ensure the smooth progress of the technology introduction of GCV series products, our company has long-term hired Japanese technical experts from Honma to provide technical guidance in our company.
2. This series of machine tool numerical control system, main electrical parts, main bearings, ball screws, main hydraulic parts and other key supporting parts are selected from domestic and foreign famous brand manufacturers, the introduction of mature technology, the selection of imported supporting parts, and the advanced equipment of key parts Processing, advanced detection methods, fully consider the processing requirements of adapting to heavy cutting and high productivity, to ensure that the machine tool has high processing accuracy, rigidity and reliability, and has the characteristics of reasonable layout, convenient operation, and high degree of automation.
Advantage:
Our company adopts the international advanced resin sand casting process. The castings are made of HT300 and HT250 and then tempered twice. The castings are tempered once before processing. The castings are subjected to secondary tempering after rough machining. The tempering is tempered to the greatest extent in the tempering kiln. Reduce the internal stress of the casting, and perform vibration aging before finishing to prevent the casting from deforming, thereby improving the accuracy of the machine tool.
Parameter of High Speed CNC Vertical Lathes
Including turning and grinding function
Item | Unit | GCV25060fdm | GCV35060fdm | GCV40060fdm |
Worktable diameter | mm | 1250(1400) | 1600(1800) | 200(2250) |
Max. Swing diameter | mm | 1600 | 2000 | 2500 |
Max. Turning diameter | mm | 1600 | 2000 | 2500 |
Max. Workpiece height | mm | 1200(1500) | 1600(1800) | 2000 |
Max. Loading weight | t | 6 | 8 | 10 |
Max. Torque | Nm | 13700 | 24000 | 25027 |
Ram Vertical Travel | mm | 900 | 900 | 1100 |
Ram Horizontal Travel | mm | -100 - +1600 | -150 - +2050 | -100 - +2800 |
Ram Section | mm | 200*200 | 200*200 | 240*240 |
Tool Section | mm | 40*40(32*32) | 40*40(32*32) | 40*40(32*32) |
Magazine tool | station | 12 | 12 | 12 |
Max. Tool weight | kg | 45 | 45 | 50 |
Turning feeding speed | mm/s | 0.01-50 | 0.01-50 | 0.01-40 |
Rapid feeding | m/min | 8 | 8 | 8 |
Worktable rotation speed | r/min | 1-280/1-312 | 1-170/1-254 | 1-120/1-180 |
Worktable gear | 2 gear | 2 gear | 2 gear | |
Lifting gear | 250*2 two gears 250*4 two gears | 250*4 four gears 250*6 six gears | 250*4two gears | |
Main motor power | kw | AC39/58(con./30min) | AC60/84(con./30min) | AC60/84(con./30min) |
Horizontal motor power | kw | 5.23 | 5.23 | 5.23 |
Vertical motor power | kw | 5.23 | 5.23 | 5.23 |
Workpiece precision | IT6 | IT6 | IT6 | |
Worpiece surface precision | μm | Ra1.6 | Ra1.6 | Ra1.6 |
Overall size | mm | 6000*5747*5500(6000) | 7280*6000*6420(6920) | 10600*5600*7163 |
CNC system | SINUMERLK828D | SINUMERLK828D | SINUMERLK828D |
Item | Unit | GCV35060fs | GCV40060fs | GCV45060fs | GCV16090p | GCV20090p | GCV250110p | GCV25060fd | GCV35060fd | GCV40060fd |
Worktable diameter | mm | 3300 | 3600 | 4000 | 1250(1400) | 1600(1800) | 200(2250) | 2250 | 3300 | 3600 |
Max swing diameter | mm | 3500 | 4000 | 4500 | 1600 | 2000 | 2500 | 2500 | 3500 | 4000 |
Max. Turning diameter | mm | 3500 | 4000 | 4500 | 1600 | 2000 | 2500 | 2500 | 3500 | 4000 |
Max. Workpiece height | mm | 600 | 600 | 600 | 1200(1500) | 1600(1800) | 2000 | 600 | 600 | 600 |
Max. Loading weight | t | 30 | 30 | 30 | 6 | 8 | 10 | 10 | 30 | 30 |
Max. torque | Nm | 66000 | 66000 | 66000 | 13700 | 24000 | 25027 | 28000 | 66000 | 66000 |
Ram travel | mm | 600 | 600 | 600 | 900 | 900 | 1100 | left:700 right：620 | left：700 right：600 | left：700 right：600 |
Ram horizontal travel | mm | -3280 | -3530 | -3650 | -30~+950 | -30~+1250 | -30~+1450 | left：-80~-2080 right：-100~+1900 | left：-80~-2550 right：-100~+2400 | left：-80~-2550 right：-100~+2400 |
Ram section | mm | 240*240 | 240*240 | 240*240 | 200*200 | 220*220 | 240*240 | - | - | - |
Tools section | mm | 40*40(32*32) | 40*40(32*32) | 40*40(32*32) | 40*40 | 40*40 | 40*40 | 40*40 | 40*40 | 40*40 |
Turning feeding | mm/s | 0.01-40 | 0.01-40 | 0.01-40 | 0.01-50 | 0.01-50 | 0.01-40 | 0.01-40 | 0.01-40 | 0.01-40 |
Rapid speed | m/min | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
Table rotation speed | r/min | 1-60 | 0.5-60 | 0.4-60 | 1-280/1-312 | 1-170/1-254 | 1-120/1-180 | 1-120 | 1-60 | 1-60 |
Main drive | kw | AC60/84 | AC60/84 | AC60/84 | AC39/58 | AC60/84 | AC60/84 | AC60/84 | AC60/84 | AC60/84 |
(Con./30min) | (Con/30min) | (Con/30min) | (Con/30min) | (Con/30min) | (Con/30min) | (Con/30min) | (Con/30min) | (Con/30min) | ||
Horizontal motor | kw | 5.37 | 5.37 | 5.37 | 5.23 | 5.23 | 5.23 | 5.37 | 5.37 | 5.37 |
Vertical motor | kw | 5.37 | 5.37 | 5.37 | 5.23 | 5.23 | 5.23 | 5.37 | 5.37 | 5.37 |
Precision | IT6 | IT6 | IT6 | IT6 | IT6 | IT6 | IT6 | IT6 | IT6 | |
Workpiece surface motor | μm | Ra1.6 | Ra1.6 | Ra1.6 | Ra1.6 | Ra1.6 | Ra1.6 | Ra1.6 | Ra1.6 | Ra1.6 |
Overall size | mm | 11000*6000*5700 | 11500*6500*5700 | 13000*8700*6600 | 6000*5754*5500(6000) | 6490*6000*6420(6920) | 9000*5800*7163 | - | - | - |
Control system | SINUMERLK828D | SINUMERLK828D | SINUMERLK828D | SINUMERLK828D | SINUMERLK828D | SINUMERLK828D | SINUMERLK828D | SINUMERLK828D | SINUMERLK828D |

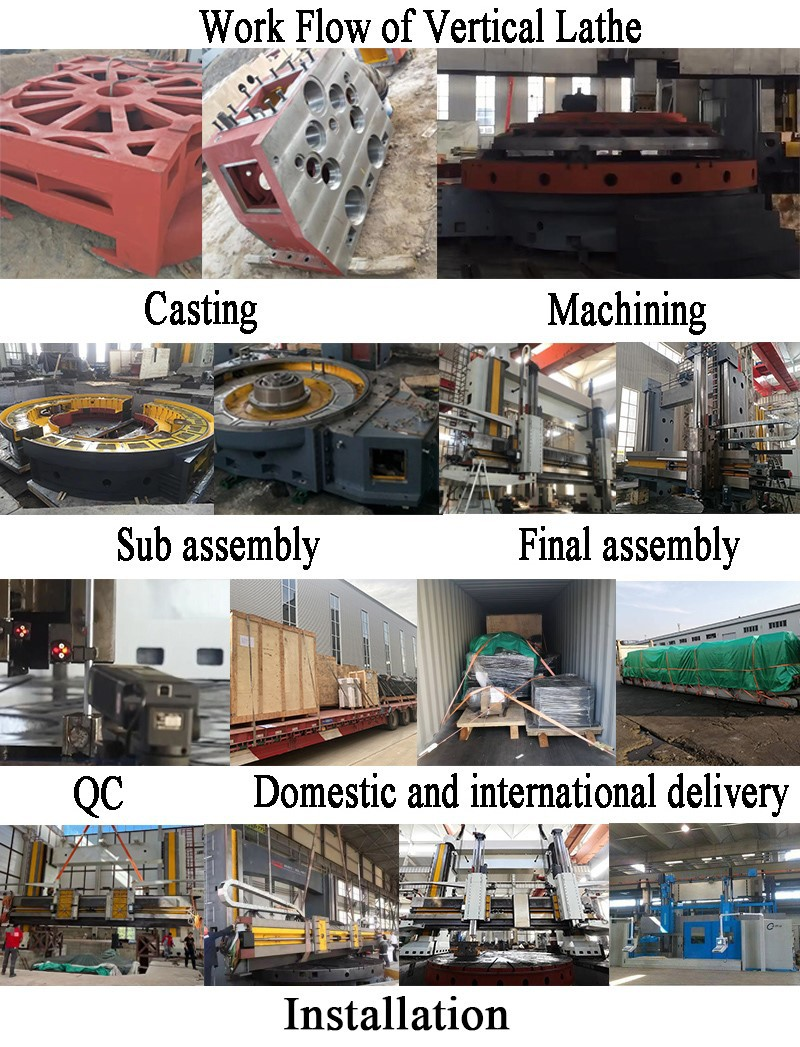

Work flow
